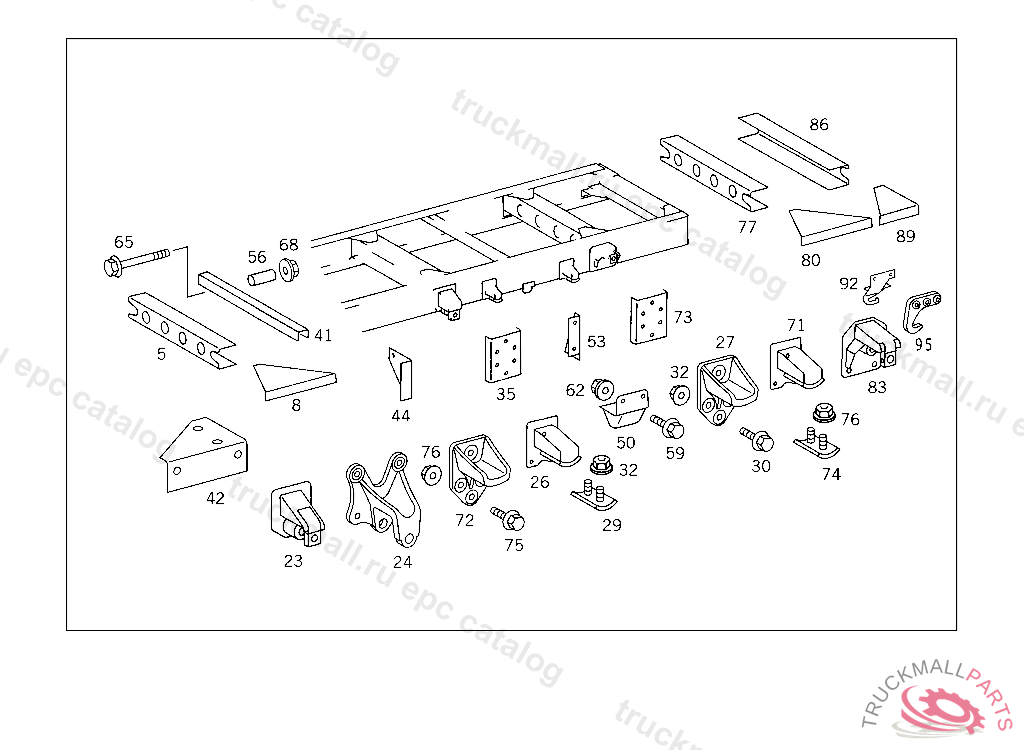

Поз.
Артикул
Описание
5
CROSS MEMBERNO.4
5
CROSS MEMBERNO.5,002447
8
ANGLE CROSS MEMBER TO SIDE MEMBERS
23
SPRING BRACKET FRONT
24
REAR SPRING BRACKET FRONT
41
CROSS MEMBERNO.6,001317
42
ANGLE RIGHT
42
ANGLE LEFT,001317
44
ANGLE RIGHT,001317
44
ANGLE LEFT
50
STOP REAR SPRING,001316
53
STIFFENING RIGHT,001317
53
STIFFENING LEFT,001316
56
SPACER TUBE (CROSS MEMBER),001316
56
SPACER TUBE (CROSS MEMBER),001317
59
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
62
NUT EXHAUST PIPE TO SIDE MEMBER
65
SCREW EXHAUST PIPE TO EXHAUST MANIFOLD
68
NUT BRACKET TO BEARING BRACKET
77
CROSS MEMBERNO.4
80
ANGLE CROSS MEMBER TO SIDE MEMBERS
83
REAR SPRING BRACKET REAR
86
CROSS MEMBER (REAR CROSS MEMBER)
89
ANGLE LEFT
89
ANGLE RIGHT
92
TOW HOOK
92
TOW HOOK ,001316
95
TOW HOOK
