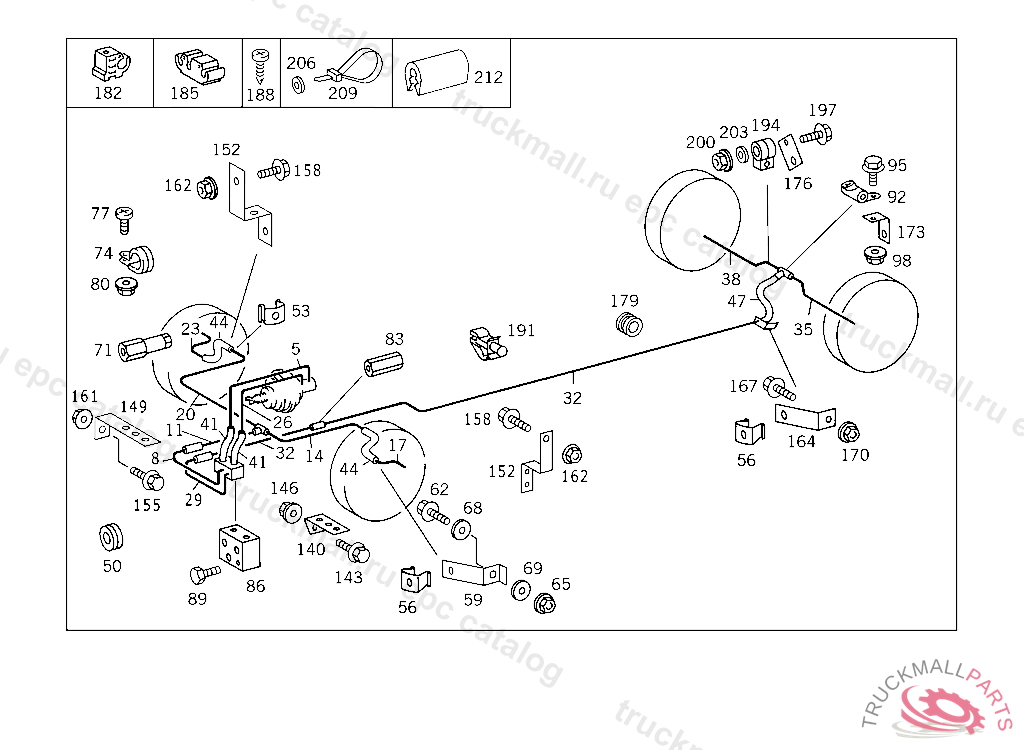

Поз.
Артикул
Описание
5
LINE FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR
8
LINE VALVE TO BRACKET
11
LINE FROM VALVE TO DISTRIBUTOR
14
LINE FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE
17
LINE FROM BRAKE HOSE TO LEFT FRONT WHEEL
17
LINE FROM BRAKE HOSE TO LEFT FRONT WHEEL
17
LINE , Replaced By: A6844205628
20
LINE FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE
23
LINE FROM BRAKE HOSE TO RIGHT FRONT WHEEL
23
LINE , Replaced By: A6844205728
23
LINE FROM BRAKE HOSE TO RIGHT FRONT WHEEL
26
LINE FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR
29
LINE VALVE TO BRACKET
32
LINE FROM CONNECTOR TO BRAKE HOSE
32
LINE FROM VALVE TO CONNECTION FITTING
35
LINE FROM DISTRIBUTOR TO REAR AXLE,LEFT
35
LINE , Replaced By: A6844205428
35
LINE FROM DISTRIBUTOR TO REAR AXLE,LEFT
38
LINE FROM DISTRIBUTOR TO REAR AXLE,RIGHT
38
LINE FROM DISTRIBUTOR TO REAR AXLE,RIGHT
38
LINE , Replaced By: A6844205528
41
BRAKE HOSE FROM DISTRIBUTOR TO BRACKET
41
BRAKE HOSE FROM DISTRIBUTOR TO BRACKET
44
BRAKE HOSE FRONT AXLE
44
BRAKE HOSE FRONT AXLE
47
BRAKE HOSE FRONT AND REAR AXLES
47
BRAKE HOSE FRONT AND REAR AXLES
47
BRAKE HOSE FRONT AND REAR AXLES
53
SPRING LINE MOUNTING
56
RETAINING SPRING BRAKE HOSE TO BRACKET
59
BRACKET LINE MOUNTING
62
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
65
NUT BRACKET TO BRACKET
68
WASHER BRACKET TO LEFT SIDE MEMBER
69
DISC SPRING CONSOLE TO FRAME AND TO AUXILIARY FRAME,RESP.
71
VALVE , Replaced By: A1214290134
71
VALVE , Replaced By: A1214290134
74
CLAMP LINE MOUNTING
77
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
80
NUT AT FILTER BRACKET
83
ADAPTER FITTING BETWEEN THE LINES
86
DISTRIBUTOR FRONT AXLE
89
HEXAGON HEAD BOLT , Replaced By: N000000002270
92
DISTRIBUTOR REAR AXLE
95
SCREW , Replaced By: N910105006023
98
NUT AT FILTER BRACKET
140
ANGLE BRACKET TO FRAME SIDE MEMBER
143
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
146
NUT BRACKET TO BRACKET
149
BRACKET AT SIDE MEMBER
152
BRACKET BRACKET TO CROSS MEMBER
155
SCREW , Replaced By: N910105010009
158
SCREW BATTERY MOUNTING
161
NUT EXHAUST PIPE TO SIDE MEMBER
162
NUT BRACKET TO BRACKET
164
BRACKET BRACKET TO LEFT SIDE MEMBER
167
SCREW EXHAUST PIPE TO SIDE MEMBER
170
NUT EXHAUST PIPE TO SIDE MEMBER
173
BRACKET BATTERY CABLE TO CONSOLE,LEFT
176
BRACKET BRACKET TO REAR AXLE
179
GROMMET. PROTECTIVE CAP AT SIDE MEMBER
182
CLAMP LINE MOUNTING
185
BRACKET BRAKE LINE TO FIRE WALL
188
SHEET METAL SCREW COVERING TO CAB
191
BRACKET , Replaced By: A6884287440
194
CLAMP BRAKE LINE TO SIDE MEMBER
197
SCREW AT FILTER BRACKET
200
NUT AT FILTER BRACKET
203
WASHER , Replaced By: N000125008443
206
WASHER , Replaced By: A3609902340
209
LOOM TIE LINE MOUNTING 280 MM
209
LOOM TIE LINE MOUNTING
212
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
