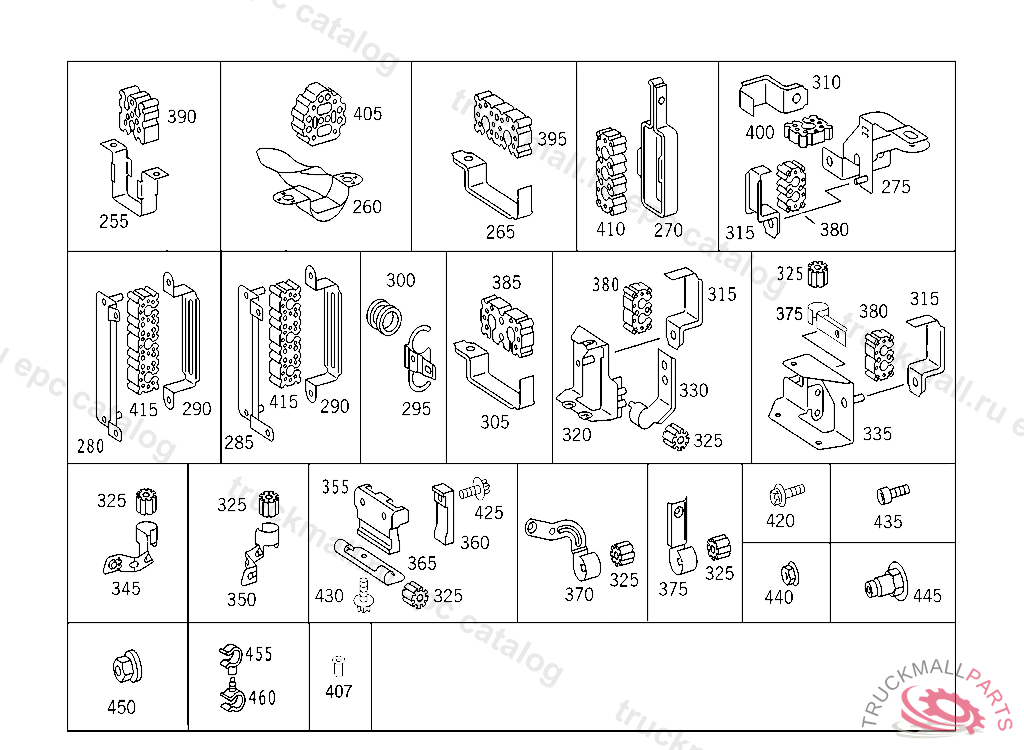

Поз.
Артикул
Описание
255
CLAMP LINE TO FRAME
260
CLAMP LINE TO TORSION BAR BEARING, FRONT LEFT
265
CLAMP LINE TO FRAME
270
CLAMP LINE TO SIDE MEMBER, FRONT LEFT
275
BRACKET LINE ATTACHMENT, A 37260220020901803
275
BRACKET LINE ATTACHMENT, A 26505420020930802
280
BRACKET MOUNTING, CABLE, REAR LEFT
285
BRACKET FASTENING, CABLE, REAR RIGHT
290
CLAMP FASTENING, CABLE, REAR RIGHT
295
BRACKET FASTENING, CABLE, REAR CENTER
300
GROMMET BATTERY CASE
305
CLAMP
310
CLAMP FASTENING, CABLES, REAR
315
FASTENING CLAMP FUEL LINE TO SIDE MEMBER
320
BRACKET FRONT LEFT
325
RUBBER RING SPRING STRUT LINE, FRONT RIGHT
330
CLAMP LINE ATTACHMENT
335
BRACKET LINE ATTACHMENT
345
BRACKET SPRING STRUT LINE, FRONT LEFT
350
BRACKET SPRING STRUT LINE, FRONT RIGHT
355
BRACKET LEFT SUSPENSION STRUT LINE
360
BRACKET RIGHT SUSPENSION STRUT LINE
365
CLAMP SUSPENSION STRUT LINE
370
CLAMP SUSPENSION STRUT LINE
375
CLAMP SUSPENSION STRUT LINE
380
RUBBER MOUNT FRONT LEFT
385
SPACER FASTENING, CABLE, REAR CENTER, TO BE ADAPTED DURING ASSEMBLY
390
DAMPING STRIP LINE TO FRAME
395
DAMPING STRIP LINE TO FRAME
400
RUBBER MOUNT FASTENING, CABLES, REAR, TO BE ADAPTED DURING ASSEMBLY
405
DAMPING STRIP LINE TO TORSION BAR BEARING, FRONT LEFT
407
RIVET NUT. RIVETED NUT CONNECTING PIPE TO CAB CROSS MEMBER
410
DAMPING STRIP FASTENING, GAS LINE
415
DAMPING STRIP MOUNTING, CABLE, REAR LEFT
420
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
425
HEXALOBULAR BOLT. SCREW CYLINDER HEAD COVER TO CYLINDER HEAD M 6X30
430
SCREW MOUNTING OF INSTRUMENT PANEL
435
SCREW SPRING STOP
440
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
445
HEXAGON NUT W COLLAR BRACKET MOUNTING
445
NUT COVERING TO CAB FIRE WALL
450
NUT COVERING TO CAB FIRE WALL
450
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
455
CLAMP BRAKE HOSE
460
CLAMP. EXTENDABLE SPACER BREATHER LINE
