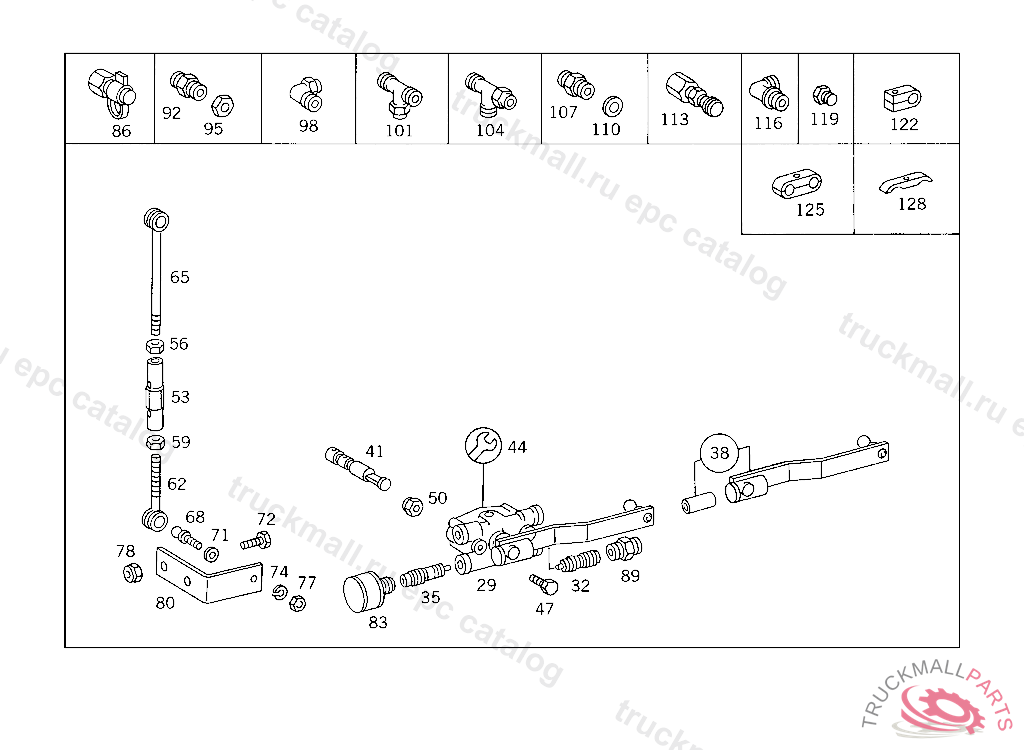

Поз.
Артикул
Описание
29
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
29
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
29
VALVE FRONT AXLE LEVEL ADJUSTMENT BOSCH
32
VALVE INTAKE
35
VALVE EXHAUST
38
LEVER (PARTS KIT)
41
SHAFT87 MM
44
REPAIR KIT
53
NUT FRONT AXLE LEVEL ADJUSTMENT
56
NUT ,B 884219
59
NUT , Replaced By: N304035008002
62
BALL SOCKET POWER CYLINDER TO LEVER
65
BALL SOCKET , Replaced By: A3073200189
65
BALL SOCKET LINK TO RIGHT SIDE MEMBER, NOT USED
65
ROD
68
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
72
SCREW , Replaced By: N304017008021
74
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
77
NUT , Replaced By: N304032008006
78
NUT STOP TO BATTERY CASE
80
BRACKET DELIVERY LINE TO CROSS MEMBER, PARTS TO BEORDERED FROM SUPPLIER,MESSRS F X MEILLER,MUNICH
98
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
107
FITTING LINE CONNECTION, Replaced By: N000000006446
110
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
128
PLATE LINE MOUNTING, SIMPLE PART-PLEASE HAVE SHOP MADE
128
PLATE LINE MOUNTING
