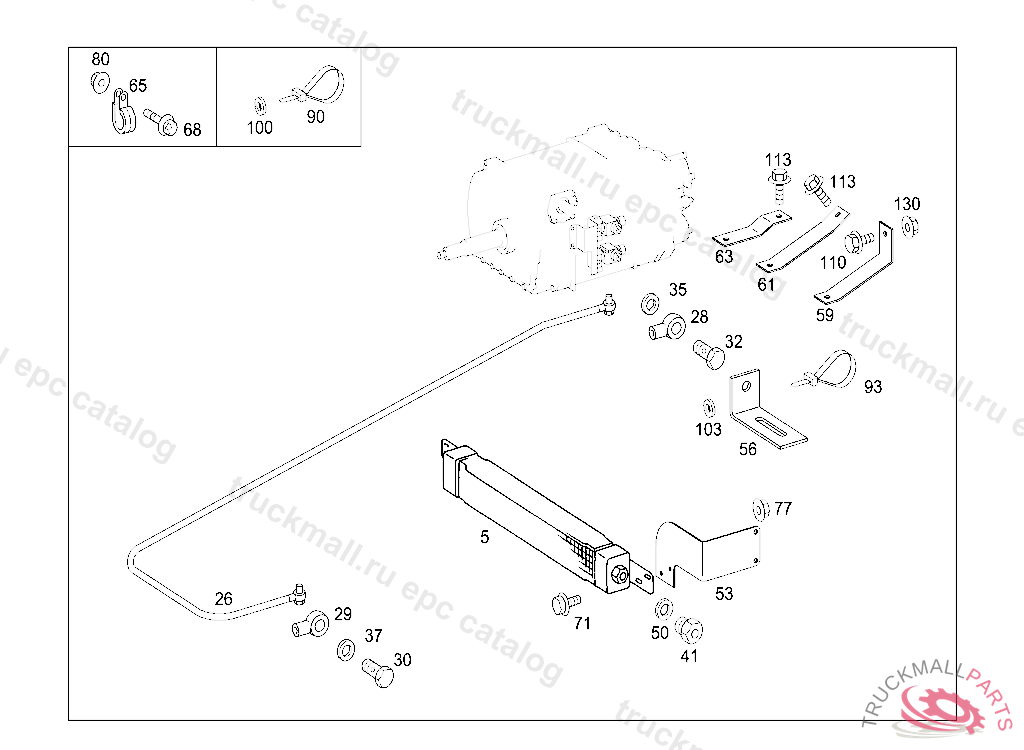

Поз.
Артикул
Описание
5
OIL COOLER (OIL COOLER)
5
OIL COOLER
26
26
28
BANJO UNION10/14
29
BANJO UNION HOSE WIDTH, / I.D., 10/16 MM
30
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
32
HOLLOW SCREW
32
HOLLOW SCREW
35
SEAL RING FUEL LINE TO FEED PUMP
37
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
41
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
53
53
56
BRACKET COOLING WATER LINE TO SUCTION PIPE
56
BRACKET BATTERY CABLE MOUNTING
59
61
63
65
CLAMP OIL DIPSTICK TO RADIATOR
68
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
68
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
71
SCREW , Replaced By: N910143008002
71
SCREW BRACKET TO CAB REAR PANEL M 8X20
77
NUT HORN TO BRACKET M8
80
NUT BRACKET TO FIRE WALL
90
LOOM TIE ELECTRIC CABLE MOUNTING
93
LOOM TIE LINE MOUNTING
100
WASHER BRACKET TO LEFT SIDE MEMBER
103
WASHER BRACKET TO LEFT SIDE MEMBER
110
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
110
SCREW , Replaced By: N910105010017
113
SCREWM 10X20
130
NUT HORN TO BRACKET M8
130
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
