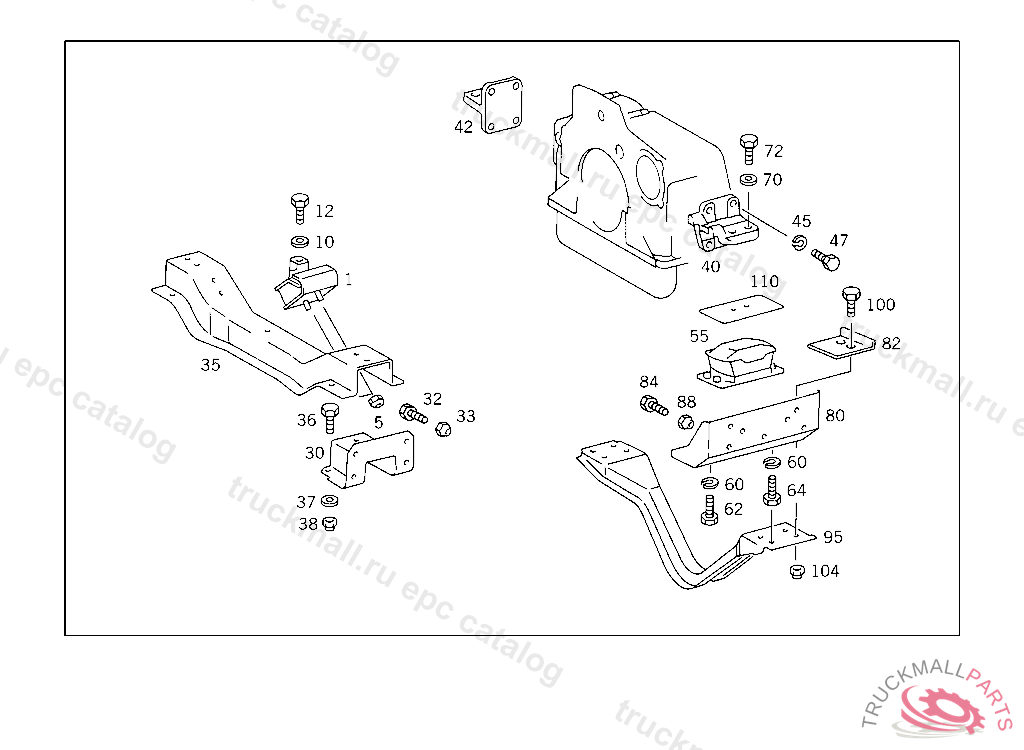

Поз.
Артикул
Описание
1
RUBBER MOUNTING FRONT
1
RUBBER MOUNTING , Replaced By: A6152400317
1
RUBBER MOUNTING , Replaced By: A6152400317
1
RUBBER MOUNTING , Replaced By: A6152400317
5
NUT SUPPORT TO SIDE MEMBER
10
WASHER CONSOLE TO FRAME
12
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
12
SCREW , Replaced By: N000961016097
12
SCREW , Replaced By: N308676016005
30
ENGINE STAY FRONT
32
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
32
SCREW , Replaced By: N308676012026
33
NUT SUPPORT TO SIDE MEMBER
35
ENGINE CROSS MEMBER FRONT
36
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
36
SCREW BRACKET TO LEFT SIDE MEMBER
36
SCREW , Replaced By: N308676012026
37
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
37
WASHER
38
NUT SUPPORT TO SIDE MEMBER
40
SUPPORTING ARM LEFT
42
SUPPORTING ARM CLUTCH END
45
LOCK WASHERROCKINGER TYP 59 G140,59 G150
47
SCREW CONNECTING PIPE
47
SCREW SUPPORTING ARM TO HOUSING M 16X35
47
SCREW , Replaced By: N304017016004
55
RUBBER MOUNTING , Replaced By: A3812401118
55
RUBBER MOUNTING , Replaced By: A3812401118
55
RUBBER MOUNTING CLUTCH END
55
RUBBER MOUNTING CLUTCH END
55
RUBBER MOUNTING CLUTCH END
55
RUBBER MOUNTING REAR
60
LOCK WASHER FITTING TO BRACKET
62
SCREW BRACKET TO LEFT SIDE MEMBER
64
SCREW BRACKET TO SIDE MEMBER M 12X38
70
WASHER CROSS MEMBER TO SUPPORT
72
SCREW SUPPORT TO SIDE MEMBER M 14X45
72
SCREW , Replaced By: N308676014012
80
SUPPORT , Replaced By: A3812400206
80
REINFORCEMENT , Replaced By: A3812400206
80
CONSOLE ENGINE LEFT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
82
CONSOLE ENGINE RIGHT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
82
SUPPORT , Replaced By: A3812400206
82
REINFORCEMENT , Replaced By: A3812400206
84
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
84
SCREW CONSOLE TO SIDE MEMBER
84
SCREW BRACKET TO FRAME M 12X35
88
NUT SUPPORT TO SIDE MEMBER
95
ENGINE SUPPORT REAR
95
ENGINE CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 4 358797, Replaced By: A3812400202
95
REINFORCEMENT , FIRST EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 4 358797, Replaced By: A3812400202
100
SCREW BRACKET TO CROSS MEMBER
104
NUT SUPPORT TO SIDE MEMBER
110
SCREENING PLATE REAR RUBBER MOUNTING
