Поз.
Артикул
Описание

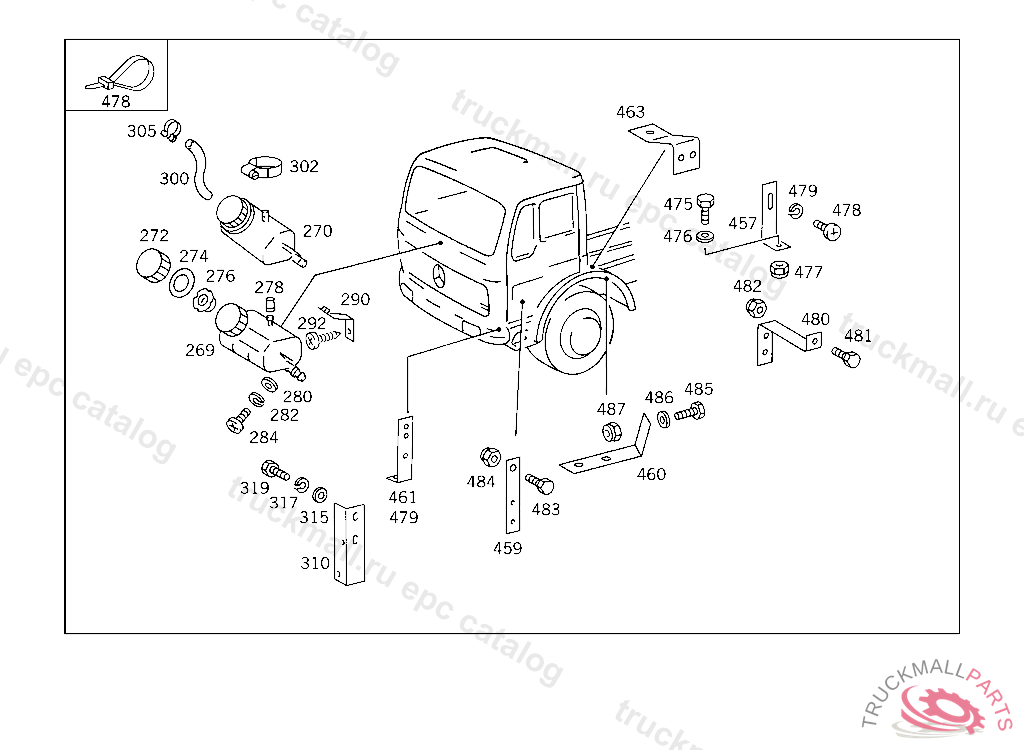

269
RESERVOIR RESERVOIR
270
RESERVOIR RESERVOIR, 415 5 014668 416 5 000515 417 4 972023
272
LOCKING CAP
272
LOCKING CAP ,4 238841 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002951915
274
SEAL RING
274
SEAL RING , Replaced By: A0009972940
276
STRAINER
276
STRAINER , Replaced By: A0004314334
278
CAP RESERVOIR DE-AERATION
278
VALVE , Replaced By: A0009885435
280
WASHER COMPRESSED AIR LINE TO BRACKET
280
WASHER , Replaced By: N009021006208
282
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
284
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
290
BRACKET RESERVOIR
290
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 452123, Replaced By: A3872900433
292
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
300
HOSE RESERVOIR DE-AERATION,4 238841 ORDER BY THE METER
302
CLAMP HOSE TO CAB,4 238841
305
CLIP HOSE TO CAB,4 238841
310
ANGLE WIPER MOTOR,4 257007
315
WASHER COMPRESSED AIR LINE TO BRACKET
315
WASHER , Replaced By: N009021006208
317
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
319
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
457
BRACKET OIL LINE MOUNTING
457
BRACKET , Replaced By: A3464296040
459
BRACKET HEATING WATER LINE
459
BRACKET , Replaced By: A3124761535
460
BRACKET HIGH PRESSURE HOSE
460
BRACKET HIGH PRESSURE HOSE
461
BRACKET HYDRAULIC LINE UNDER COUPLING MOUTH CROSS MEMBER,4 653180
463
BRACKET CLUTCH HOSE WITH FENDER BRACKET TO FRAME,4 276783
475
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
475
SCREW , Replaced By: N308676012012
475
SCREW END PIECE TO EXHAUST PIPE M 10X25
475
SCREW PIPE CLAMP
475
SCREW PIPE CLAMP
475
SCREW , Replaced By: N304017008021
476
WASHER VIBRATION ABSORBER TO BRACKET
476
WASHER , Replaced By: N000433010510
477
NUT SUPPORT TO SIDE MEMBER
477
NUT STRAP TO BRACKET
477
NUT , Replaced By: N910113010000
477
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
477
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
477
NUT , Replaced By: N913004008001
478
LOOM TIE LINE MOUNTING
479
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
479
BRACKET , Replaced By: A3604292940
483
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
483
SCREW , Replaced By: N304017008016
484
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
484
NUT , Replaced By: N913004008001
485
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
485
SCREW , Replaced By: N304017008016
486
WASHER EXHAUST MUFFLER TO STRAP
486
WASHER , Replaced By: N000125008443
487
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
487
NUT , Replaced By: N913004008001
999
BOOT
999
BOOTTO 001 295 30 06
999
ROD OVER-CENTER ACTING SPRING
999
ROD OVER-CENTER ACTING SPRING
999
PIN PUSH ROD TO PEDAL
999
BRACKET OIL LINE MOUNTING
999
BRACKET WITH FRONT BRAKE HOSE BRACKET TO SIDE MEMBER,4 276784
999
BRACKET , Replaced By: A3464296040
999
BRACKET LINE TO ENGINE FRONT CROSS MEMBER
999
BRACKET LINE TO ENGINE REAR CROSS MEMBER,4 276783
999
BRACKET BRACKET TO CAB FLOOR,4 655107
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER BELL HOUSING TO TRANSMISSION
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
