Поз.
Артикул
Описание

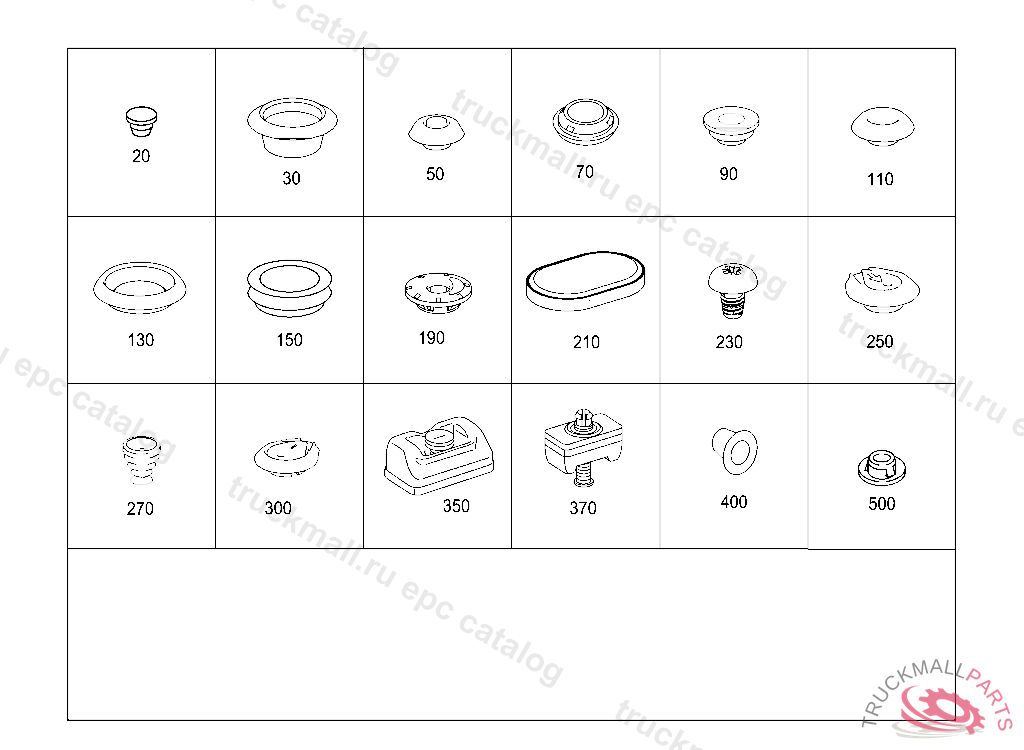

20
PLUG
30
PLUG TO PLUG THE PAINT RUN-OFF HOLES IN REAR END FLOOR
50
PLUG TO PLUG THE PAINT RUN-OFF HOLES IN REAR END FLOOR
50
PLUG TO BODY 10 MM, J 78221020091022
50
STOP PLUG TOP CENTER 11 MM
50
STOP PLUG BATTERY CASE 6.5 MM
70
STOP PLUG E-RECESS CENTER 30 MM
70
STOP PLUG SIDE PANEL,LEFT
70
STOP PLUG CROSS MEMBER 20 MM
70
STOP PLUG PAINT RUN-OFF HOLE IN MAIN FLOOR, A 01232520070831
70
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
70
PLUG REAR END FLOOR,LEFT 25 MM, A 01232520070831
70
PLUG REAR RIGHT 40 MM
70
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
90
EXPANSION PLUG IN FLOOR,FRONT
90
EXPANSION PLUG LOCATING HOLE, IN FIREWALL CROSSMEMBER 15.5 MM
110
STOP PLUG SIDE MEMBER,FRONT 25 MM
110
STOP PLUG ROCKER PANEL LEFT REAR 20 MM
130
EXPANSION PLUG IN FLOOR BELOW REAR SEAT BENCH
150
EXPANSION PLUG SPARE WHEEL WELL 38 MM
150
STOP PLUG PAINT RUN-OFF HOLE IN MAIN FLOOR, A 01232520070831
190
EXPANSION PLUG SIDE MEMBER,TOP 45 MM
210
PLUG IN CROSS MEMBER REAR BODY PANEL 42 X 25 MM
230
STOP PLUG SIDE MEMBER,REAR M8
250
BUTTON GROMMET AT SIDE MEMBER 20 MM
270
GROMMET BELOW EQUIPMENT COMPARTMENT
300
BUTTONABLE GROMMET ROCKER PANEL AT CENTER LEFT
350
TAKE-UP DEVICE JACK TAKE-UP DEVICE
370
STOP PLUG JACK TAKE-UP DEVICE
400
GROMMET IN SIDE MEMBER 12X6,1
500
PLUG TO PLUG THE PAINT RUN-OFF HOLES IN REAR END FLOOR
