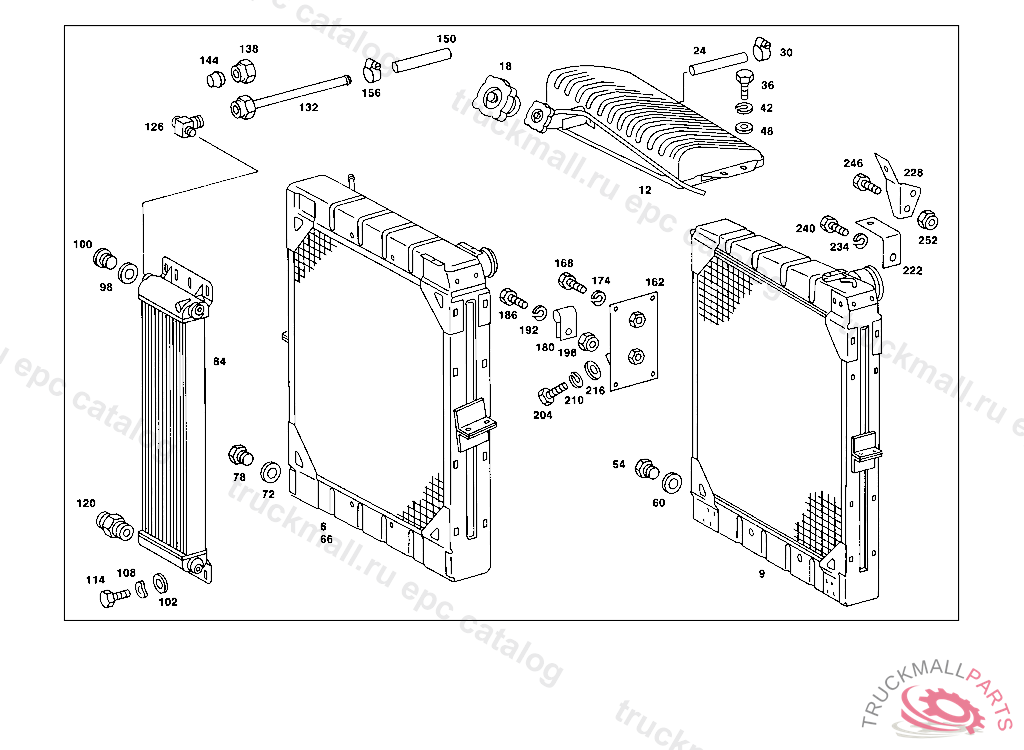

Поз.
Артикул
Описание
6
RADIATOR LESS TANK
9
RADIATOR
9
RADIATOR
9
RADIATOR , Replaced By: A0005014601
9
RADIATOR , Replaced By: A0005014601
9
RADIATOR , Replaced By: A0005014601
12
TANK ON RADIATOR
18
RADIATOR CAP FILLER NECK
18
RADIATOR CAP FILLER NECK
24
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
30
CLAMP , Replaced By: N916017011000
30
CLAMP , Replaced By: N916017011001
30
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
36
SCREW , Replaced By: N304017008016
36
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
42
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
48
WASHER , Replaced By: N000125008443
48
WASHER EXHAUST MUFFLER TO STRAP
54
SCREW PLUG , Replaced By: N007604014101
54
SCREW PLUG WATER DRAIN
60
SEAL RING FUEL LINE TO FEED PUMP
66
RADIATOR LESS TANK
66
RADIATOR , Replaced By: A3875002903
72
SEAL RING FUEL LINE TO FEED PUMP
78
SCREW PLUG WATER DRAIN
84
RADIATOR OIL,5 360280
84
RADIATOR ,4 706542
84
RADIATOR OIL,5 360279
98
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
100
SCREW PLUG , Replaced By: N000908026008
100
SCREW PLUG , Replaced By: A0009973532
100
SCREW PLUG OIL COOLER,5 360280
102
WASHER BRACKET TO LEFT SIDE MEMBER
102
WASHER , Replaced By: N000125008443
102
WASHER EXHAUST MUFFLER TO STRAP
102
WASHER , Replaced By: N009021008213
108
SPRING WASHER SHIFTING CYLINDER TO YOKE
114
SCREW , Replaced By: N304017008039
114
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
114
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
114
SCREW , Replaced By: N304017008016
120
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
126
ELBOW FITTING SUCTION LINE TO OIL PUMP
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571166
132
PIPE SUCTION LINE 1360 MM
132
PIPE , Replaced By: A3952571066
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571160
132
OIL PIPE , Replaced By: A3872571166
132
OIL PIPE , Replaced By: A3872571166
138
NUT LINE CONNECTION
138
UNION NUT LINE CONNECTION, Replaced By: N000000006243
144
GLAND , Replaced By: A0019901267
144
SEAL CONE LINE CONNECTION
150
HOSE BETWEEN THE LINES
156
CLAMP25-40X13 MM
156
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
162
BRACKET OIL LINE
168
SCREW COVER PLATE TO BRACKET
174
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
180
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
180
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
186
SCREW LICENSE PLATE TO BRACKET
186
SCREW , Replaced By: N304017006020
186
SCREW COVER PLATE TO BRACKET
192
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
198
NUT PUMP TO BRACKET
198
NUT , Replaced By: N913004006001
204
SCREW COVER PLATE TO BRACKET
210
WASHER COMPRESSED AIR LINE TO BRACKET
210
WASHER , Replaced By: N009021006208
216
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
222
BRACKET LINE MOUNTING
228
BRACKET RADIATOR
234
LOCK WASHERROCKINGER TYP 59 G140,59 G150
240
SCREW , Replaced By: N000933016082
240
SCREW BRACKET TO ENGINE
246
SCREW END PIECE TO EXHAUST PIPE M 10X25
252
NUT STRAP TO BRACKET
252
NUT , Replaced By: N910113010000
999
SCREW PLUG , Replaced By: N000908014009
999
SCREW PLUGTO 000 553 03 05,000 553 18 05,
999
SEAL RING
