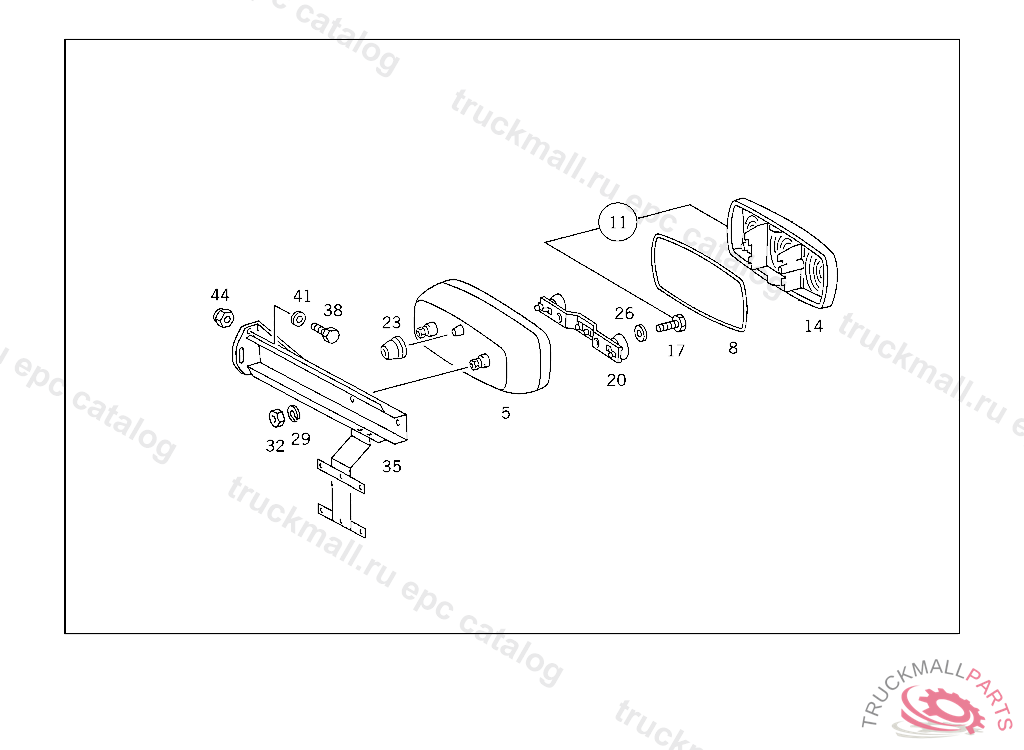

Поз.
Артикул
Описание
5
TAIL LAMP RIGHT MAGDALUX,A 058185 ONLY REPLACEABLE BY PAIRS
5
TAIL LAMP LEFT MAGDALUX,A 058185 ONLY REPLACEABLE BY PAIRS
8
GASKETR & S,4 300928
11
LENS WITH SCREWS
14
LENS , Replaced By: A0015445990
17
STUD TAIL LAMP TO BRACKET
20
BRACKET
23
GROMMET
26
WASHER ,4 300928
26
WASHER ,4 300928
29
LOCK WASHER TAIL LAMP TO BRACKET
32
NUT , Replaced By: N304032008006
35
BRACKET RIGHT
35
BRACKET LEFT TAIL LAMP
38
SCREW BRACKET TO SIDE MEMBER
41
WASHER
44
NUT BRACKET TO BATTERY CASE
999
BRACKET LEFT TAIL LAMP, NOT USED
