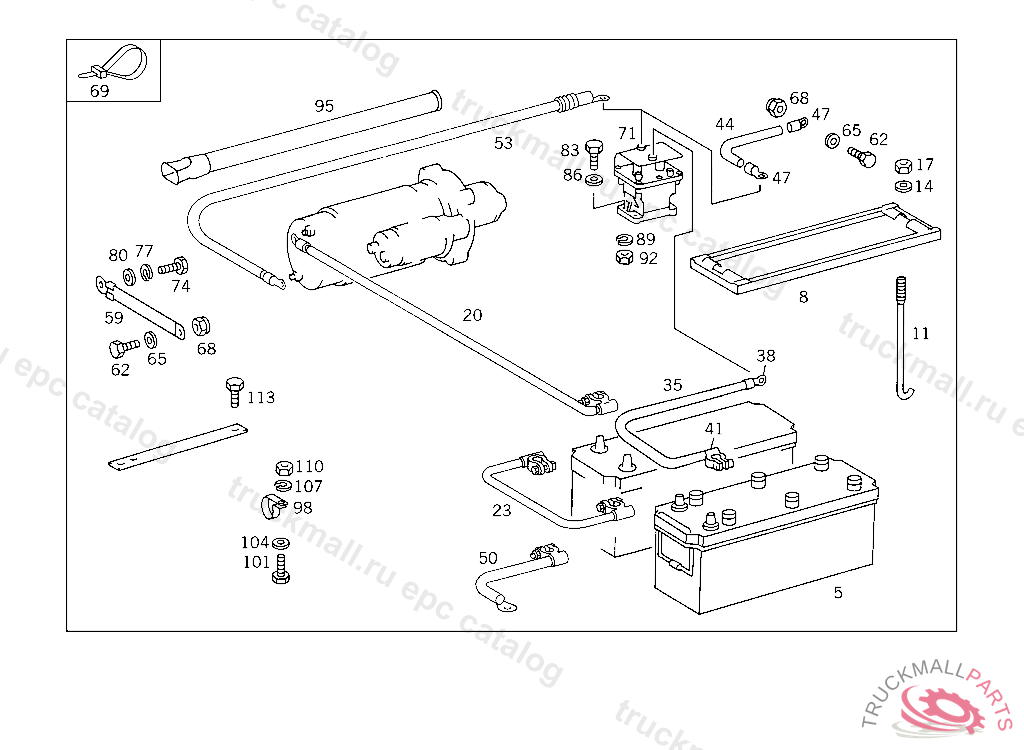

Поз.
Артикул
Описание
8
MOUNTING FRAME BATTERY MOUNTING
11
CLAMPING SCREW BATTERY MOUNTING
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
NUT CLAMP TO BRACKET
20
ELECTRIC CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013100
23
POSITIVE CABLE FROM BATTERY I TO BATTERY II
35
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
35
ELECTRIC CABLE , Replaced By: A6735460013
35
ELECTRIC CABLE , Replaced By: N922002070000
35
NEG. CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013100
38
CABLE SHOE BATTERY CABLE 10-70 MM
41
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
44
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
44
ELECTRIC CABLE , Replaced By: A6735460013
44
ELECTRIC CABLE , Replaced By: N922002070000
44
NEG. CABLE , Replaced By: N072551070880, +002N046234010007
47
CABLE SHOE BATTERY MASTER SWITCH
50
NEG. CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013200
59
GROUND STRAP AT LEFT SIDE MEMBER
62
SCREW , Replaced By: N910105010011
62
SCREW REAR EXHAUST PIPE TO MUFFLER
62
SCREW END PIECE TO EXHAUST PIPE M 10X25
65
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
68
NUT EXHAUST PIPE TO SIDE MEMBER
68
NUT , Replaced By: N910113010000
71
SWITCH ELECTRO-MAGNETIC
74
SCREW GROUND STRAP TO ENGINE
74
SCREW GROUND STRAP TO ENGINE
77
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
80
WASHER , Replaced By: N000125015019
83
SCREW BRACKET TO FRAME SIDE MEMBER M 8X75
86
WASHER , Replaced By: N009021008213
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
92
NUT , Replaced By: N304032008006
95
PROTECTIVE TUBE FLEXIBLE SHAFT 4000 MM, UP TO CHASSIS 022725 EXCEPT FOR SEE FOOTN.67,ALSO INSTALLED ON 022728,022734,022744,022746,022749,022752
95
PROTECTIVE TUBE , Replaced By: A3055460385
98
CLAMP SUCTION LINE
101
SCREW COVER PLATE TO BRACKET
999
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
