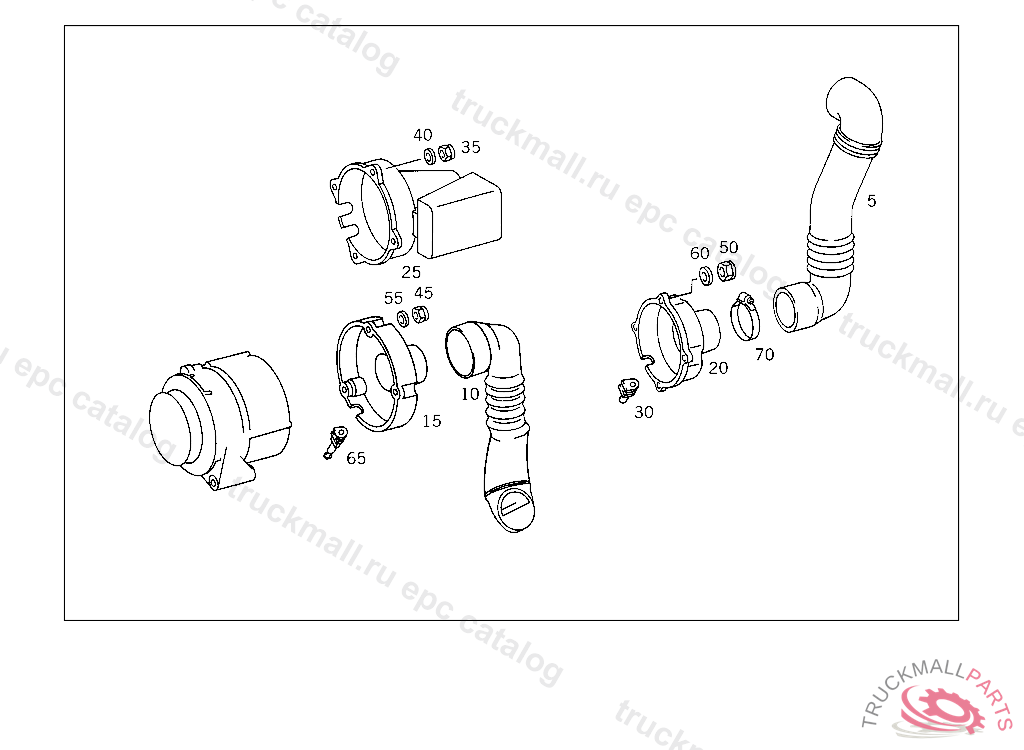

Поз.
Артикул
Описание
5
PIPE LINE AIR INTAKE HOSE
10
PIPE LINE AIR INTAKE HOSE
15
COVER
15
AIR INTAKE PIPE AIR INTAKE TO ALTERNATOR
15
AIR INTAKE PIPE (AIR INTAKE PIPE SOCKET),160926,404-002101
20
AIR INTAKE PIPE (AIR INTAKE PIPE SOCKET)
20
AIR INTAKE PIPE (AIR INTAKE PIPE SOCKET),160927,404-002102
25
AIR INTAKE PIPE (AIR INTAKE PIPE SOCKET),160927,404-002102
25
TUBE
25
TUBE (AIR INTAKE HOSE)
25
TUBE (AIR INTAKE HOSE)
30
GASKET
35
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
35
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
35
NUT , Replaced By: N913023006001
35
NUT RELAY TO BRACKET M5
40
WASHER , Replaced By: N000433005304
40
WASHER BOOT TO CAB FLOOR
45
NUT TWO-WAY VALVE TO BRACKET
50
NUT , Replaced By: N913004006001
50
NUT PUMP TO BRACKET
55
WASHER BOOT TO CAB FLOOR
55
WASHER , Replaced By: N000433005304
60
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
GROMMET
70
CLAMP , Replaced By: N000000000673
70
CLAMP HOSE TO RETARDER 60-80X13 MM
999
PIPE LINE , Replaced By: A4031540277
999
PIPE LINE , Replaced By: A4031540177
