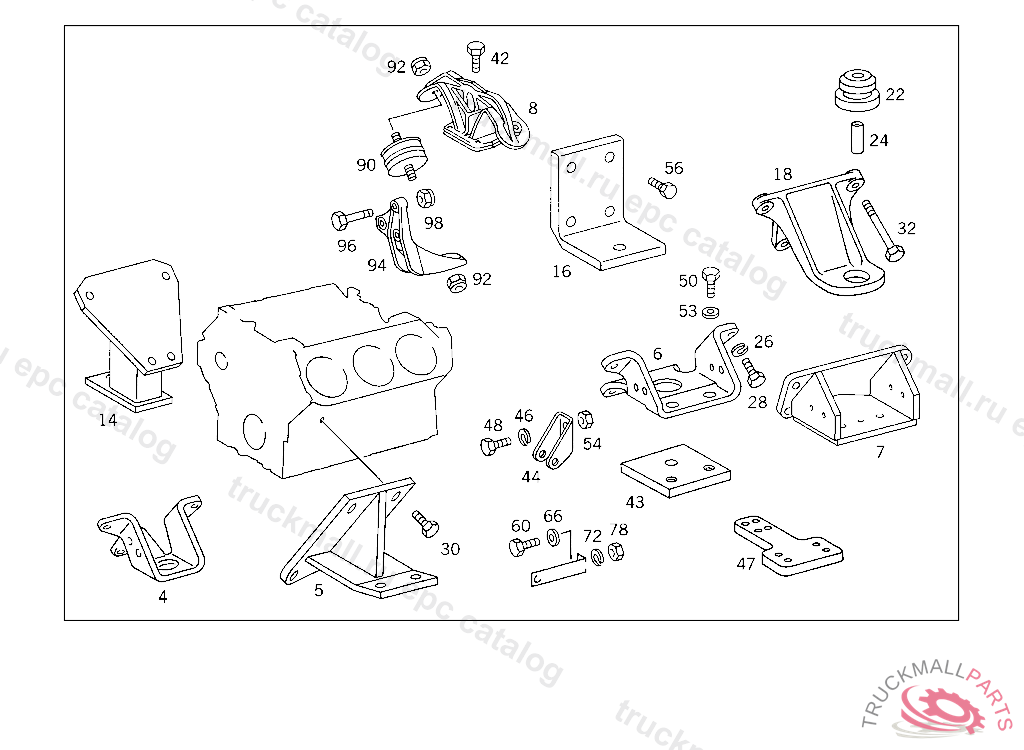

Поз.
Артикул
Описание
4
ENGINE SUPPORT FRONT, INTRODUCE IMMEDIATELY FOR COUNTRIES WITH POOR ROADS
4
ENGINE SUPPORT FRONT
4
ENGINE SUPPORT , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 924154, Replaced By: A4412231101
5
ENGINE SUPPORT , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 922585, Replaced By: A4442230201
5
ENGINE SUPPORT FRONT
5
ENGINE SUPPORT FRONT
6
ENGINE SUPPORT FRONT
6
ENGINE SUPPORT FRONT
6
ENGINE SUPPORT FRONT,002696
6
ENGINE SUPPORT FRONT, NOT USED
6
ENGINE SUPPORT FRONT
6
ENGINE SUPPORT ENGINE FRONT SUSPENSION, TO BE ADAPTED DURING ASSEMBLY
6
ENGINE SUPPORT FRONT
6
ENGINE SUPPORT FRONT,002697
6
ENGINE SUPPORT , Replaced By: A4222230501
6
ENGINE SUPPORT , Replaced By: A4032231101
6
ENGINE SUPPORT , Replaced By: A4032231101
6
ENGINE SUPPORT , Replaced By: A4032231201
6
ENGINE SUPPORT , Replaced By: A4412231001
6
ENGINE SUPPORT FRONT
6
ENGINE SUPPORT
6
ENGINE SUPPORT FRONT
6
ENGINE SUPPORT FRONT LEFT
6
ENGINE SUPPORT FRONT
6
ENGINE SUPPORT FRONT
7
ENGINE SUPPORT FRONT
8
ENGINE SUPPORT FRONT
14
ENGINE SUPPORT FRONT RIGHT
14
ENGINE SUPPORT FRONT
16
MOUNTING ANGLE , Replaced By: A3522230305
18
ENGINE SUPPORT FRONT
18
ENGINE SUPPORT FRONT
22
RUBBER MOUNTING
22
RUBBER MOUNTING
24
SPACER TUBE
26
LOCK WASHER FITTING TO BRACKET
28
SCREW
28
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE M 12X25, N 001923 P 236565
28
SCREW ENGINE SUPPORT TO CYLINDER CRANKCASE
28
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME
30
SCREW END PIECE TO EXHAUST PIPE M 12X30
32
HEXAGON HEAD BOLT TRAY AT TRANSMISSION M12X45
32
SCREW ENGINE SUPPORT TO CYLINDER CRANKCASE
42
SCREW END PIECE TO EXHAUST PIPE M 12X30
43
PLATE ENGINE FRONT SUSPENSION
44
BRACKET ENGINE SHOCK ABSORBER
46
LOCK WASHER FITTING TO BRACKET
47
PLATE ENGINE FRONT SUSPENSION
48
SCREW END PIECE TO EXHAUST PIPE M 12X30
50
SCREW SHACKLE TO CONSOLE
53
WASHER BRACKET TO FRAME
53
WASHER , Replaced By: N000125017016
54
NUT ANGLE TO FRAME
56
SCREW , Replaced By: N304017016004
56
SCREW SUPPORTING ARM TO HOUSING M 16X35
60
SCREW BRACKET TO CROSS CONNECTION STRUT
60
SCREW , Replaced By: N304017008034
66
WASHER , Replaced By: N000125008443
66
WASHER EXHAUST MUFFLER TO STRAP
72
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
78
NUT , Replaced By: N304032008006
78
NUT
90
RUBBER MOUNTING ENGINE SHOCK ABSORBER, UP TO IDENT NO.004702 EXCEPT FOR 004316,004586,004634,004640,004650,004662,004673
92
NUT , Replaced By: N910113014000
92
NUT STEERING SUPPORT TO FRAME
94
BEARING BRACKET LEFT, UP TO IDENT NO.004702 EXCEPT FOR 004316,004586,004634,004640,004650,004662,004673
94
BEARING BRACKET RIGHT, UP TO IDENT NO.004702 EXCEPT FOR 004316,004586,004634,004640,004650,004662,004673
96
SCREW MOUNTING TO SIDE MEMBER M 14X85
98
NUT STEERING SUPPORT TO FRAME
98
NUT , Replaced By: N910113014000
999
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
999
SCREW RELEASE LEVER TO SHAFT
999
ENGINE SUPPORT FRONT
999
SIDE MEMBER
999
SIDE MEMBER , TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
PLATE
999
ENGINE SUPPORT
999
BRACKET BREATHER PIPE,702492
999
SCREW PROPELLER SHAFT TO TRANSMISSION
