Поз.
Артикул
Описание

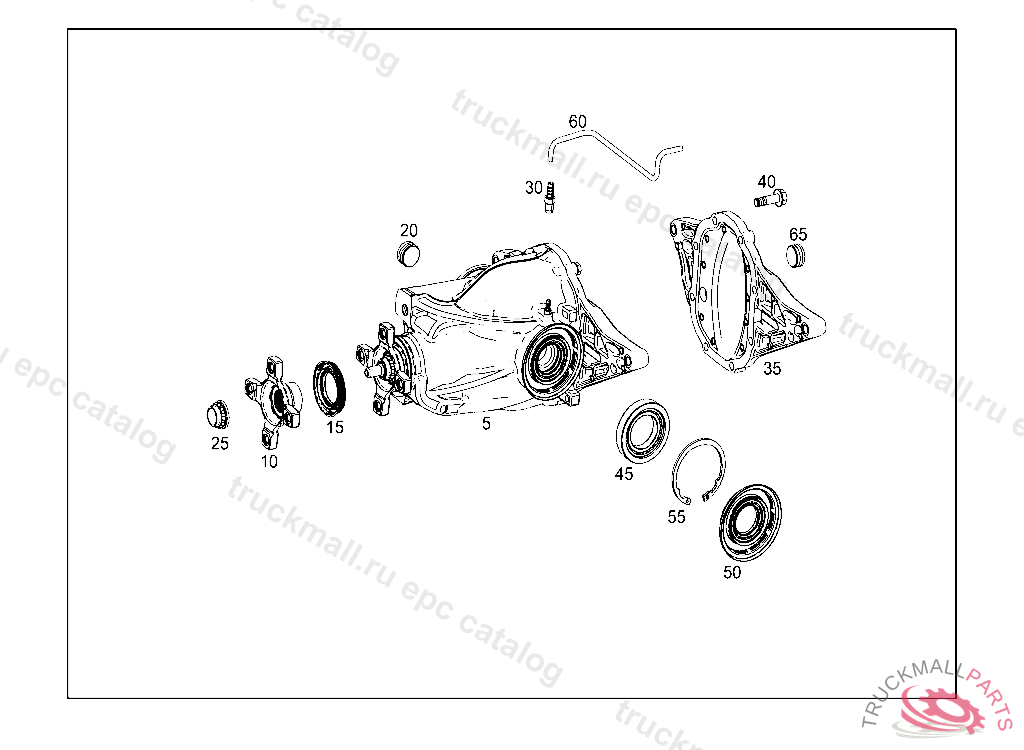

5
REAR AXLE DIFFERENTIALI3,27
5
REAR AXLE DIFFERENTIALI3,47
5
REAR AXLE DIFFERENTIALI2,93
10
COUPLING FLANGE
10
COUPLING FLANGE
15
SEAL RING FLANGE
20
SCREW PLUG
25
NUT
30
BREATHER
35
CLOSING COVER
40
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
45
BALL BEARING LEFT AND RIGHT
50
SEAL RING LEFT AND RIGHT AXLE SHAFT, IMPORTANT: SEALING RING AND PROTECTIVE RING MUST ALWAYS BE EXCHANGED TOGETHER!
55
FUSE AS REQUIRED 3.60 MM
60
VENTILATION PIPE TO REAR AXLE GEAR
65
SCREW PLUG BELL HOUSING
999
HEXAGON HEAD BOLT AT BEARING BRACKET M12X1,5X106
