Поз.
Артикул
Описание
5

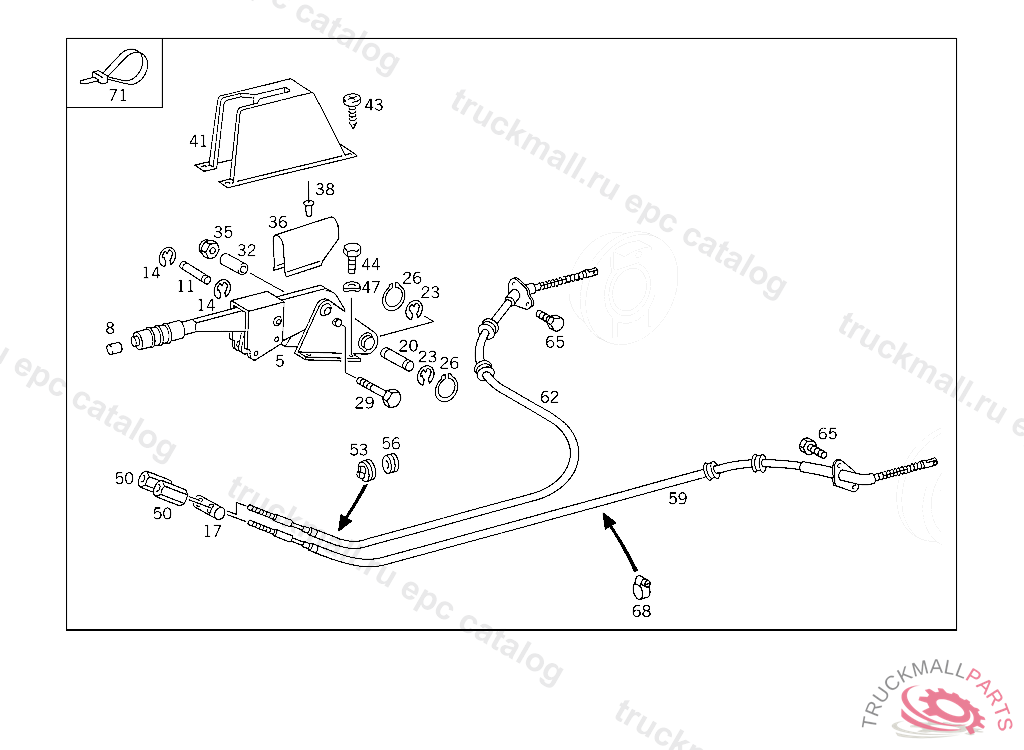

PARKING BRAKE
8
KNOB
11
PIN
11
PIN , Replaced By: A4614270074
14
LOCK PLATE RELEASE LEVER TO SHAFT
17
PIN , Replaced By: A4614270174
17
PIN
20
PIN
20
PIN , Replaced By: A4614270274
23
LOCK PLATE INTERMEDIATE BEARING
26
LOCK RING BEARING BRACKET,4 972621
29
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
29
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
32
SPACER TUBE
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
NUT , Replaced By: N913004008001
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
36
COVERING
38
RIVET
41
COVERING PARKING BRAKE
43
SHEET METAL SCREW BRACKET TO FLOOR PLATE
43
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
44
SCREW BRACKET TO VENTILATION CASE
47
SPRING WASHER LICENSE PLATE TO BRACKET
50
NUT BRAKE CABLE TO HAND BRAKE LEVER
53
GROMMET CABLE THRU VEHICLE FLOOR
56
GROMMET ,D 314239
56
GROMMET BRAKE CABLE PASSAGE IN CONSOLE
59
BRAKE CABLE RIGHT DB,1710 MM
59
WIRE CABLE LEFT,ON LEFT BRAKE DB,1710 MM, FROM AXLE NO. K005108
62
BRAKE CABLE RIGHT DB,1960 MM, FROM AXLE K 005108
62
BRAKE CABLE RIGHT DB,1960 MM
65
SCREW , Replaced By: N304017008016
65
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
CLAMP , Replaced By: N000000000671
68
CLAMP
71
LOOM TIE LINE MOUNTING 280 MM
