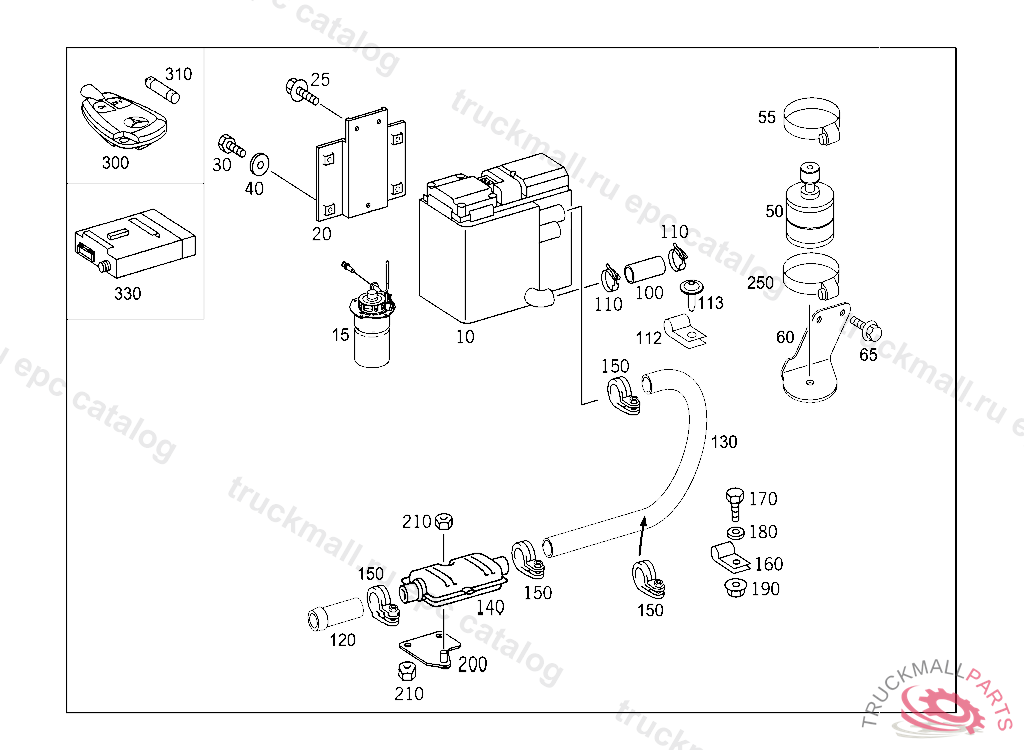

Поз.
Артикул
Описание
10
HEATING UNIT ADDITIONAL HEATER, X 20407720121031
15
BURNER INSET HEATING
20
BRACKET HEATER UNIT, X 20407720121031
25
BOLT MOUNTING HEATER UNIT TO BRACKET, X 20407720121031
30
SCREW PUMP TO BRACKET
40
WASHER LINE MOUNTING
50
FILTER FILTER
55
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
60
BRACKET , X 20407820121031
65
BOLT MOUNTING HEATER UNIT TO BRACKET, X 20407720121031
100
HOSE AT HEATER, ORDER BY THE METER
110
CLAMP HOSE ATTACHMENT 23/12 MM
112
CLAMP HOSE TO FLANGE AND TO VALVE
113
BOLT MOUNTING HEATER UNIT TO BRACKET, X 20407720121031
120
HOSE EXHAUST PIPE TO MUFFLER 1380 MM, ORDER BY THE METER
130
EXHAUST PIPE EXHAUST GUIDE FROM HEATER
130
FRONT EXHAUST PIPE
140
MUFFLER
150
CLAMP EXHAUST PIPE
160
CLAMP HOSE TO FLANGE AND TO VALVE
160
CLAMP HOSE TO COOLING WATER PIPE
170
SCREW PUMP TO BRACKET
180
WASHER COMPRESSED AIR LINE TO BRACKET
180
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
190
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
200
BRACKET MUFFLER TO WHEELHOUSE
210
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
250
CLAMP FUEL TANK MBN 10272-A-40-55X9-SW7-W3
300
TRANSMITTER INDEPENDENT HEATING, A 74932420041029805 E 02000020070101805
310
BATTERYIEC 86-MN 21
330
RECEIVER INDEPENDENT HEATING, F 67877420050114805
