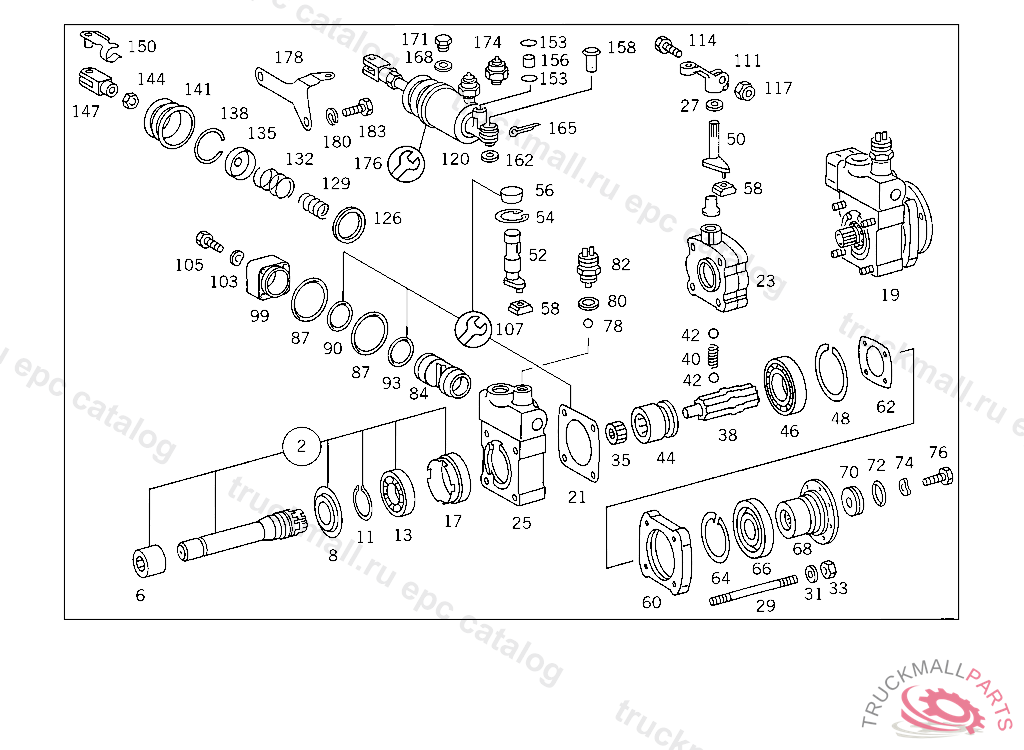

Поз.
Артикул
Описание
2
CONNECTG.PARTS,DELY.RANGE P.T.O.
2
CONNECTG.PARTS,DELY.RANGE P.T.O.
2
DRIVE SHAFT P.T.O.
2
CONNECTG.PARTS,DELY.RANGE P.T.O.
2
CONNECTG.PARTS,DELY.RANGE P.T.O.
2
CONNECTG.PARTS,DELY.RANGE P.T.O.
2
CONNECTG.PARTS,DELY.RANGE P.T.O.
2
CONNECTG.PARTS,DELY.RANGE P.T.O.
2
CONNECTG.PARTS,DELY.RANGE , Replaced By: A0002606305, +001A0002640357
2
CONNECTG.PARTS,DELY.RANGE , Replaced By: A9702600078
2
CONNECTG.PARTS,DELY.RANGE , Replaced By: A0002609405
2
CONNECTG.PARTS,DELY.RANGE , Replaced By: A9702600120
6
SLIDING COLLAR
8
LOCKING CAP COVERING,019226
8
LOCKING CAP CONNECTING PARTS
11
LOCK RING AS REQUIRED 3.00 MM,019226
11
LOCK RING AS REQUIRED 45X2.5 MM
11
LOCK RING SHAFT TO TRANSMISSION CASE
11
LOCK RING DRIVE GEAR
11
LOCK AS REQUIRED 2.00 MM
11
LOCK , Replaced By: N000471045000
11
LOCK , Replaced By: N900055045302
11
LOCK , Replaced By: N900055045301
13
GROOVED BALL BEARING (INTERMEDIATE SPINDLE)
13
CYLINDR. ROLLER BEARING DRIVE GEAR
13
GROOVED BALL BEARING CONNECTING PARTS
17
BUSHING SHAFT TO TRANSMISSION CASE
17
BUSHING INTERMEDIATE SHAFT
17
BUSHING , Replaced By: A0002642750
17
BUSHING , Replaced By: A0002645850
17
BUSHING , Replaced By: A0002645650
19
P.T.O. , Replaced By: A0002600110
19
P.T.O. , Replaced By: A3432600105, +004A0002610070
19
P.T.O. , Replaced By: A6202600505, +004A3432610170
19
P.T.O. , Replaced By: A3432600105, +004A0002610070
19
P.T.O. , Replaced By: A6202600505, +004A3899900505
19
P.T.O.N 71/1B
21
GASKET CASE,REAR
21
GASKET
21
GASKET , Replaced By: A0002642980
23
HOUSING , Replaced By: A0002641328
23
HOUSING
25
HOUSING , Replaced By: A0002643528
25
HOUSING P.T.O. TO N 71/1B
27
SEAL RING P.T.O. SHIFT LEVER
29
STUD
29
STUD SHIFT CASE TO TRANSMISSION
31
WASHER , 674067
31
WASHER COVER TO P.T.O. CASE
33
NUT
33
NUT COVER TO FLANGE
35
NEEDLE BEARING P.T.O.
38
DRIVE SHAFT
38
DRIVE SHAFT , Replaced By: A3432640006
40
SPRING
42
BALL
44
SLIDING COLLAR P.T.O.
44
SLIDING COLLAR , Replaced By: A0002641423
44
SLIDING COLLAR , Replaced By: A0002641423
44
SLIDING COLLAR
46
GROOVED BALL BEARING
48
SNAP RING DRIVE SHAFT
50
SHIFT LEVER
52
SHIFT LEVER , Replaced By: A0002601039, +001A0002641315, +001A0002640127
52
SHIFT LEVER P.T.O.
54
LOCK RING SHIFT LEVER UPPER PART TO N 71/1B
56
EXPANSION PLUG ROD END
58
SLIDE P.T.O. SHIFT LEVER
60
INTERMEDIATE FLANGE OUTPUT FLANGE
62
GASKET
62
GASKET , Replaced By: A3432640479
62
GASKET , Replaced By: A0002642980
62
GASKET CASE,REAR
64
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
66
SEAL RING REAR P.T.O.
66
SEAL RING , Replaced By: A0089973747
68
COUPLING FLANGE
70
SHIM FLANGE TO TRANSMISSION CASE COVER
72
SEAL RING FLANGE TO TRANSMISSION CASE COVER
72
SEALING CORD , Replaced By: A0119979145
74
SPRING WASHER CAB FLOOR
76
SCREW BRACKET TO FRAME
76
SCREW BRACKET TO SIDE MEMBER M 12X40
78
BALL10 MM
80
SEAL RING SWITCH TO CASE COVER
82
SWITCH , Replaced By: A0025458114
82
SWITCH , Replaced By: A0035451614
82
SWITCH GEAR CLUSTER INDICATION
84
PISTON , Replaced By: A0002641315, +001A0002601039, +001A0002640127
84
PISTON P.T.O. SHIFTING CYLINDER
87
RING PISTON TO N 71/1B
90
SEAL RING P.T.O. SHIFTING CYLINDER
93
SEAL RING P.T.O. SHIFTING CYLINDER
99
CYLINDER P.T.O.
99
CYLINDER , Replaced By: A0002640127, +001A0002601039, +001A0002641315
103
SPRING WASHER LICENSE PLATE TO BRACKET
105
SCREW CONNECTOR
107
SPRING , Replaced By: A0002600069, +001A0002649680
107
SPRING , Replaced By: A0002600069
107
SHIFTING CYLINDER P.T.O. SHIFTING CYLINDER
107
SPRING , Replaced By: A0002600069
107
REPAIR KIT SHIFTING CYLINDER
111
SHIFT LEVER P.T.O. TO N 70/2C
111
SHIFT LEVER
111
SHIFT LEVER N 70/1 C P.T.O.
111
SHIFT LEVER P.T.O. CONTROL
114
SCREW SUPPORT TO FENDER
114
SCREW , Replaced By: N304017008018
117
NUT , Replaced By: N913004008001
120
SHIFTING CYLINDER PNEUMATIC SHIFTING CYLINDER
120
SHIFTING CYLINDER , Replaced By: A0002606263
120
SHIFTING CYLINDER , Replaced By: A0002603263, +001A0045227817
120
SHIFTING CYLINDER , Replaced By: A0002606663
120
SHIFTING CYLINDER , Replaced By: A0002606763
120
SHIFTING CYLINDER PNEUMATIC SHIFT MECHANISM USED FOR LATERAL P.T.O. TO N 70/1C
120
SHIFTING CYLINDER P.T.O. CONTROL
126
SEAL RING
129
SPRING
132
SPRING
135
STOP RING
138
SNAP RING , Replaced By: A0009949735
138
SNAP RING
138
SNAP RING AS REQUIRED 2.10 MM
141
BOOT
141
BOOT , Replaced By: A0002640696
144
NUT , Replaced By: N304035010001
144
NUT
147
YOKE
147
YOKE , Replaced By: A0009962801
150
PINM 8 X 16
153
WASHER
156
STRAINER
158
PINM 8 X 16
158
PIN SHIFTING CYLINDER TO BRACKET
158
PIN , Replaced By: N918001008002
158
PIN
162
WASHER , Replaced By: N000125008443
162
WASHER EXHAUST MUFFLER TO STRAP
165
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
165
COTTER PIN LEVER TO ROD
168
SEAL RING OIL DISTRIBUTOR BLOCK
171
SCREW PLUG
174
SWITCH
174
SENDER UNIT , Replaced By: A0105421217, +002A0045453926
174
SENDER UNIT , Replaced By: A0025452014
176
REPAIR KIT PNEUMATIC SHIFTING CYLINDER TO 000 260 66 63
178
BRACKET SHIFTING CYLINDER TO TRANSMISSION CASE TO N 70/1B
178
BRACKET SHIFTING CYLINDER TO N 70/1C
178
BRACKET SHIFTING CYLINDER TO TRANSMISSION CASE TO N 70/1B
178
BRACKET PNEUMATIC SHIFTING CYLINDER TO N 70/2C
178
BRACKET SHIFTING CYLINDER
178
BRACKET SHIFTING CYLINDER TO N 70/1C
178
BRACKET SHIFTING CYLINDER TO TRANSMISSION CASE TO N 70/1B
180
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
183
SCREW BRACKET TO FRAME SIDE MEMBER
183
SCREW STRAP TO BRACKET
999
INTERMEDIATE SHAFT , Replaced By: A0002601278
999
RING INTERMEDIATE SHAFT,FRONT
999
SPACER WASHER , Replaced By: A0032624252
999
SPACER WASHER , Replaced By: A0032624252
999
SPACER WASHER , Replaced By: A0032624352
999
SPACER WASHER , Replaced By: A0032624352
999
SPACER WASHER , Replaced By: A0032624452
999
SPACER WASHER , Replaced By: A0032624452
999
SPACER WASHER , Replaced By: A0032624552
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.25 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.20 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.15 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.10 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.05 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.00 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 0.95 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 0.90 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 0.85 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.60 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.50 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.40 MM
999
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 1.30 MM
