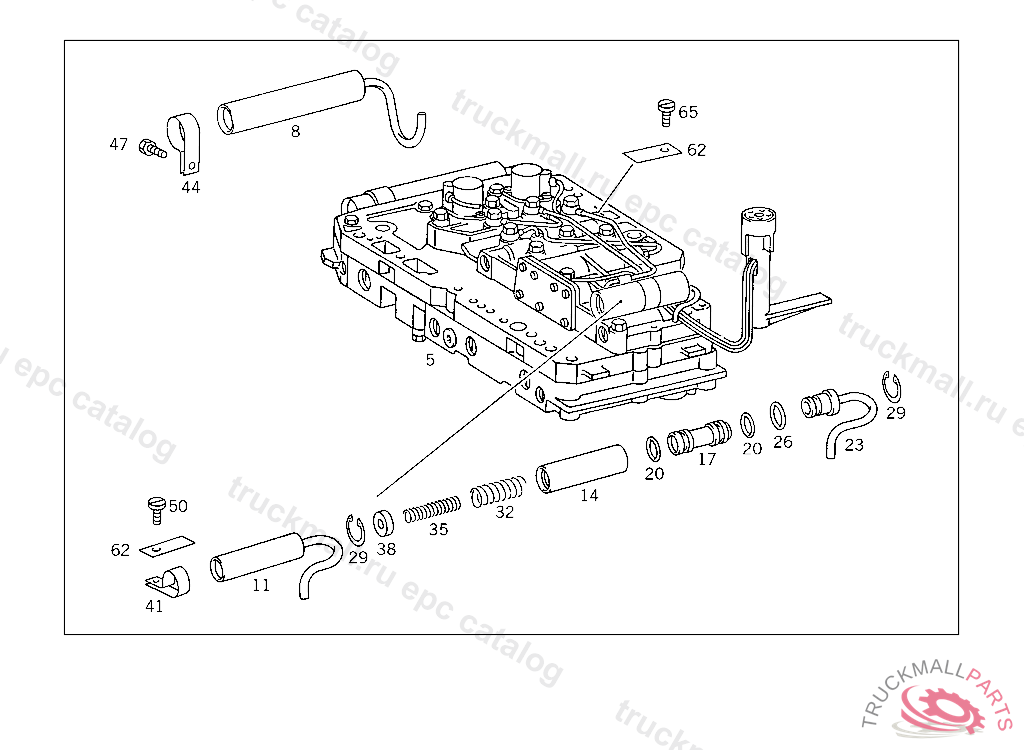

W 4 A 110/3,5 R - 720.341 - 27 MERCEDES-BENZ AUTOMATIC TRANSMISSION
Поз.
Артикул
Описание
5
VALVE BODY ASSEMBLY CENTRAL
8
CYLINDER FIRST BRAKE
11
CYLINDER ADDITIONAL-GEAR-CLUSTER BRAKE
14
CYLINDER FIRST BRAKE
17
PISTON
20
SEAL RING
23
COVER
26
SEAL RING REVERSE BRAKE
26
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0099971645
29
LOCK RING
32
SPRING1.40X12.50X83 MM
35
SPRING1.00X8.50X87 MM
38
SPRING RETAINER
41
CLAMP CYLINDER TO HOUSING
50
SCREW LICENSE PLATE TO BRACKET,4 300861
62
BRACKET PLUG SOCKET TO VALVE BODY ASSEMBLY
65
SCREW LICENSE PLATE BRACKET
