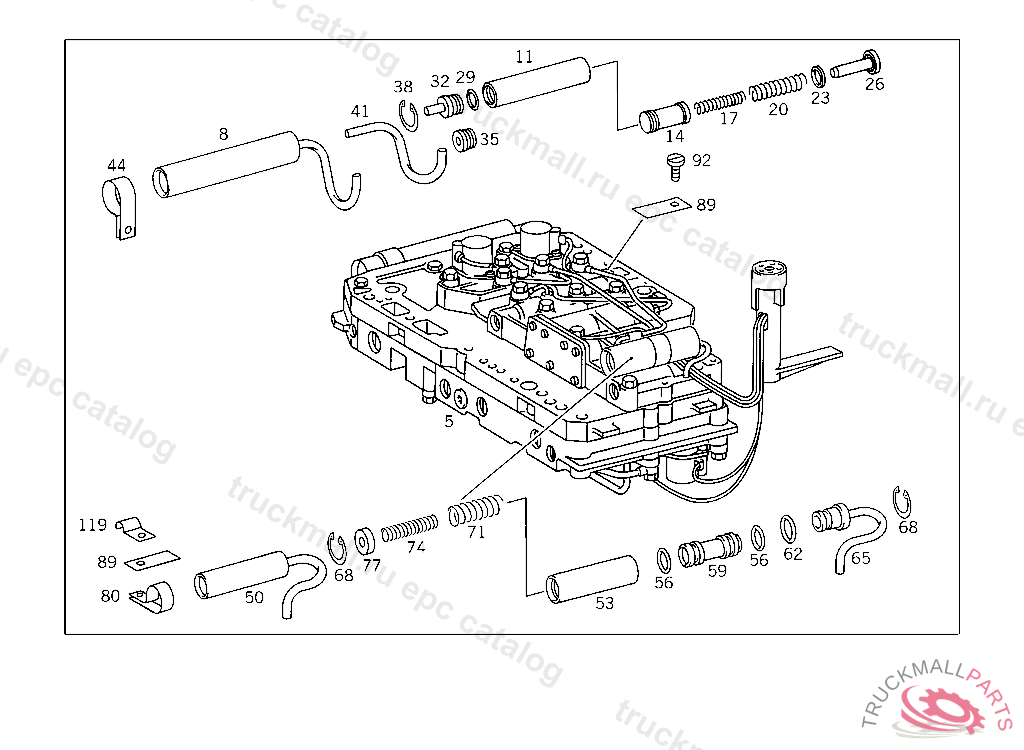

Поз.
Артикул
Описание
5
VALVE BODY ASSEMBLY
8
CYLINDER FIRST BRAKE
8
CYLINDER , Replaced By: A3012700435
11
CYLINDER FIRST BRAKE
14
PISTON
17
SPRING FIRST BRAKE 1.60X20.00X157.70 MM
20
SPRING FIRST BRAKE 2.00X25.50X165.90 MM
23
SEAL RING FIRST BRAKE
26
GUIDE ,000574
29
SEAL RING FIRST BRAKE
32
COVER ,000574
35
CYLINDER FIRST BRAKE
35
COVER , Replaced By: A3012700435
38
LOCK RING FIRST BRAKE
41
PIPE FIRST BRAKE,000574000675
44
CLAMP CYLINDER TO VALVE BODY ASSEMBLY
89
BRACKET PLUG SOCKET TO VALVE BODY ASSEMBLY
92
SCREW LICENSE PLATE TO BRACKET,4 300861
92
SCREW LICENSE PLATE BRACKET
119
BRACKET OIL LINE TO VALVE BODY ASSEMBLY
