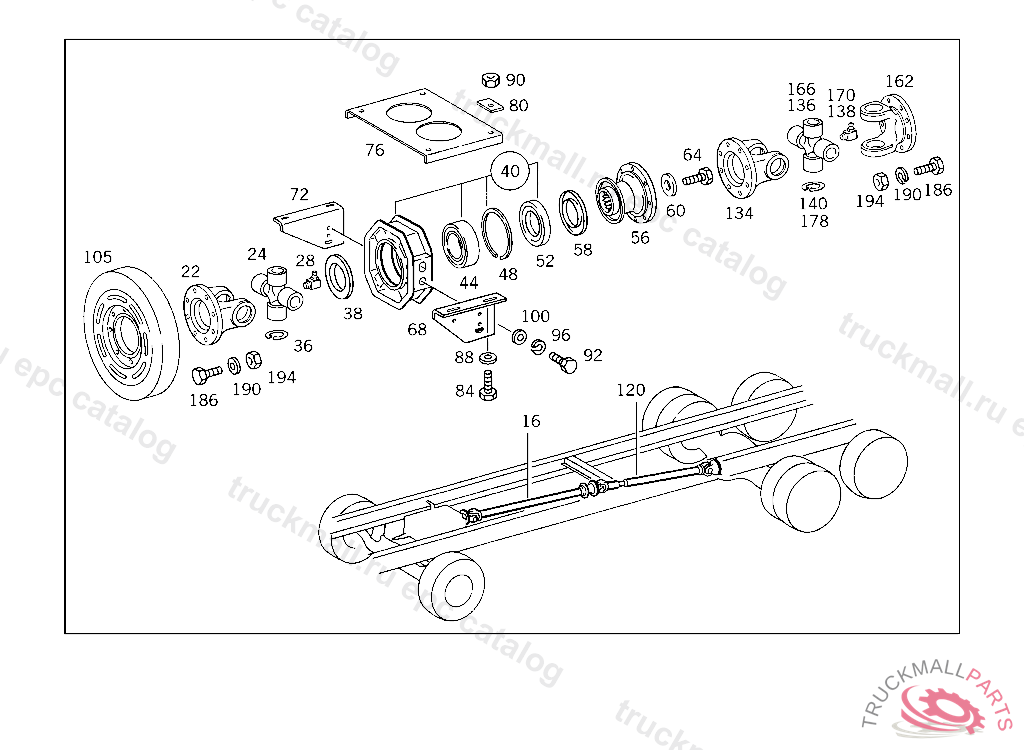

Поз.
Артикул
Описание
16
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING I TO PROPELLER SHAFT BEARING II 1145 MM
22
DRIVE FLANGE
24
UNIVERSAL JOINT CROSS WITH BUSHINGS
24
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
28
GREASE NIPPLE
36
LOCK AS REQUIRED 1.90 MM
36
LOCK AS REQUIRED 1.85 MM
36
LOCK AS REQUIRED 1.80 MM
36
LOCK RING AS REQUIRED 1.75 MM
36
LOCK AS REQUIRED 1.70 MM
38
PROTECTIVE CAP FOLLOWER FLANGE, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
38
PROTECTIVE CAP FOLLOWER FLANGE, INTERMEDIATE BEARING, BALL BEARING WITH LOCK
40
INTERMEDIATE BEARING PROPELLER SHAFT BEARING, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
40
INTERMEDIATE BEARING , Replaced By: A9734100022, +002A9734110052
40
INTERMEDIATE BEARING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK, Replaced By: A3854101722, +002A3854130461, +004N000933010105
40
INTERMEDIATE BEARING , Replaced By: A3854100922
40
REPAIR KIT , Replaced By: A3854100122
44
BALL BEARING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
44
BALL BEARING , Replaced By: A0079818525
48
SNAP RING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
52
PROTECTIVE CAP , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
56
CENTERING FLANGE , Replaced By: A3854110045
58
PROTECTIVE CAP FOLLOWER FLANGE, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
58
PROTECTIVE CAP FOLLOWER FLANGE, INTERMEDIATE BEARING, BALL BEARING WITH LOCK
60
THRUST WASHER FOLLOWER FLANGE TO PROPELLER SHAFT
64
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
68
BRACKET PROPELLER SHAFT BEARING I,RIGHT
68
BRACKET PROPELLER SHAFT BEARING I,LEFT
72
BRACKET PROPELLER SHAFT BEARING,RIGHT
72
BRACKET PROPELLER SHAFT BEARING I,RIGHT
76
REINFORCEMENT PROPELLER SHAFT BEARING
80
REINFORCEMENT MOUNTING USED FOR FRAME CONNECTION PARTS
84
SCREW BRACKET TO CROSS MEMBER M 10X40
84
SCREW , Replaced By: N308676010023
84
SCREW , Replaced By: N000961010031
88
WASHER STRUT TO CROSS MEMBER
88
WASHER , Replaced By: N007349010007
90
NUT BRACKET TO CROSS MEMBER
92
SCREW END PIECE TO EXHAUST PIPE M 10X25
92
SCREW BRACKET TO FRAME SIDE MEMBER
96
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
100
WASHER STRUT TO CROSS MEMBER
100
WASHER , Replaced By: N007349010007
134
DRIVE FLANGE
136
UNIVERSAL JOINT CROSS WITH BUSHINGS
136
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
138
GREASE NIPPLE
140
LOCK AS REQUIRED 1.90 MM
140
LOCK AS REQUIRED 1.85 MM
140
LOCK AS REQUIRED 1.80 MM
140
LOCK RING AS REQUIRED 1.75 MM
140
LOCK AS REQUIRED 1.70 MM
162
DRIVE FLANGE
162
DRIVE FLANGE , Replaced By: A3854111811
166
UNIVERSAL JOINT CROSS WITH BUSHINGS
166
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
166
UNIVERSAL JOINT CROSS , Replaced By: A3814100231
170
GREASE NIPPLE
178
LOCK AS REQUIRED 1.90 MM
178
LOCK AS REQUIRED 1.85 MM
178
LOCK AS REQUIRED 1.80 MM
178
LOCK RING AS REQUIRED 1.75 MM
178
LOCK AS REQUIRED 1.70 MM
186
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
186
SCREW , Replaced By: A3609903001
190
LOCK WASHER FITTING TO BRACKET
194
NUT PROPELLER SHAFT TO COUPLING FLANGE
999
FLANGE PROPELLER SHAFT BEARING
999
SPACER WASHER PROPELLER SHAFT BEARING
