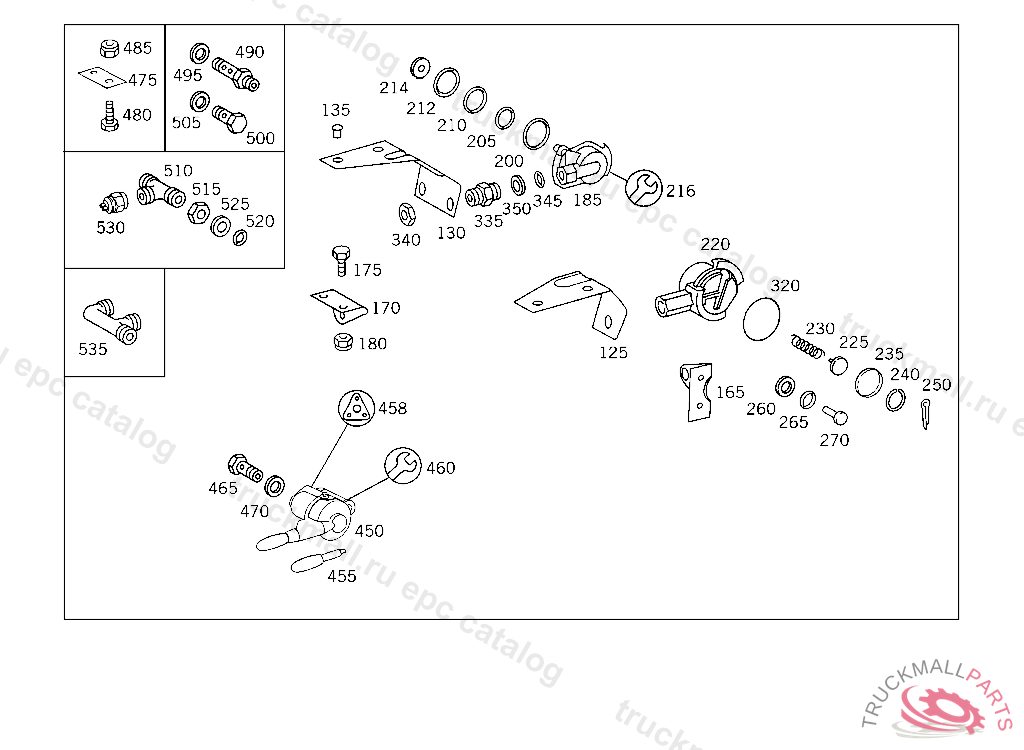

Поз.
Артикул
Описание
125
BRACKET , Replaced By: A3874292040
125
BRACKET AT FRAME
125
BRACKET AT FRAME
130
BRACKET , Replaced By: A3464290940
130
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
130
BRACKET , Replaced By: A3874292140
130
BRACKET , Replaced By: A3874292140
130
BRACKET AT FRAME
130
BRACKET AT FRAME
130
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
135
RIVET BRACKET TO FRAME
135
RIVET BRACKET TO FRAME
165
BRACKET (REAR CROSS MEMBER)
170
BRACKET (REAR CROSS MEMBER)
175
SCREW , Replaced By: N304017008034
175
SCREW BRACKET TO CROSS CONNECTION STRUT
180
NUT , Replaced By: N913004008001
180
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
185
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
185
BRAKE LINE COUPLING , Replaced By: A0004299630
185
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
185
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
185
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
185
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
185
BRAKE LINE COUPLING , Replaced By: A0004299730
185
BRAKE LINE COUPLING BRAKE,YELLOW "GRAU"
185
BRAKE LINE COUPLING BRAKE,YELLOW "KNORR"
185
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
200
SEAL RING"GRAU"
200
SEAL RING"GRAU"
205
SEAL RING30X2 MM,BOSCH
205
SEAL RING30X2 MM,BOSCH
205
SEAL RING30X2 MM,BOSCH
210
SEAL RING25X2 MM,BOSCH
210
SEAL RING25X2 MM,BOSCH
212
SEAL RING33X2.5 MM,BOSCH
214
SEAL RING , Replaced By: A0049978240, +001A0004290483
214
SEAL RING22X4 MM,BOSCH
214
VALVE TAPPET22X4 MM,BOSCH
216
REPAIR KIT BRAKE LINE COUPLING "WABCO"
216
REPAIR KIT BRAKE LINE COUPLING "WABCO"
216
REPAIR KIT BRAKE LINE COUPLING "KNORR"
216
REPAIR KIT BRAKE LINE COUPLING "KNORR"
220
BRAKE LINE COUPLING AT REAR CROSS MENBER
220
BRAKE LINE COUPLING AT REAR CROSS MENBER
220
BRAKE LINE COUPLING AT REAR CROSS MENBER
220
BRAKE LINE COUPLING AT REAR CROSS MENBER
220
BRAKE LINE COUPLING AT REAR CROSS MENBER
220
BRAKE LINE COUPLING AT REAR CROSS MENBER
225
VALVE DISCTO 000 429 48 30
230
SPRINGTO 000 429 16 30
235
GASKETTO 000 429 16 30
240
SNAP RINGTO 000 429 16 30
250
COTTER PINTO 000 429 48 30,KNORR
260
SEAL RINGTO 000 429 16 30
265
SEAL RINGTO 000 429 16 30
270
PIN
320
SEAL RINGBOSCH
320
SEAL RINGTO 000 429 75 30
335
FITTING BRAKE LINE COUPLING TO BRACKET
335
FITTING SHUTTLE VALVE
340
NUT BRACKET TO SIDE MEMBER
345
O-RING CHECK VALVE TO AIR RESERVOIR
345
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
350
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
350
THRUST RING CHECK VALVE TO AIR RESERVOIR
350
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
450
VALVE PARKING BRAKE VALVE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
450
VALVE PARKING BRAKE VALVE GRAU
450
VALVE PARKING BRAKE VALVE WABCO
450
VALVE PARKING BRAKE VALVE GRAU
455
HANDLETO 000 430 85 81,WABCO,004 0
455
HANDLETO 000 430 85 81,WABCO,004 0
455
HANDLETO 000 430 85 81,WABCO,004 0
455
HANDLETO 000 430 85 81,WABCO,004 0
458
GASKET KIT PARKING BRAKE VALVE GRAU
460
REPAIR KITTO 000 430 85 81,WABCO,004 0
460
REPAIR KITTO 000 430 86 81,WABCO
460
REPAIR KITTO 000 430 85 81,WABCO,004 0
460
REPAIR KITTO 000 430 86 81,WABCO
460
REPAIR KITTO 000 430 86 81,WABCO
465
HOLLOW SCREW , Replaced By: N915036010108
465
HOLLOW SCREW FUEL LINE TO FEED PUMP
470
SEAL RING FUEL LINE TO FEED PUMP
475
BRACKET , Replaced By: A3353170884
475
SHIM BRACKET TO FRAME
480
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
485
NUT END PIECE TO EXHAUST PIPE
490
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
495
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
500
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
505
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
510
T-FITTING EXHAUST BRAKE 3/2-WAY VALVE
515
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
520
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
525
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
525
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
530
SWITCH , Replaced By: A0005456009
530
SWITCH EXHAUST BRAKE,K 251255
535
F-FITTING AIR RESERVOIR,CONNECTION "14"
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
COVERWABCO
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
SPRINGTO 000 429 16 30
999
REPAIR KITWABCO
999
BRACKET TRAILER CONTROL VALVE
