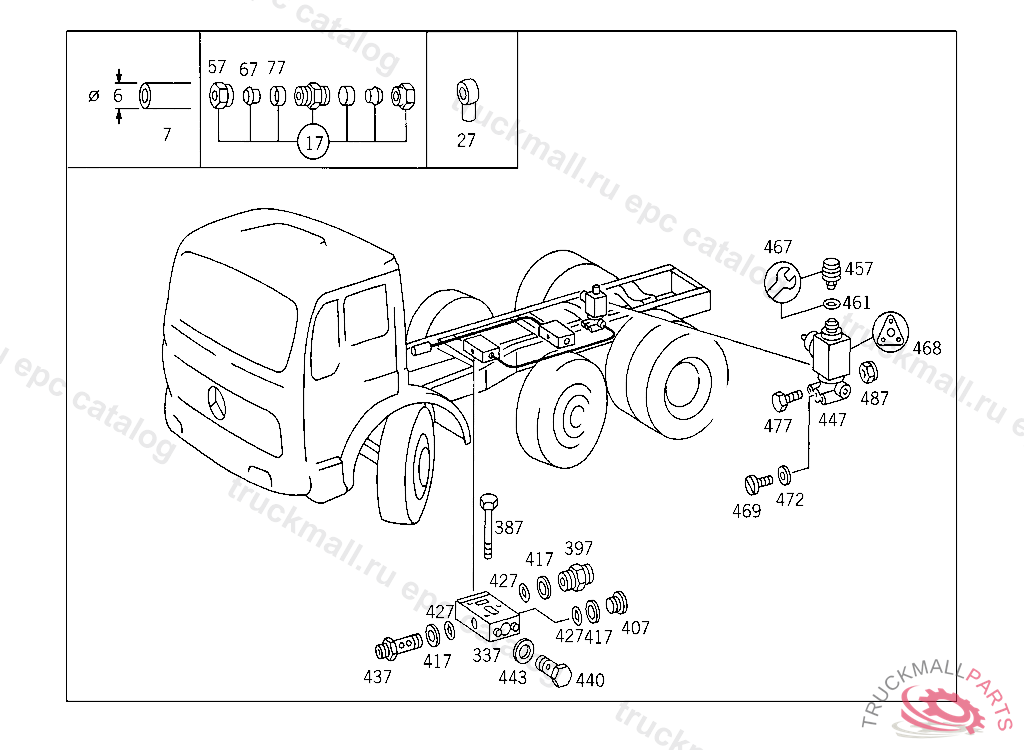

Поз.
Артикул
Описание
7
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
7
PLASTIC PIPE RISING PIPE 4X6 MM
7
PLASTIC PIPE RISING PIPE 4X6 MM
7
PLASTIC PIPE RISING PIPE 4X6 MM
7
PLASTIC PIPE RISING PIPE 4X6 MM
17
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
27
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
27
BANJO UNION , Replaced By: N000000000364
27
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
27
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
57
UNION NUT
67
GLAND , Replaced By: A0019901667
67
SEAL CONE
77
SLEEVE LEAK LINE
337
VALVE (3/2-WAY SOLENOID VALVE)
387
SCREW 3/2-WAY VALVE TO BRACKET, UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
387
SCREW 3/2-WAY VALVE TO BRACKET, UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
397
FITTING
397
PIPE SOCKET 3/2-WAY VALVE,CONNECTION: "34", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
407
SCREW PLUG , Replaced By: N000908014009
407
SCREW PLUGTO 000 553 03 05,000 553 18 05,
417
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
427
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
437
HOLLOW SCREW FITTING SHUTTLE VALVE,CONNECTION: "17", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
437
HOLLOW SCREW FITTING SHUTTLE VALVE,CONNECTION: "17", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
437
HOLLOW SCREW FITTING SHUTTLE VALVE,CONNECTION: "17", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
440
HOLLOW SCREW LINE CONNECTION
440
HOLLOW SCREW LINE CONNECTION
443
SEAL RING LINE CONNECTION
443
SEAL RING LINE CONNECTION
447
VALVE (3/2-WAY SOLENOID VALVE) EKS
447
VALVE , Replaced By: A0049975736
447
VALVE (3/2-WAY SOLENOID VALVE) KNORR
447
VALVE (3/2-WAY SOLENOID VALVE) WABCO
447
VALVE (SOLENOID VALVE) WABCO
447
VALVE (3/2-WAY SOLENOID VALVE) EKS
447
VALVE , Replaced By: A0049975736
447
VALVE , Replaced By: A0049975736
447
VALVE (3/2-WAY SOLENOID VALVE) KNORR
447
VALVE (3/2-WAY SOLENOID VALVE) KNORR
447
VALVE (3/2-WAY SOLENOID VALVE) WABCO
447
VALVE (3/2-WAY SOLENOID VALVE) WABCO
457
PROTECTIVE CAPWABCO
461
SEAL RINGWABCO
461
SEAL RINGWABCO
467
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
467
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
468
GASKET KITKNORR
469
SCREW TO PLUG THE FREE CONNECTIONS
472
SEAL RINGBOSCH
477
SCREW , Replaced By: N304017008028
477
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
487
NUT , Replaced By: N913004008001
487
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
BRACKET OVERFLOW VALVE,CONNECTION: "20"
999
BRACKET OVERFLOW VALVE,CONNECTION: "10"
999
PIPE SOCKET LINE CONNECTION
999
BRACKET CONTROL VALVE, NOT FOR USE WITH MERCEDES-BENZ PLATFORM5 147259
999
VALVE PRESSURE RELIEF
999
VALVE STARTING ASSISTANCE
999
VALVE ENGINE SHUT-OFF
999
REPAIR KIT 3/2-WAY SOLENOID VALVE
999
VALVE PRESSURE RELIEF FOR BELLOWS RESIDUAL PRESSURE
