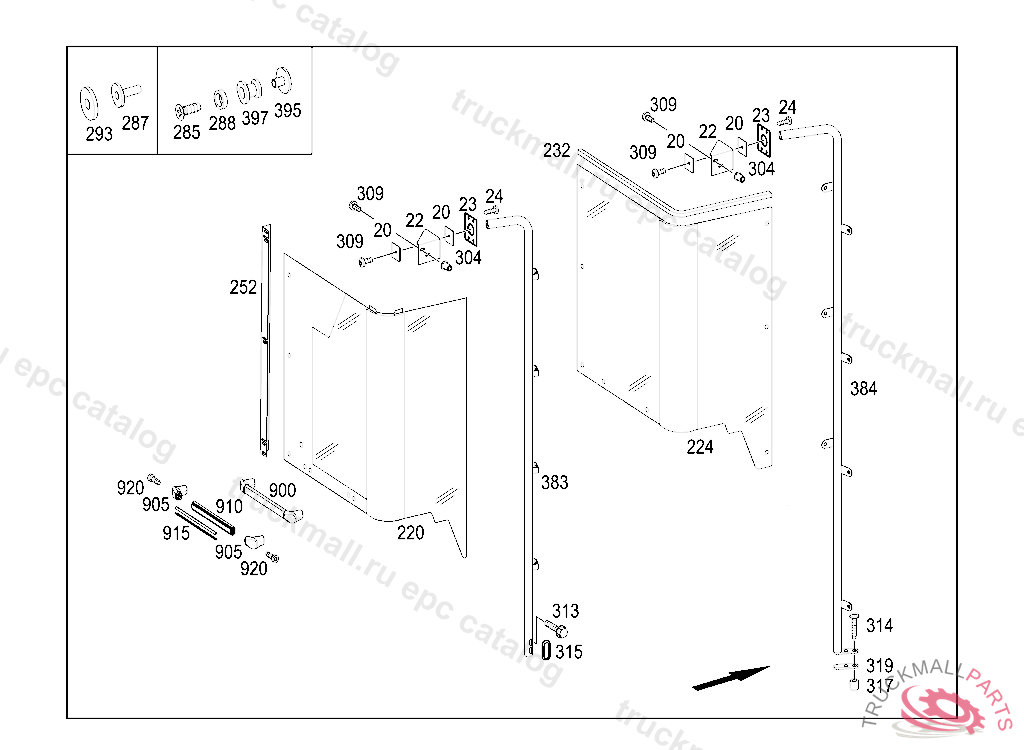

O 530 NUE3 EURO 3 - 628.048 - 71 PARTITION PANELS

Поз.
Артикул
Описание
232
A6287110356
FRAME
252
A6287111012
ANGLE , FROM IDENT NO. 100921 ALSO INSTALLED IN 100586,100762-100765,100768-100770,100782,100783,100797,100842,100849-100866,100872,100912. EXCEPT 100941-100946,100957-100960.
285
N000965005013
SCREW LIGHT SWITCH M5X16
285
N000000003098
SCREWM6X10
285
A0009905831
SCREWM6X30 T30
287
A3579970016
THREADED CHUCK. PART NAME MISSING
288
A6669900040
WASHER
293
A3577110013
WASHER TO GLAS PANE,LATERAL
313
N910105008010
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
315
A0007110028
COVERING
395
A6289920001
BUSHING
397
A3577110043
MOUNTING
900
A6287164814
BRACKET
905
A6287110076
LEVER
910
A6287110030
WINDOW REGULATOR RAIL
915
A6287163714
BRACKET
920
N304032004002
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
A0007100535
LOCK
999
A0007110021
END PIECE
999
A0007110078
DETENT
999
A0007110084
LATCH
999
A0007110114
BRACKET
999
A0007110121
END PIECE
999
A0007150062
GUIDE
999
A0008401302
VALUABLES COMPARTMENT
