Mercedes A0019846829 - ШЕСТИГРАННЫЙ БОЛТ

TRAVEGO 17 SHD 3 - ACHSER 632.012

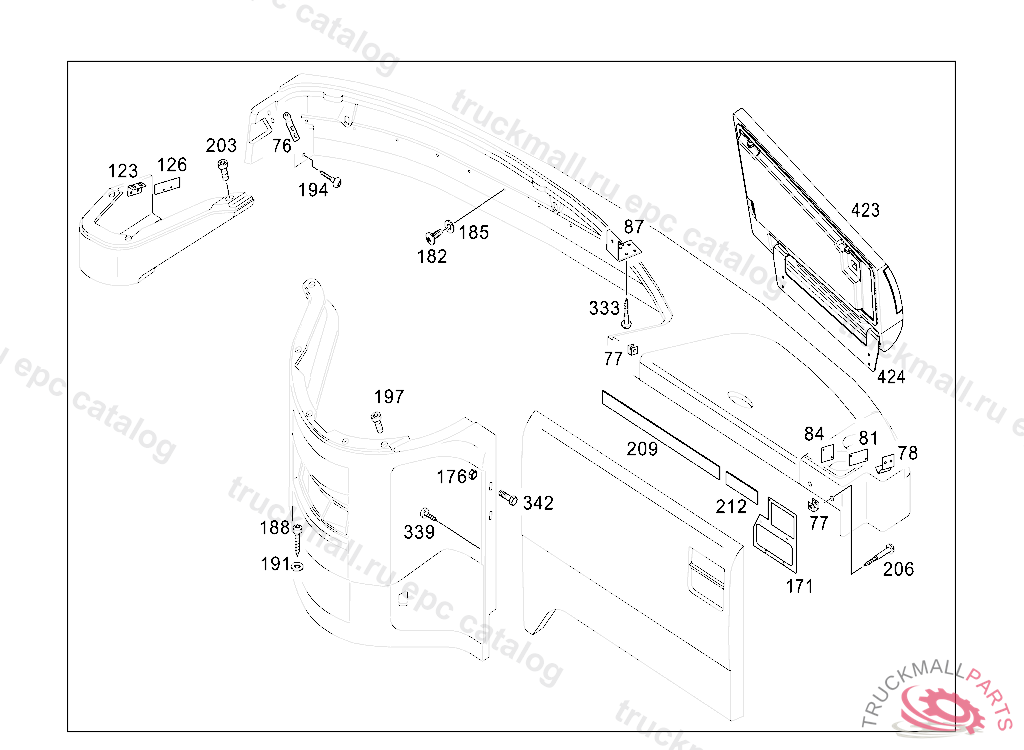

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 3

Поз.
Артикул
Описание
76
A6326872114
BRACKET
77
A6326871612
ATTACHMENT ANGLE BRACKET
78
A6326871314
BRACKET
81
A6326871086
PLATE
84
A6326870986
PLATE
87
A6326871412
ANGLE DRIVER TABLE
123
A6326871812
ANGLE
126
A6326871686
PLATE
171
A6326872086
PLATE
176
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
182
A0009902029
SCREW W SOCKET DRIVEM6X25 T30
185
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
188
N000000000464
TAPPING SCREW HANDLE TO PANELLING
191
N000000003337
WASHER
194
N000000001527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
194
N000000000527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
197
A0019846829
BOLT. SCREW SEAL TO RADIATOR,TOP 6X25 MM
203
A0039908912
SCREWM6X16
206
N000000001091
TAPPING SCREW4,8X60
209
A6326890054
LEDGE DEEP FREEZER
212
A6326890154
LEDGE DEEP FREEZER
333
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
339
N000000000533
TAPPING SCREW. SHEET METAL SCREW4.8X16
342
N910105006005
SCREW , Replaced By: N000000001479
423
A6326800078
COVER COMPLETE
424
A6326870714
BRACKET
