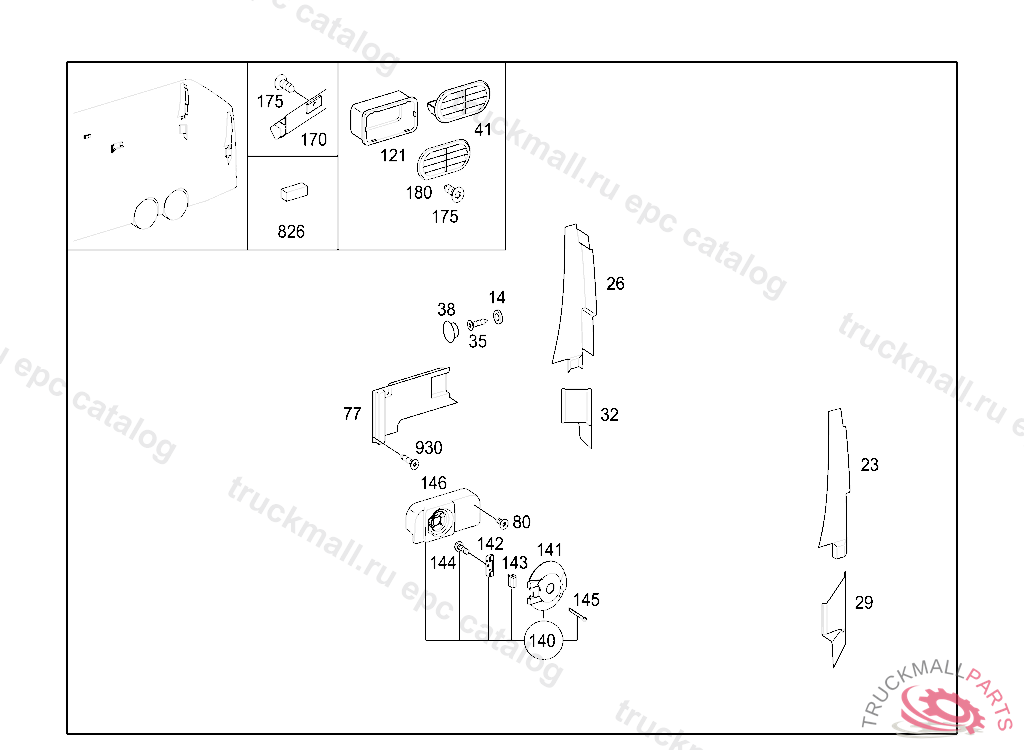

Поз.
Артикул
Описание
14
WASHER4MM
23
PANELLING REAR END,TOP LEFT
26
PANELLING REAR END,TOP RIGHT
29
PANELLING REAR END,BOTTOM LEFT
32
PANELLING REAR END,BOTTOM RIGHT
35
SHEET METAL SCREW3.5X22 T20
38
LOCKING CAP
41
COVERING
77
COVERING
80
REINFORCEMENT
121
AIR BAFFLE
140
PANELLING , UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
141
COVER
142
SPRING
143
MOUNTING
144
TAPPING SCREW BRACKET MOUNTING
145
COTTER PIN ROD TO INTERMEDIATE LEVER
146
PANELLING
170
COVER STATE SIZE WHEN ORDERING
175
TAPPING SCREW2,9X9,5
180
COVERING
826
SPACERTO 613 640 11 09/12 09
930
TAPPING SCREW3.5X19
