Поз.
Артикул
Описание

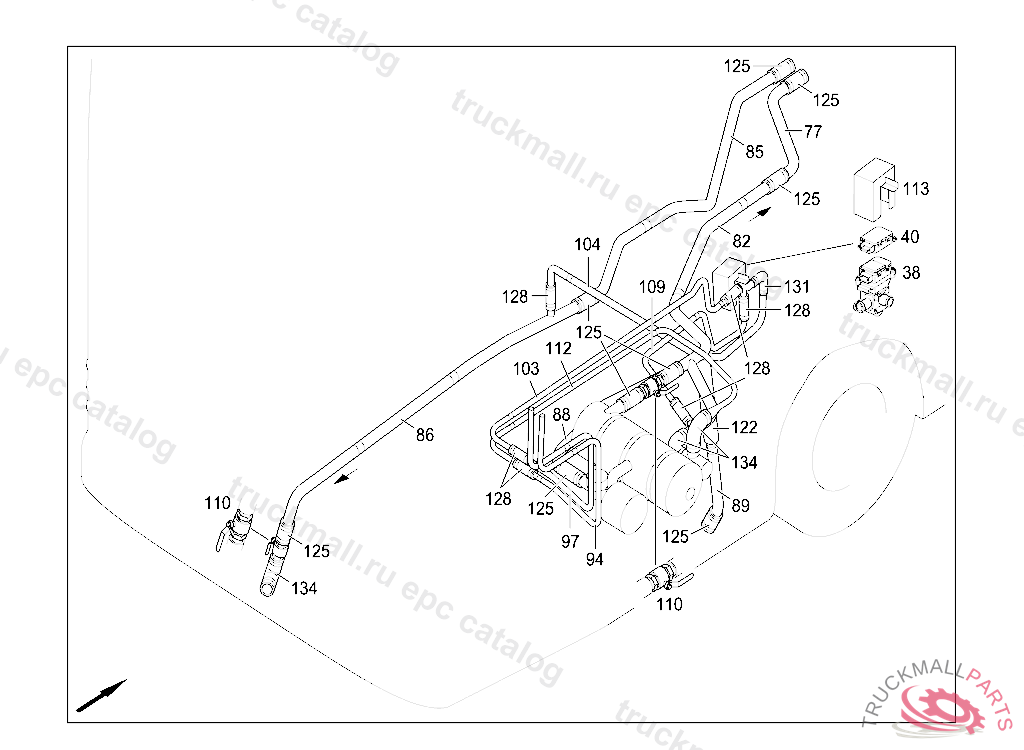

38
VALVE THREE-WAY VALVE
38
VALVE , Replaced By: A0038305784
38
VALVE THREE-WAY VALVE, Replaced By: A0048301684
40
ELECTRIC MOTOR , Replaced By: A0068207842
40
SERVO-D.C. W.GEARBOX
77
PIPE LINE38X600MM
82
HEATER PIPE FEED
85
HEATER PIPE RETURN
86
PIPE LINE RETURN
88
HEATER PIPE FEED
89
HEATING PIPE FEED D38/750MM
89
HEATING PIPED38/2100MM
94
HEATER PIPE FEED D22MM
97
HEATER PIPE RETURN D22
103
HEATER PIPED22
104
PIPE LINE22X1600MM
109
HEATER PIPED22
110
SLIDE
112
HEATER PIPE
113
COVERING
122
HOSE PIPE LINE TO PIPE LINE
125
HOSE ,D 209702
125
HOSE LINE CONNECTION 38X50X100 MM
128
HOSE
128
HOSE22X31X100MM
131
MOLDED HOSE 90-DEGREE ARC D22
134
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
134
PIPE BEND
