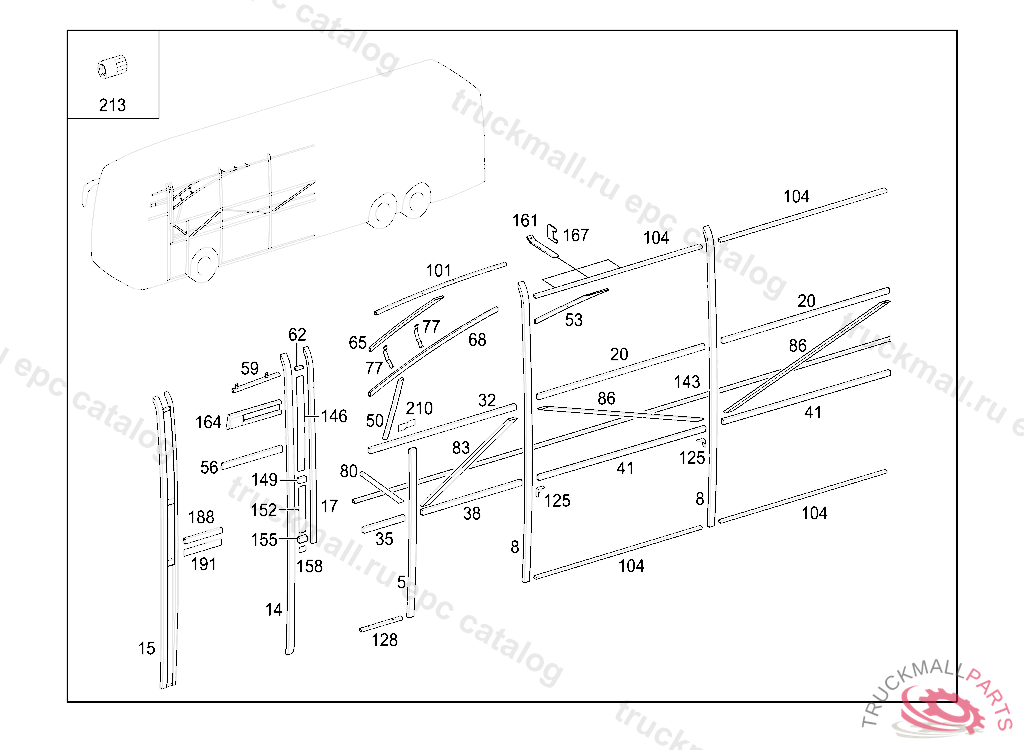

TRAVEGO 17 SHD 3 - ACHSER - 632.012 - 63 SIDE PANELS
Поз.
Артикул
Описание
5
PILLAR PART LUGGAGE COMPARTMENT
8
PILLAR
14
PILLAR LEFT
17
PILLAR
20
SIDE PANEL GIRDER
32
SIDE PANEL GIRDER WINDOW SILL
35
SIDE PANEL GIRDER540MM
38
SIDE PANEL GIRDER1280LG
41
SIDE PANEL GIRDER
50
STRUT LEFT
53
STRUT
56
SIDE PANEL GIRDER FRONT TOP
59
SIDE PANEL GIRDER FRONT TOP
62
SIDE PANEL GIRDER
65
STRUT
68
STRUT LEFT
77
BRACKET
80
STRUT
83
STRUT
83
STRUT1407LG
86
STRUT , Replaced By: A6326338805
86
STRUT
101
SIDE PANEL GIRDER ,WKK 629410 13 000212
104
SIDE PANEL GIRDER1750MM
125
STIFFENING
128
SIDE PANEL GIRDER
143
RAIL11615MM
146
PLATE
149
SIDE PANEL GIRDER
152
PLATE TOP
155
REINFORCEMENT
158
PLATE B-SAEULE
161
BRACKET INSTRUMENT PANEL
164
PLATE LEFT OUTSIDE REARVIEW MIRROR
167
TAKE-UP DEVICE DESIGN ELEMENT
210
BRACKET
213
RIVETED NUT
