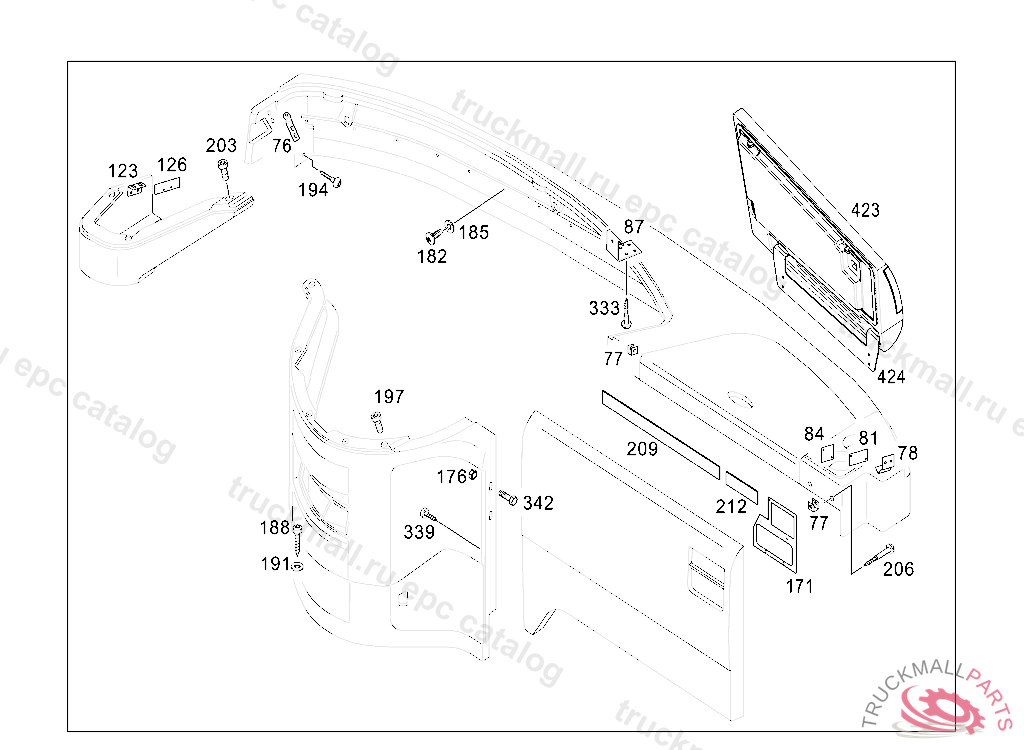

Поз.
Артикул
Описание
76
BRACKET
77
ATTACHMENT ANGLE BRACKET
78
BRACKET
81
PLATE
84
PLATE
87
ANGLE DRIVER TABLE
123
ANGLE
126
PLATE
171
PLATE
176
NUT MOUNTING FRAME TO SUPPORT M6
182
SCREW W SOCKET DRIVEM6X25 T30
185
WASHER COMPRESSED AIR LINE TO BRACKET
188
TAPPING SCREW HANDLE TO PANELLING
191
WASHER
194
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
194
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
197
BOLT. SCREW SEAL TO RADIATOR,TOP 6X25 MM
203
SCREWM6X16
206
TAPPING SCREW4,8X60
209
LEDGE DEEP FREEZER
212
LEDGE DEEP FREEZER
333
TAPPING SCREW MOUNTING PARTS 4.8X16
339
TAPPING SCREW. SHEET METAL SCREW4.8X16
342
SCREW , Replaced By: N000000001479
423
COVER COMPLETE
424
BRACKET
