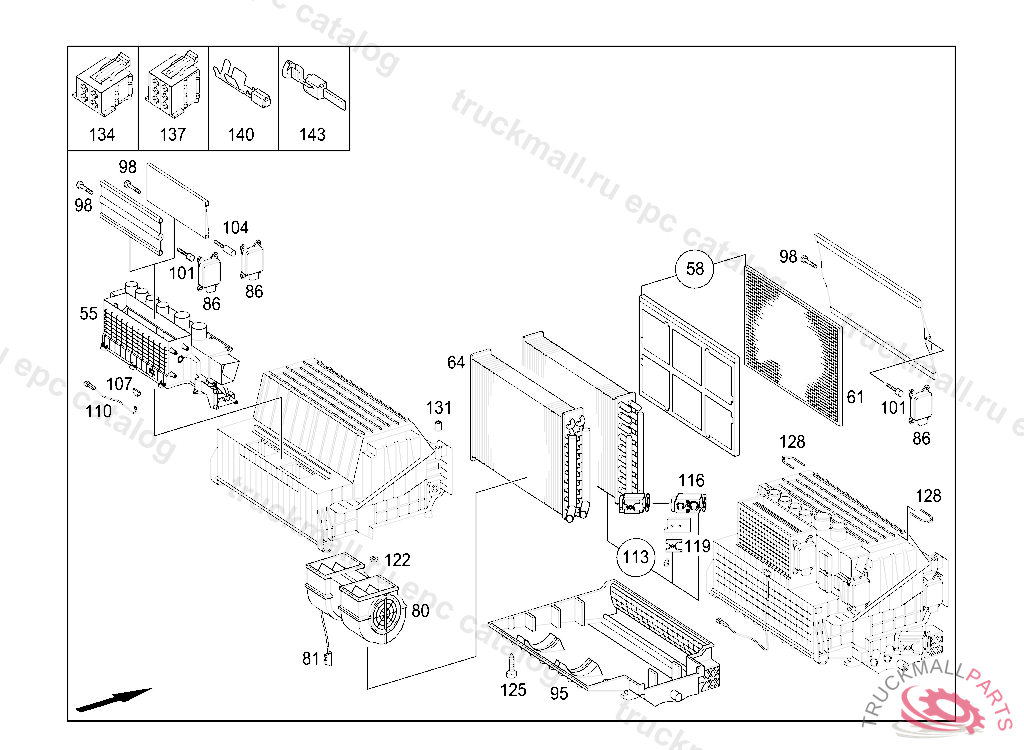

TRAVEGO 17 SHD 3 - ACHSER - 632.012 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
55
AIR DISTRIBUTOR
58
FRAME WITH FILTER ELEMENT BEHR
61
FILTER
64
HEAT EXCHANGERBEHR
80
RADIAL BLOWER
81
CABLE HARNESS BLOWER BEHR
86
SERVO-D.C. W.GEARBOX
86
ELECTRIC MOTOR , Replaced By: A0068207842
95
HOUSING LOWER PART BEHR
98
MOUNTINGBEHR
101
CONNECTOR SHORT BEHR
104
CONNECTOR LONG
107
SENSOR
110
CABLE HARNESS
113
EVAPORATOR
116
VALVEBEHR
119
PLATE
119
PLATEBEHR, Replaced By: A0008353311
122
SHIMBEHR
125
SCREWM4X14,BEHR
128
BRACKET FUSE
131
SLEEVEBEHR
134
PLUG
137
PIN BUSHING HOUSING 6-POLE
140
CONTACT SPRING0,2-0,5 MM2
143
PLUG0,5 - 1,0 MM2
