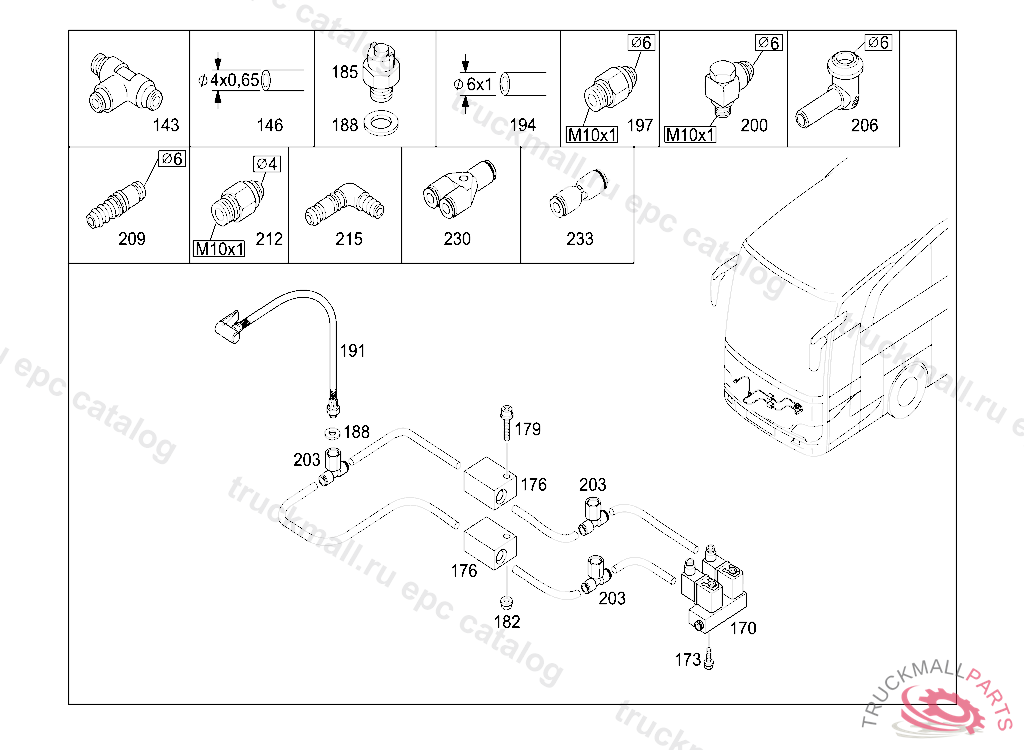

TRAVEGO 17 SHD 3 - ACHSER - 632.012 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
143
T-FITTING
146
PLASTIC PIPE4X0,65MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
170
VALVE
173
HEXAGON HEAD BOLT
176
VALVE SHUTTLE VALVE
179
SCREWM 4 X 50
182
NUT-AND-WASHER ASSEMBLY. NUTM4
185
SWITCH3 BAR
188
SEAL RING
191
LINE
194
PLASTIC PIPE RISING PIPE 4X6 MM
197
FITTING
200
FITTING
203
COUPLING
206
ELBOW FITTING
209
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, Replaced By: A0059977889
209
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM, VOSS 232
212
FITTINGM 10 X 1
