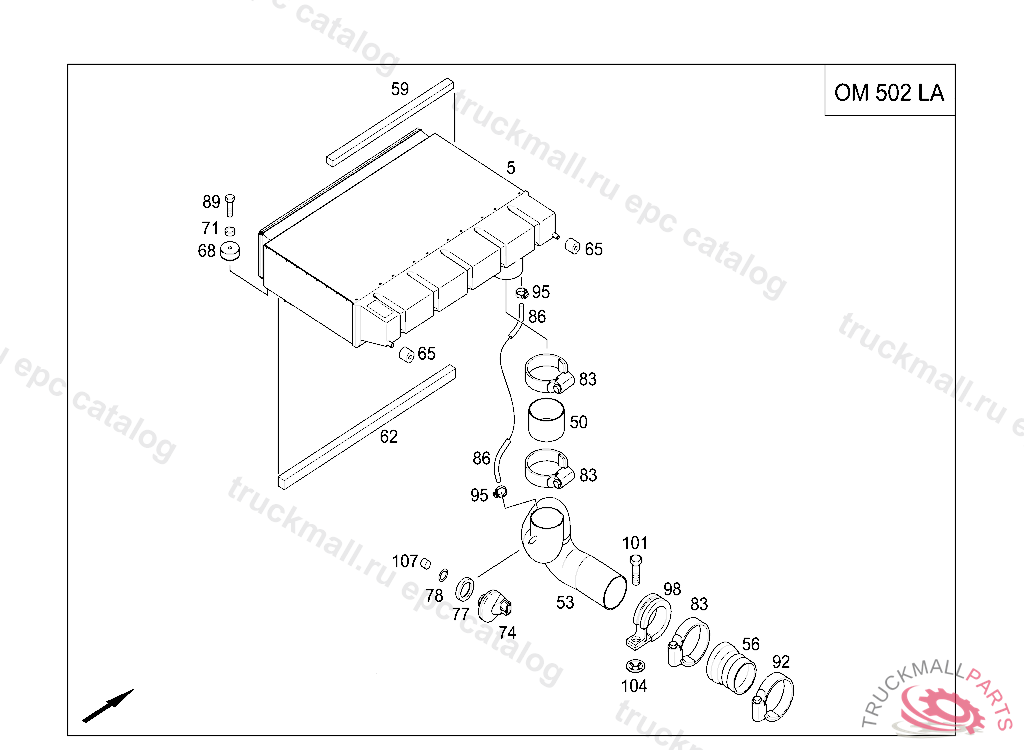

Поз.
Артикул
Описание
5
AIR CLEANER
5
AIR CLEANERULTRAWEB
5
AIR CLEANERULTRAWEB
50
HOSED150/100LG
53
AIR INTAKE PIPE CASTING 150MM
56
HOSED150/130LG
59
SEALING LIP PLASTIC FOAM 20X40MM/1040MM
62
SEAL PLASTIC FOAM 38X45MM/LG1095
65
RUBBER BUSHING EXPANSION TANK D50X45MM
68
BUFFERD25X10/M6
71
SPACER SLEEVE
74
SENDER UNIT. CONTACT SENSOR
77
THRUST RING14X10X2.6MM
78
O-RING
83
CLAMP150-170MM
86
FUEL HOSE. HOSEB5,5-2,5,WEB 629012 13 520122 ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
89
HEXAGON HEAD BOLT
92
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
92
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
95
CLAMP
98
CLAMP150/25MM
101
SCREW BRACKET TO CAB REAR PANEL M 8X20
104
NUTM8
107
WASHER FELT
