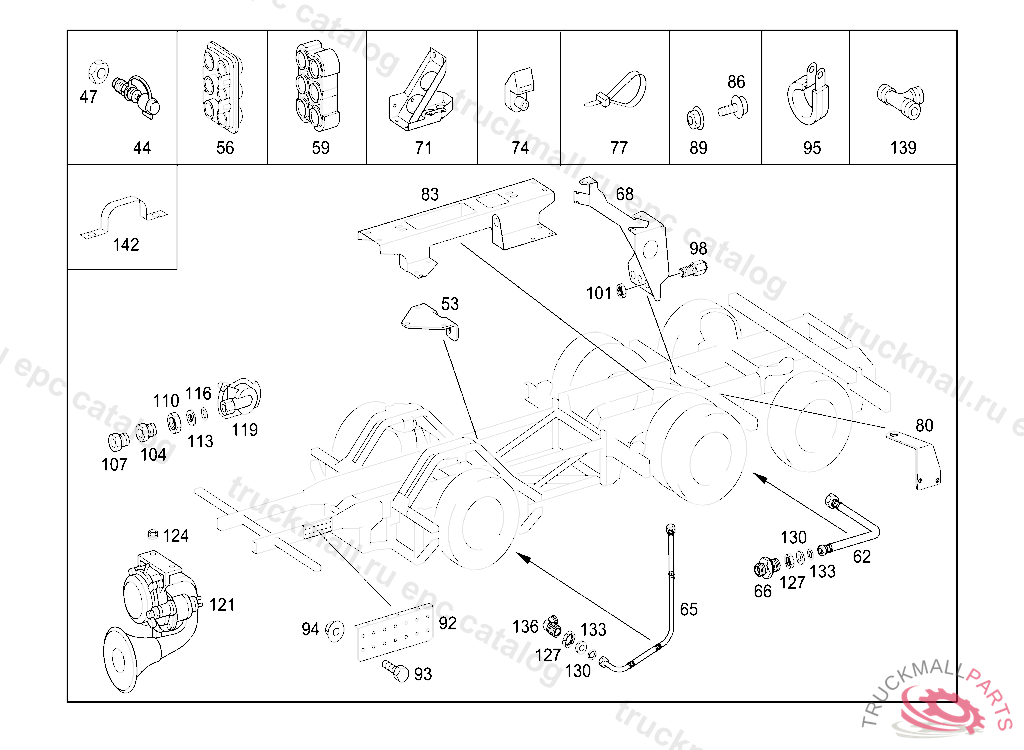

Поз.
Артикул
Описание
44
TEST CONNECTION
44
TEST CONNECTION
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
47
NUTM12X1.5
53
56
MULTI-CLUTCH LINE CONNECTIONS
59
MULTI-CLUTCH LINE CONNECTIONS
62
BRAKE HOSENW11/560LG
65
BRAKE HOSE LEFT
65
BRAKE HOSE RIGHT
66
SCREW-IN FITTING DELIVERY LINE TO PUMP
66
FITTING DELIVERY LINE TO PUMP
66
68
BRACKET
71
SUPPORT
71
74
BRACKET ELECTRIC CABLE MOUNTING
77
CABLE TIE IONIC EXCHANGER 380X7.8MM
77
CABLE TIE LINE MOUNTING 375X8.4MM
80
80
83
86
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
86
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
86
SCREW SPEED SENSOR TO REAR AXLE
86
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
86
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
86
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
86
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
86
HEXALOBULAR BOLT UNDERRUN PROTECTION TO CROSS MEMBER M8X90
86
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
86
SCREW BRACKET TO SIDE MEMBER M8X20
86
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
86
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
89
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
89
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
89
NUT FITTING TO BRACKET,230274
89
NUT BRAKE LINE COUPLING TO BRACKET,230274
89
NUT ENGINE MOUNTING M8
89
NUTM12X1.5
92
BRACKET TEST CONNECTIONS
93
SCREW SHIFT LEVER TO BRACKET M8X30
93
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
94
NUT ENGINE MOUNTING M8
95
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
95
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
95
CLAMP PIPE ON FAN SHROUD
95
CLAMP LINE MOUNTING 15-18 MM,V 207570
98
CONNECTOR BRAKE HOSE TO COMPRESSED AIR LINE M18X1.5
101
NUTM18X1.5
104
ADAPTER FITTING AT BRAKE LINE COUPLING
107
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
107
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
110
NUT BRAKE LINE COUPLING TO BRACKET,230274
113
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
116
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
119
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
121
AIR HORN
124
NUT COVERING TO CAB FIRE WALL
127
NUT BRAKE LINE COUPLING TO BRACKET,230274
130
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
133
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
136
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
139
142
CLAMP , 014426
