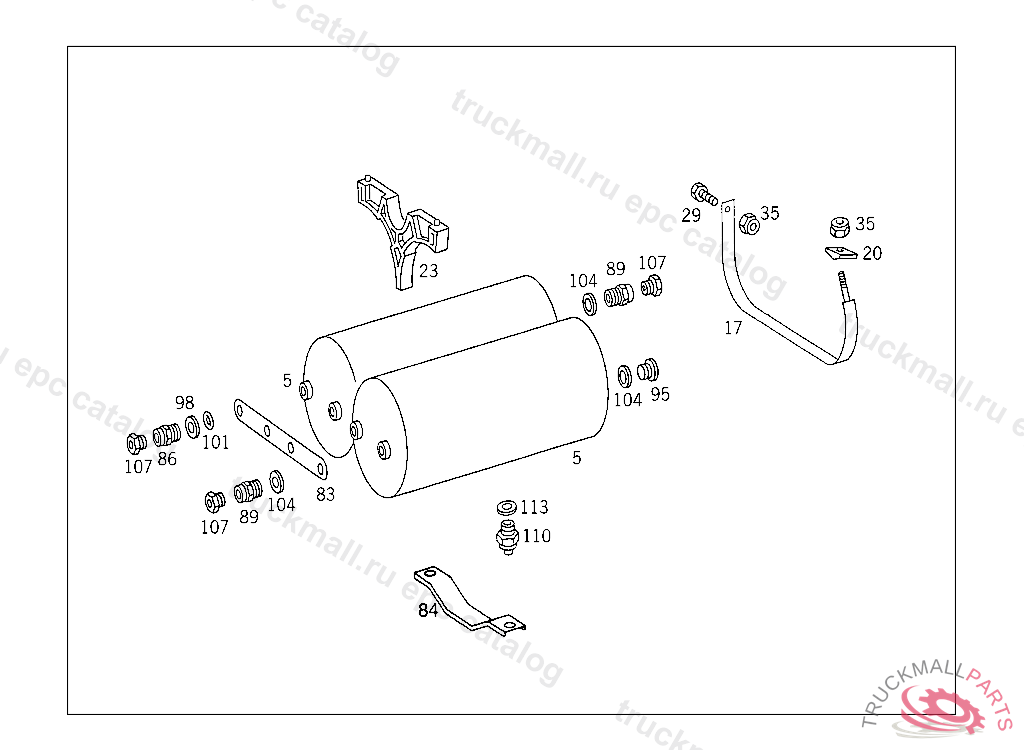

Поз.
Артикул
Описание
5
RESERVOIR30L,246 MM,12.5 BAR
5
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034321801, +001A6554320073
17
STRAP SERVICE BRAKE AIR RESERVOIR
20
BASE AIR RESERVOIR STRAP
23
BASE AIR RESERVOIR,STRAP
29
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
35
NUT STRAP TO BRACKET
35
NUT , Replaced By: N910113010000
83
LOCK (PROTECTION AGAINST TORSION),5 934167
84
LOCK (PROTECTION AGAINST TORSION),5 934168
86
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
86
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
89
FITTING LINE CONNECTION
95
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
95
SCREW PLUG , Replaced By: N000908022011
98
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
98
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
O-RING CHECK VALVE TO AIR RESERVOIR
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
107
SCREW. UNION SCREW LINE CONNECTION
107
SCREW. UNION SCREW LINE CONNECTION
107
SCREW. UNION SCREW , Replaced By: A0009973734
110
VALVE. DRAIN VALVE DRAIN
110
VALVE DRAIN, Replaced By: A0004322107
110
VALVE DRAIN, Replaced By: A0004322407
113
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
