Поз.
Артикул
Описание

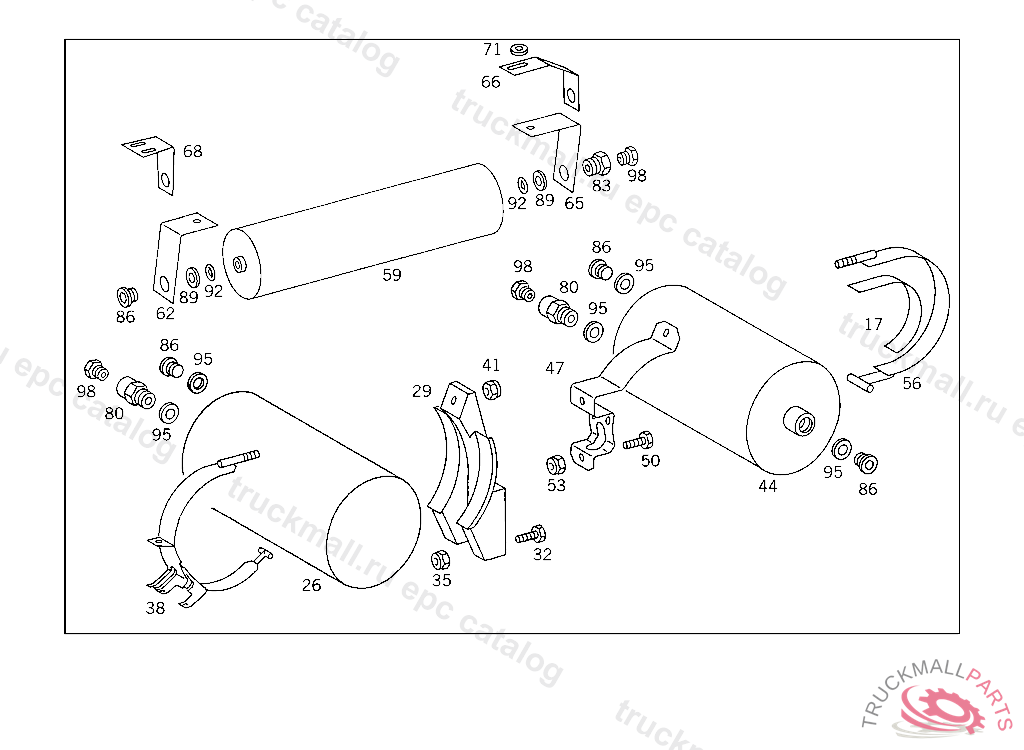

17
ADHESIVE TAPE60 MM, ORDER BY THE METER
26
RESERVOIR20L,276 MM,8.5 BAR
26
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
29
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
32
SCREW CLAMP TO BRACKET AND TO PIPE
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
NUT , Replaced By: N913004008001
38
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
41
NUT STRAP TO BRACKET
41
NUT , Replaced By: N910113010000
44
RESERVOIR10L,206 MM,8.5 BAR
44
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
47
BRACKET AIR RESERVOIR TO CROSS MEMBER
50
SCREW PIPE CLAMP
50
SCREW , Replaced By: N304017008021
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
NUT , Replaced By: N913004008001
56
STRAP AIR RESERVOIR TO BRACKET
56
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
59
RESERVOIR5.6L,114,3 MM,10 BAR
59
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
59
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
62
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
65
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
65
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
66
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
71
WASHER RADIATOR TO RUBBER MOUNTING
71
WASHER , Replaced By: N000125010532
80
FITTING LINE CONNECTION
80
FITTING LINE CONNECTION
83
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
86
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
86
SCREW PLUG , Replaced By: N000908022011
89
THRUST RING CHECK VALVE TO AIR RESERVOIR
89
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
92
O-RING CHECK VALVE TO AIR RESERVOIR
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
98
SCREW. UNION SCREW LINE CONNECTION
98
SCREW. UNION SCREW , Replaced By: A0009973734
98
SCREW. UNION SCREW LINE CONNECTION
