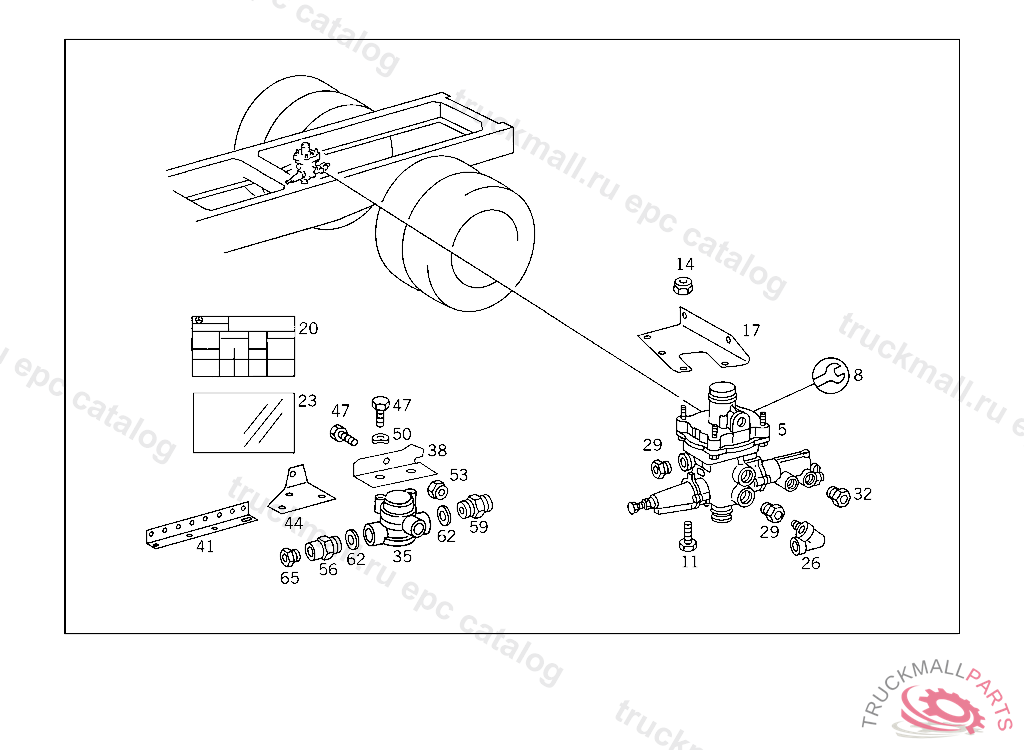

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATORWABCO
8
REPAIR KIT BRAKE POWER REGULATOR
11
SCREW BRACKET TO CROSS CONNECTION STRUT
11
SCREW , Replaced By: N304017008034
14
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
14
NUT , Replaced By: N913004008001
17
BRACKET BRAKE POWER REGULATOR, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6524291840
20
GUIDE SIGN
23
ADHESIVE FOIL GUIDE SIGN
26
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
29
SCREW. UNION SCREW LINE CONNECTION
32
SCREW. UNION SCREW LINE CONNECTION
32
SCREW. UNION SCREW , Replaced By: A0009973734
35
VALVE (REDUCTION VALVE)
35
VALVE (REDUCTION VALVE)
41
BRACKET TRAILING AXLE
44
BRACKET , NOT USED
47
SCREW PIPE CLAMP
47
SCREW , Replaced By: N304017008021
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
NUT , Replaced By: N913004008001
65
SCREW. UNION SCREW LINE CONNECTION
