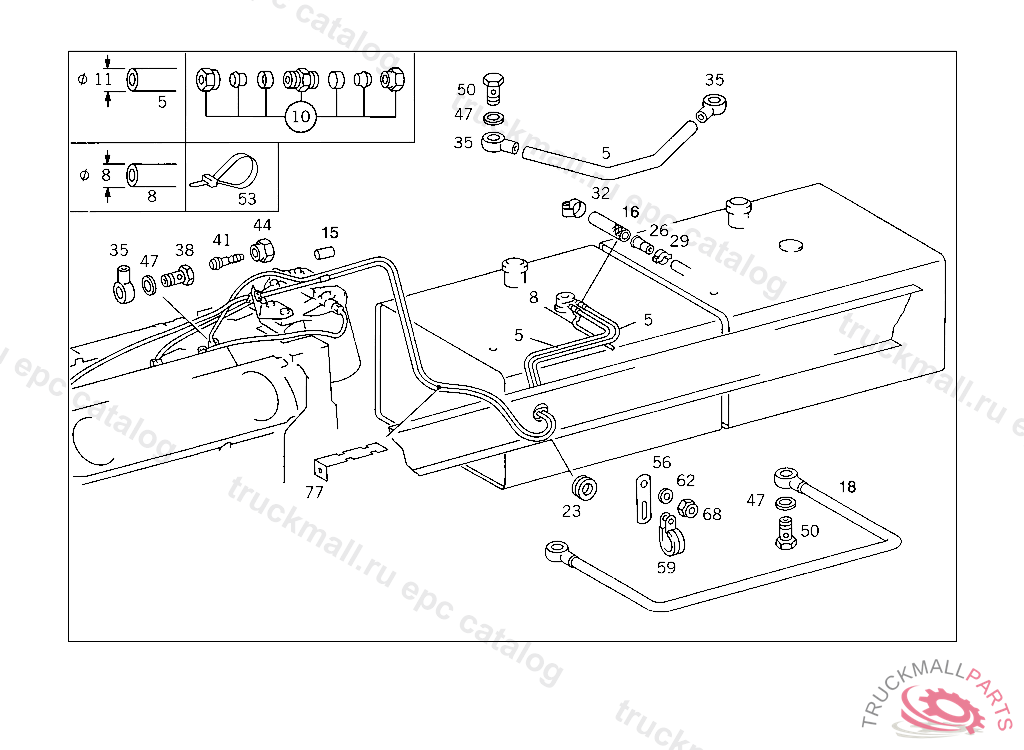

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
10
FITTING (PARTS KIT),LINE RUPTURE
15
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
16
HOSE LEAK LINE
18
LINE FUEL COMPENSATING
18
LINE , Replaced By: A3404701265
23
GROMMET FOR PASSAGE OF LINE
26
SLEEVE FEED
29
CLIP LEAK LINE
32
HOSE CLAMP FUEL LINE TO SENDER UNIT
32
CLAMP , Replaced By: A0059972790
35
BANJO UNION FEED
35
BANJO UNION FEED
35
BANJO UNION , Replaced By: N000000000363
38
HOLLOW SCREW FUEL LINE TO FEED PUMP
38
HOLLOW SCREW , Replaced By: N915036010108
41
FITTING RETURN
44
NUT. UNION NUT RETURN
47
SEAL RING FUEL LINE TO FEED PUMP
47
SEAL RING FUEL LINE TO FEED PUMP
50
HOLLOW SCREW HEATING CONNECTION
50
HOLLOW SCREW HEATING CONNECTION
53
LOOM TIE LINE MOUNTING
53
LOOM TIE LINE MOUNTING 280 MM
56
BRACKET OIL LINE MOUNTING,5 059970
59
CLAMP CABLE HARNESS MOUNTING
59
CLAMP , Replaced By: N000000001045
59
CLAMP , Replaced By: N916016010211
62
WASHER COVERING TO CAB
68
NUT PUMP TO BRACKET
68
NUT , Replaced By: N913004006001
77
BRACKET AT ENGINE
