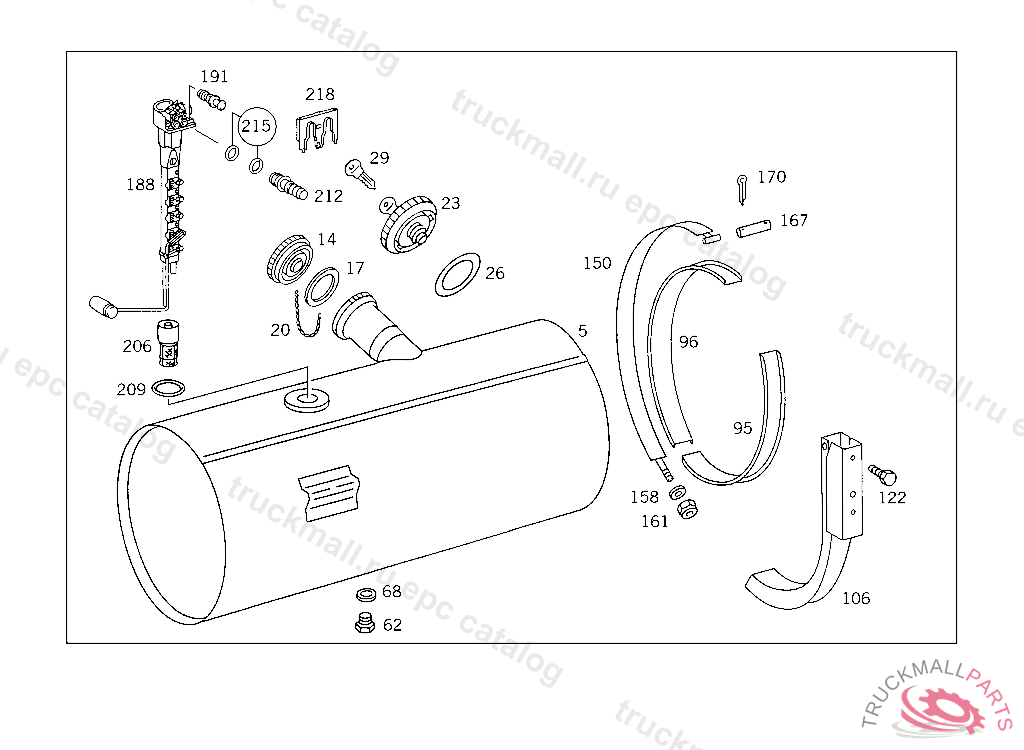

Поз.
Артикул
Описание
14
FILLER CAP
17
SEAL RING
20
CHAIN FILLER CAP
23
FILLER CAP
23
FILLER CAP
29
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
122
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
161
NUT STRAP TO SUPPORT
167
PIN STRAP TO SUPPORT
170
COTTER PIN STRAP TO SUPPORT
209
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
212
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
212
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
212
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
215
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
218
LOCK FUEL GAUGE SENDER UNIT CONNECTION
