Поз.
Артикул
Описание

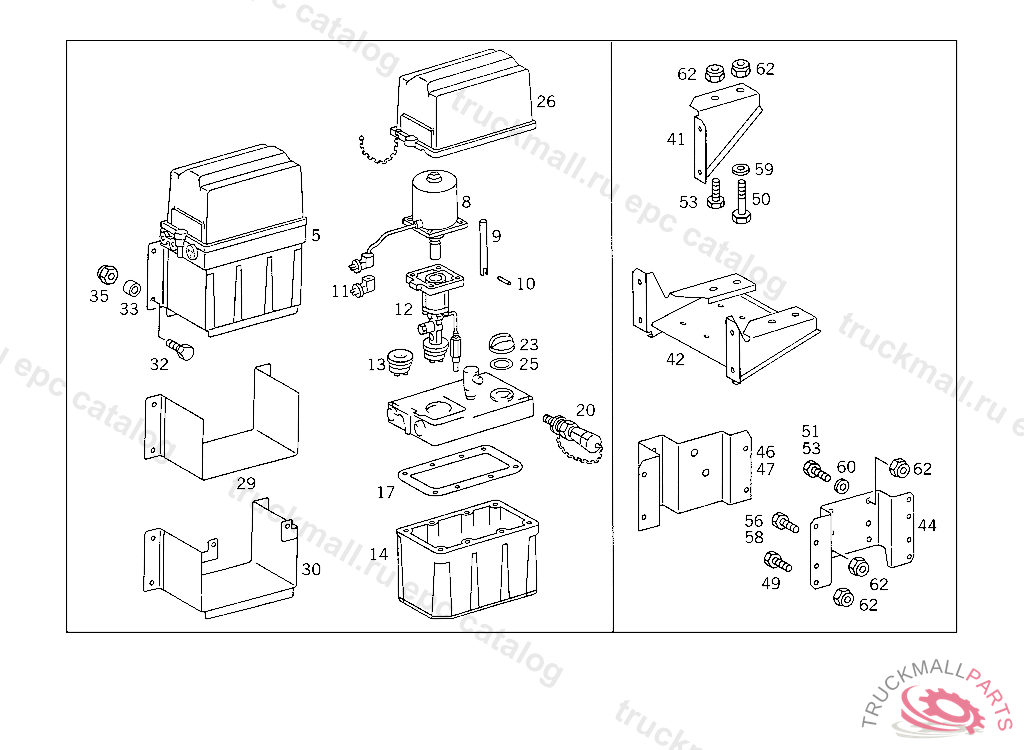

5
PUMP , Replaced By: A0005715401
5
PUMP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0005719501
5
PUMP WITH FILLER CAP BEKA-MAX
5
PUMP WITH FILLER CAP BEKA-MAX
5
PUMP , Replaced By: A0005715501
5
PUMP , Replaced By: A0005715401
5
PUMP WITH FILLER CAP BEKA-MAX
8
ELECTRIC MOTOR , Replaced By: A0005402488
8
ELECTRIC MOTORBEKA-MAX,TO 000 571 46 01, 54 01
8
ELECTRIC MOTOR , Replaced By: A0005715401
9
SHAFT , Replaced By: A0005710135
9
SHAFT
10
CLAMPING PIN2X12 MM
11
PLUG NOT CONFORMING TO DANGEROUS GOODS TRAFFIC REGULATIONS (GGVS)
12
SUCTION PIPE , Replaced By: A0005700256
12
SUCTION PIPE , Replaced By: A0005700256
12
SUCTION PIPE WITH GEARED PUMP BEKA-MAX,TO 000 571 4601, 5401
13
PUMP , Replaced By: A0005719401
13
PUMP WITH GEAR BEKA-MAX
14
RESERVOIR , Replaced By: A0005700204
14
RESERVOIR PUMP BEKA-MAX
17
SEAL RING , Replaced By: A0005710780
17
GASKETBEKA-MAX
20
VALVE , Replaced By: A0005711614
20
VALVE GREASE FILLING BEKA-MAX
23
COVER GREASE FILLING
25
GASKET , Replaced By: A1020180380
25
GASKET
26
COVER , Replaced By: A0005711703
26
COVER PUMP BEKA-MAX
29
RETAINING PLATE , Replaced By: A0005710316
29
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01, 49 01, 53 01
29
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01, 49 01, 53 01
30
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01,70 01
30
RETAINING PLATE PUMP BEKA-MAX,TO 000 571 54 01,70 01
32
SCREW , Replaced By: N910142008001
32
SCREW BRACKET TO BRACKET
32
SCREW BRACKET TO BRACKET
32
SCREW , Replaced By: N910142008009
32
SCREW CLAMP TO BRACKET,5 597426
32
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
32
SCREW BRACKET TO CROSS MEMBER M 8X45
32
SCREW , Replaced By: N000000001990
32
HEXALOBULAR BOLT. SCREW BRACKET TO CROSS MEMBER M 8X50
32
SCREW SENDER UNIT TO BRACKET M 8X60
32
SCREW STRAP TO BRACKET
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 14X14 MM
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 16X34 MM
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 16X21 MM
35
NUT BRACKET TO BRACKET
41
CONSOLE PUMP TO REAR CROSS MEMBER,LEFT, FOR SEMITRAILERS
44
CONSOLE , NOT FOR CHASSIS MODEL 652, Replaced By: A6525710338
44
CONSOLE PUMP TO FRAME SIDE MEMBER SA 26630/03/04/,26631/08, NOT FOR CHASSIS MODEL 652
46
CONSOLE FRONT
46
CONSOLE REAR
47
CONSOLE PUMP TO FRAME SIDE MEMBER SA 33020/01
49
SCREW , Replaced By: N910142008001
49
SCREW BRACKET TO BRACKET
50
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
50
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
51
SCREW , Replaced By: N304017008027
51
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
53
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
53
SCREW EXHAUST PIPE TO SIDE MEMBER
53
SCREW , Replaced By: N910105010011
53
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
56
SCREW , Replaced By: N910105014010
56
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
58
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 16X70
58
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
59
WASHER , Replaced By: N000125008443
59
WASHER EXHAUST MUFFLER TO STRAP
60
WASHER , Replaced By: N000125010532
60
WASHER RADIATOR TO RUBBER MOUNTING
62
NUT , Replaced By: N913004008001
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
NUT , Replaced By: N910113010000
62
NUT STRAP TO BRACKET
62
NUT PARTICLE FILTER M14
999
REINFORCEMENT CONSOLE TO REAR CROSS MEMBER
