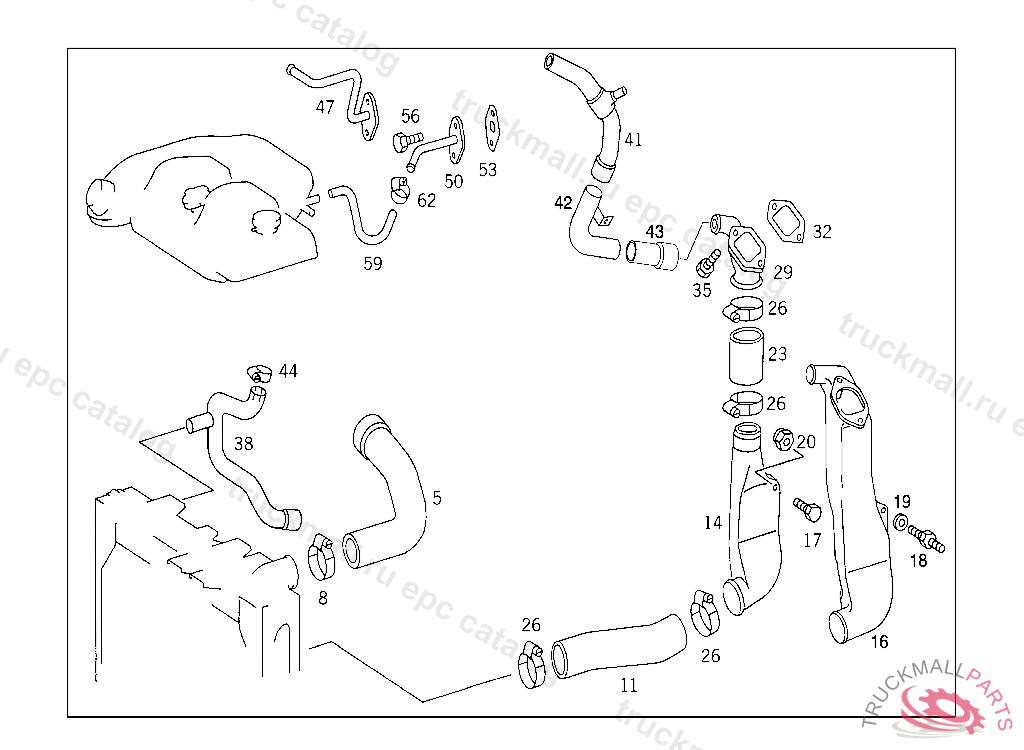

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
8
CLAMP , Replaced By: N000000000674
8
CLAMP HOSE 70-90X13 MM
11
HOSE FROM RADIATOR OUTLET TO WATER PUMP
11
HOSE FROM RADIATOR OUTLET TO WATER PUMP
14
PIPE ELBOW AT WATER PUMP,5 510518
16
PIPE ELBOW FOR SCREW FITTING
17
SCREW BRACKET TO FRAME SIDE MEMBER
18
PIN PIPE ELBOW TO BRACKET,K 023462
19
SPACER RING PIPE ELBOW TO BRACKET,K 023462
20
NUT STRAP TO BRACKET
20
NUT , Replaced By: N910113010000
23
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
26
CLAMP , Replaced By: N000000000674
26
CLAMP HOSE 70-90X13 MM
29
CONNECTOR FOR SCREW FITTING
32
GASKET CONNECTOR
32
GASKET CONNECTOR, Replaced By: A0002011180
32
GASKET CONNECTOR, Replaced By: A0002011280
32
GASKET , Replaced By: A4422010480
32
GASKET CONNECTOR, Replaced By: A0002011080
35
SCREW , Replaced By: N304017010051
35
SCREW
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
38
HOSE FROM EXPANSION TANK TO WATER PUMP
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
42
INTERMEDIATE PIECE FROM EXPANSION TANK TO WATER PUMP,K 096750
42
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
42
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
43
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
43
HOSE FROM EXPANSION TANK TO WATER PUMP,K 103232
44
CLAMP
44
CLAMP , Replaced By: N000000000667
44
CLAMP , Replaced By: N000000000670
44
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
47
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
53
GASKET. SEAL DE-AERATION PIPE TO ENGINE
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
59
HOSE DE-AERATION PIPE TO EXPANSION TANK
62
CLAMP AIR INTAKE
999
WASHER , Replaced By: A1894660751
