Поз.
Артикул
Описание

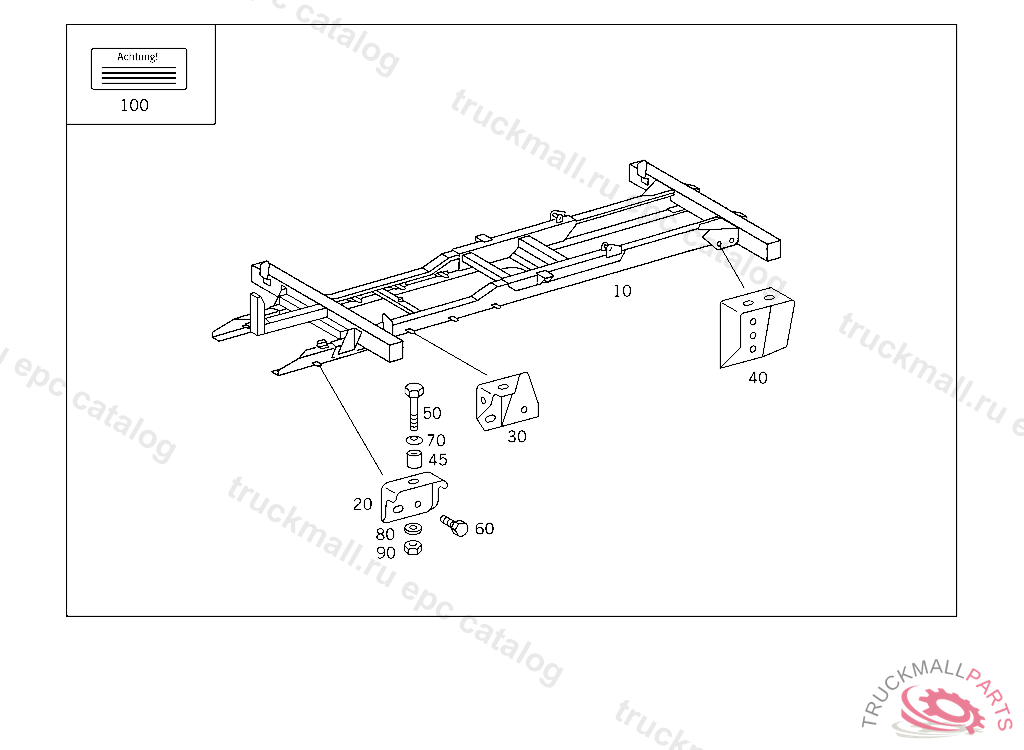

10
SUBSTRUCTURE (AUXILIARY FRAME)
10
SUBSTRUCTURE (AUXILIARY FRAME),K 100509
10
SUBSTRUCTURE (AUXILIARY FRAME)
10
SUBSTRUCTURE (AUXILIARY FRAME),K 100509
10
SUBSTRUCTURE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 100509, Replaced By: A6556103601
10
SUBSTRUCTURE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 100509, Replaced By: A6556102301
20
CONSOLE AT AUXILIARY FRAME,K 100510
20
CONSOLE AT SIDE MEMBER,K 100509
20
CONSOLE AT SIDE MEMBER
20
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
30
CONSOLE AT SIDE MEMBER
30
CONSOLE AT SIDE MEMBER
40
CONSOLE RIGHT REAR
40
CONSOLE LEFT REAR
45
SPACER TUBE FRONT SPRINGS TO FRONT AXLE
45
SPACER TUBE CONSOLE TO FRAME AND TO AUXILIARY FRAME,RESP.,K 100510
50
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
50
SCREW , Replaced By: N910105014010
50
SCREW , Replaced By: N308765014006
50
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
50
SCREW BEARING BRACKET TO FRAME
50
SCREW CONSOLE TO FRAME
50
SCREW SUPPORT TO SIDE MEMBER M14X40
50
SCREW SUPPORT TO SIDE MEMBER M 14X90
50
SCREW SUPPORT TO FRAME M 14X32,5 129244
50
SCREW CONSOLE TO FRAME AND TO AUXILIARY FRAME,RESP. M 14X1.5X130,K 100510
50
SCREW CONSOLE TO FRAME AND TO AUXILIARY FRAME,RESP. M 14X1.5X35
60
SCREW MOUNTING TO CONSOLE M 14X35
60
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
60
SCREW , Replaced By: N308676014014
60
SCREW , Replaced By: N308676014008
60
SCREW BRACKET TO CAB CONSOLE,K 035197
70
DISC SPRING CONSOLE TO FRAME AND TO AUXILIARY FRAME,RESP.
80
WASHER SUPPORT TO SIDE MEMBER
80
WASHER , Replaced By: N000125015019
80
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
80
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
80
WASHER PLATE TO SIDE MEMBER
90
NUT BRACKET TO SIDE MEMBER
90
NUT , Replaced By: N910113014001
90
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
90
NUT COMBINATION CYLINDER TO BEARING BRACKET
100
GUIDE SIGN TAIL BOARD
