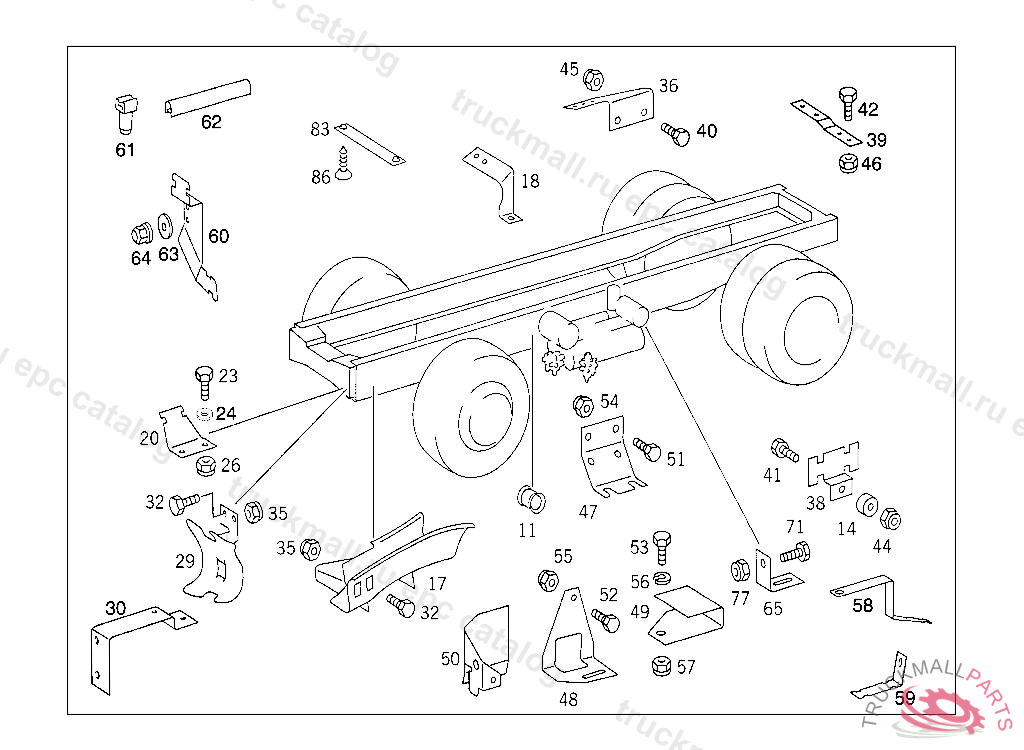

Поз.
Артикул
Описание
11
GROMMET LINE THRU FRAME
14
WASHER BRACKET TO LEFT SIDE MEMBER
17
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554200786
17
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554303310
17
BRACKET LEFT COMPRESSED AIR LINES
17
BRACKET RIGHT COMPRESSED AIR LINES, Replaced By: A6554303410
17
BRACKET RIGHT COMPRESSED AIR LINES
20
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
23
SCREW , Replaced By: N304017008021
23
SCREW PIPE CLAMP
24
WASHER , Replaced By: N000125008443
24
WASHER EXHAUST MUFFLER TO STRAP
26
NUT , Replaced By: N913004008001
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
29
BRACKET ACCORDION TUBE
29
BRACKET ACCORDION TUBE
32
SCREW , Replaced By: N304017012020
32
SCREW END PIECE TO EXHAUST PIPE M 12X30
35
NUT END PIECE TO EXHAUST PIPE
38
BRACKET BREATHER LINE TO SIDE MEMBER
41
SCREW , Replaced By: N304017008027
41
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
44
NUT , Replaced By: N913004008001
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
45
NUT BRACKET TO FRAME
48
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
49
BRACKET FRONT CROSS MEMBER
50
BRACKET LEFT SIDE MEMBER,FRONT
52
SCREW , Replaced By: N304017008027
52
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
52
SCREW BRACKET TO FRAME M 8X35
53
SCREW , Replaced By: N308676012012
53
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
55
NUT BRACKET TO BRACKET
56
LOCK WASHER FITTING TO BRACKET
57
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
60
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
60
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
61
BRACKET LINE TO FRONT PANEL
62
EDGE GUARD SECTION , Replaced By: A0019872272
62
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
63
WASHER , Replaced By: N009021005205
63
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
64
NUT BRACKET TO PIN
65
BRACKET FUEL LINE TO BELL HOUSING
71
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
77
NUT , Replaced By: N910113010000
77
NUT STRAP TO BRACKET
83
BRACKET , NOT USED, Replaced By: A6554314640
83
CLAMP , Replaced By: A6554314640
83
BRACKET BRACKET TO CONTROL ARM
86
SHEET METAL SCREW CABLE MOUNTING IN CABLE DUCT, NOT USED
999
BRAKE HOSE FROM BRAKE POWER REGULATOR TO COMBINATION CYLINDER,K 186394
999
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER,K 186394
