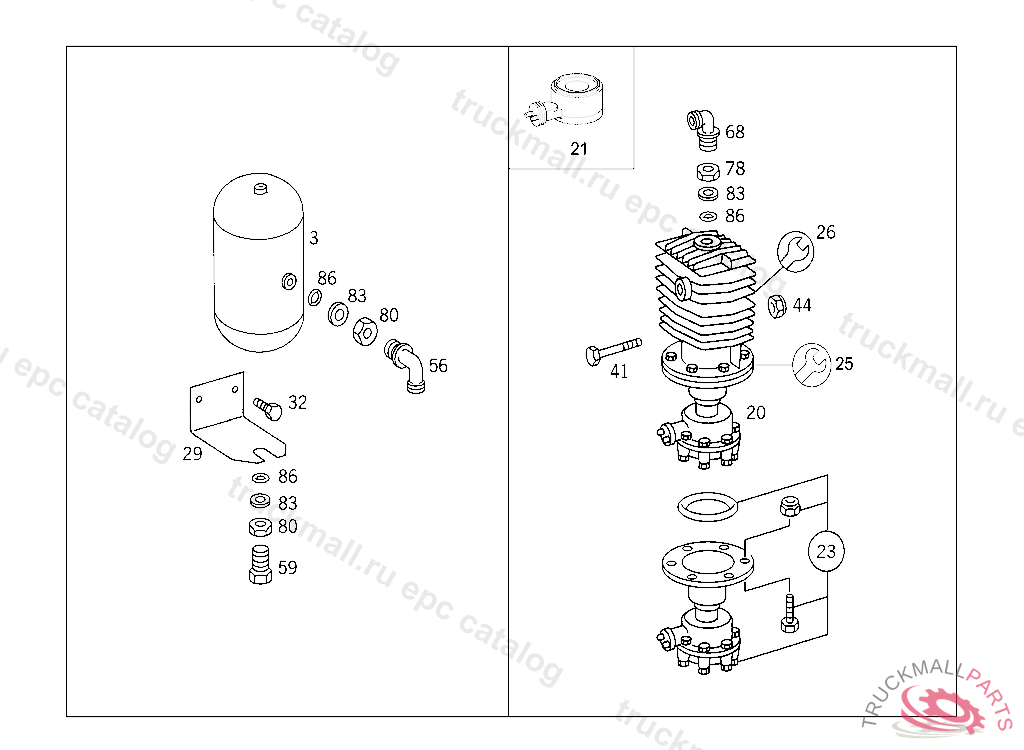

Поз.
Артикул
Описание
3
COMPRESSED AIR RESERVOIR AIR RESERVOIR 6 L
3
RESERVOIR6 L
20
SEPARATOR. RESERVOIR WATER SEPARATOR
20
SEPARATOR COMPRESSED AIR DAMPING
20
RESERVOIR WATER SEPARATOR
21
SOLENOID VALVE
23
VALVE (DRAIN VALVE) HALDEX
25
REPAIR KIT (DRAIN VALVE)
25
REPAIR KIT DRAIN VALVE TO A 005 432 74 01
26
REPAIR KIT GASKET KIT
29
BRACKET AIR RESERVOIR 6 L
32
SCREWM 10X20
41
HEXALOBULAR BOLT. SCREW , Replaced By: N910105008024
41
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
44
NUT HORN TO BRACKET M8
56
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
59
SCREW RESERVOIR TO BRACKET M 22X1.5X50
68
ELBOW FITTING AIR DEHYDRATOR,CONNECTIONS: 1,21
78
NUT , Replaced By: N080705026003
80
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
83
THRUST RING SUCTION LINE TO OIL PUMP
83
THRUST RING CHECK VALVE TO AIR RESERVOIR
83
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
86
SEAL RING LINE CONNECTION
86
O-RING CHECK VALVE TO AIR RESERVOIR
86
SEAL RING LINE CONNECTION
