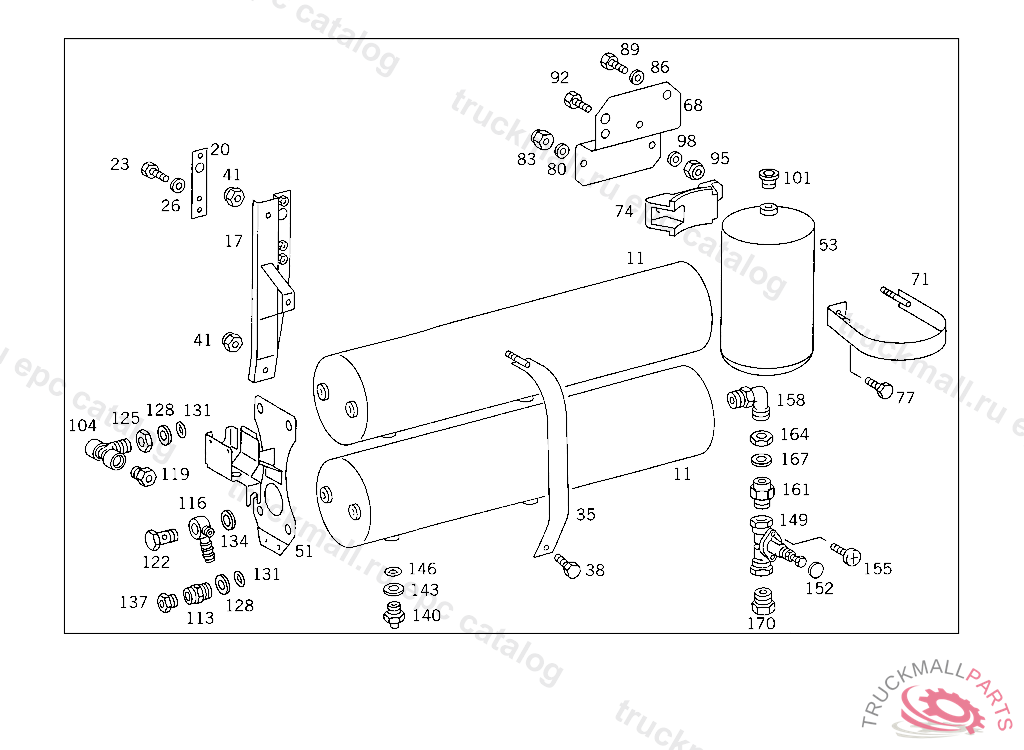

Поз.
Артикул
Описание
23
SCREW CONSOLE TO SIDE MEMBER
23
SCREW , Replaced By: N308676012026
23
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
26
WASHER BRACKET TO SIDE MEMBER
26
WASHER BRACKET TO FRAME
41
NUT , Replaced By: N910113010000
41
NUT STRAP TO BRACKET
53
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
101
SCREW PLUG , Replaced By: N000908022011
101
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
101
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
125
NUT CHECK VALVE TO AIR RESERVOIR
128
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
128
THRUST RING CHECK VALVE TO AIR RESERVOIR
131
O-RING CHECK VALVE TO AIR RESERVOIR
134
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
137
SCREW. UNION SCREW , Replaced By: A0009973734
137
SCREW. UNION SCREW LINE CONNECTION
137
SCREW. UNION SCREW LINE CONNECTION
140
VALVE DRAIN, Replaced By: A0004322407
140
VALVE DRAIN, Replaced By: A0004322107
140
VALVE. DRAIN VALVE DRAIN
140
VALVE. DRAIN VALVE DRAIN
140
VALVE DRAIN, Replaced By: A0004322107
143
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
143
THRUST RING CHECK VALVE TO AIR RESERVOIR
146
O-RING CHECK VALVE TO AIR RESERVOIR
