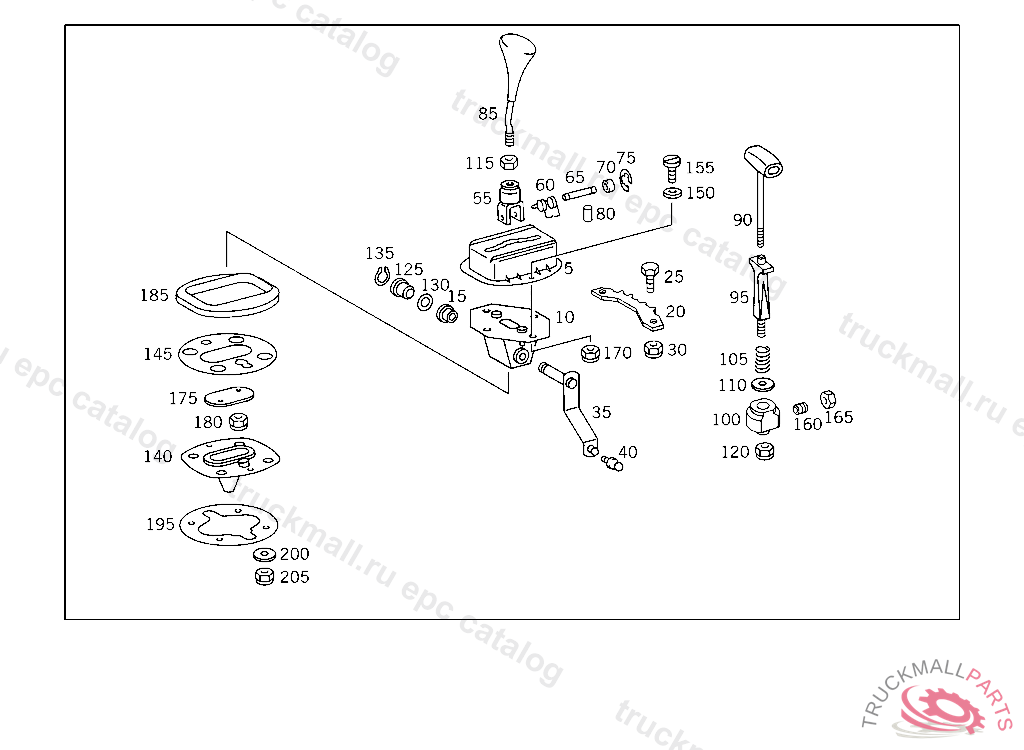

Поз.
Артикул
Описание
5
GUIDE PLATE SLOTTED GATE
5
GUIDE PLATE SLOTTED GATE,K 032408
5
GUIDE PLATE SLOTTED GATE,K 032407
5
GUIDE PLATE SLOTTED GATE,K 032407
5
GUIDE PLATE SLOTTED GATE
5
GUIDE PLATE SLOTTED GATE,K 032408
10
BRACKET SHIFT CASE,BOTTOM,K 032408
10
BRACKET SHIFT CASE,BOTTOM,K 032407
10
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6732601862
15
BUSHING
20
SLOTTED GATE
25
SCREW , Replaced By: N304017006012
25
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
30
NUT PUMP TO BRACKET
30
NUT , Replaced By: N913004006001
35
SHIFT LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6732601739
35
SHIFT LEVER BOTTOM,K 032408
35
SHIFT LEVER BOTTOM,K 032407
40
BALL PIVOT , Replaced By: A3129910120
40
BALL PIVOT LEVER
55
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6732601662
55
BRACKET SELECTOR LEVER,K 032408
55
BRACKET SELECTOR LEVER,K 032407
60
SPRING BRACKET TO SHIFT LEVER,K 032407
65
PIN BRACKET TO SHIFT LEVER,K 032407
70
BUSHING BRACKET TO SHIFT LEVER,K 032407
75
LOCK BRACKET TO SHIFT LEVER,K 032407
80
CLAMPING SLEEVE CRANK TO BUSHING
85
SHIFT LEVER (SELECTOR LEVER),K 032407
90
KNOB (SELECTOR LEVER),K 032408
95
KNOB (SELECTOR LEVER),K 032408
100
SLOTTED GATE ,K 032408
105
SPRING ,K 032408
110
SPACER WASHER ,K 032408
115
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
115
NUT , Replaced By: N000934010015
115
NUT , Replaced By: N308673010000
120
NUT SELECTOR LEVER TO BRACKET,K 032408
125
BUSHING SHIFT LEVER TO BRACKET, DISCONTINUED,PART IS NO LONGER REQUIRED
130
SPACER WASHER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6732670052
130
SPACER WASHER , Replaced By: A2012671376
135
LOCK STOP TO BEARING BRACKET
135
LOCK RING , Replaced By: A0079942041
140
HOUSING , Replaced By: A6732600172
140
SHIFT CASE
145
SHIM SHIFT CASE TO SLOTTED GATE,K 032407
145
SHIM SHIFT CASE TO SLOTTED GATE,K 032408
150
SPACER WASHER SHIFT CASE TO SLOTTED GATE
155
SCREW SHIFT CASE TO SLOTTED GATE
160
HEADLESS SETSCREW SHIFT CASE TO SLOTTED GATE
165
NUT ATTACHMENT, MARKER LIGHT
165
NUT , Replaced By: N913002004001
170
NUT , Replaced By: N913004006001
170
NUT PUMP TO BRACKET
175
COVER SHIFT LEVER BEARING
180
NUT PUMP TO BRACKET
180
NUT , Replaced By: N913004006001
185
BOOT SHIFT CASE TO SLOTTED GATE
195
WASHER , Replaced By: A6732600052
195
GASKET , Replaced By: A6732600052
195
WASHER SHIFTING HEAD TO CAB
200
SPACER WASHER SHIFTING HEAD TO CAB
205
NUT , Replaced By: N913004008001
999
STOP FULL THROTTLE
999
WIRE CABLE GEARSHIFT MECHANISM
999
BOOT , Replaced By: A6732600172
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640
999
BRACKET ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6744913641, +001A6744913541, +002N000933010145, +002N007349010003, +002N913004010008
999
BRACKET FRONT EXHAUST PIPE TO BRACKET,5 528483
999
WIRE CABLE GEARSHIFT MECHANISM
999
BRACKET FRONT EXHAUST PIPE TO BRACKET,5 528483
999
NUT , Replaced By: N913004006001
