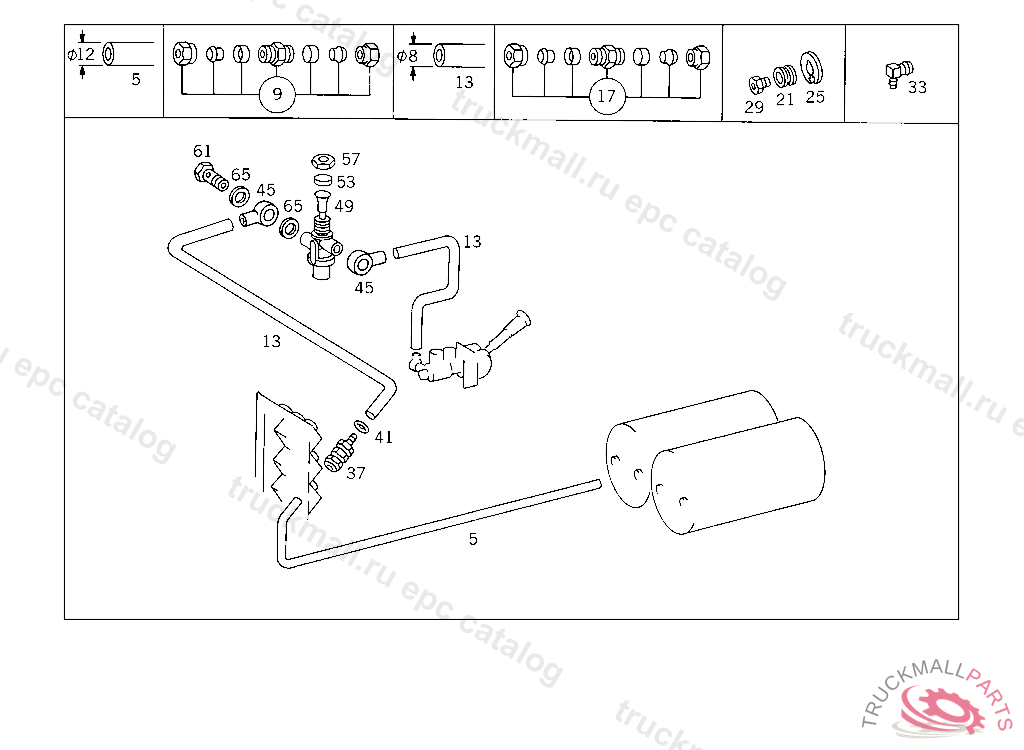

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872827
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
9
FITTING (PARTS KIT),LINE RUPTURE
13
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
17
FITTING (PARTS KIT),LINE RUPTURE
21
LOCK RING LINE CONNECTION
21
SEAL RING , Replaced By: A0009940747
21
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
25
LOCK , Replaced By: A0009945448
25
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
25
LOCK LINE CONNECTION
29
SCREW. UNION SCREW LINE CONNECTION
29
SCREW. UNION SCREW , Replaced By: A0009973734
29
SCREW. UNION SCREW LINE CONNECTION
33
ELBOW FITTING , Replaced By: A0049905371
33
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
37
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
41
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
45
BANJO UNION HEATING CONNECTION,K 169122
49
VALVE TWO-WAY,4 685151
53
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
57
NUT STARTER PILOT PUMP TO WINDOW SILL
61
HOLLOW SCREW FUEL LINE TO FEED PUMP
61
HOLLOW SCREW , Replaced By: N915036010108
65
SEAL RING FUEL LINE TO FEED PUMP
999
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
999
FITTING PARKING BRAKE VALVE
