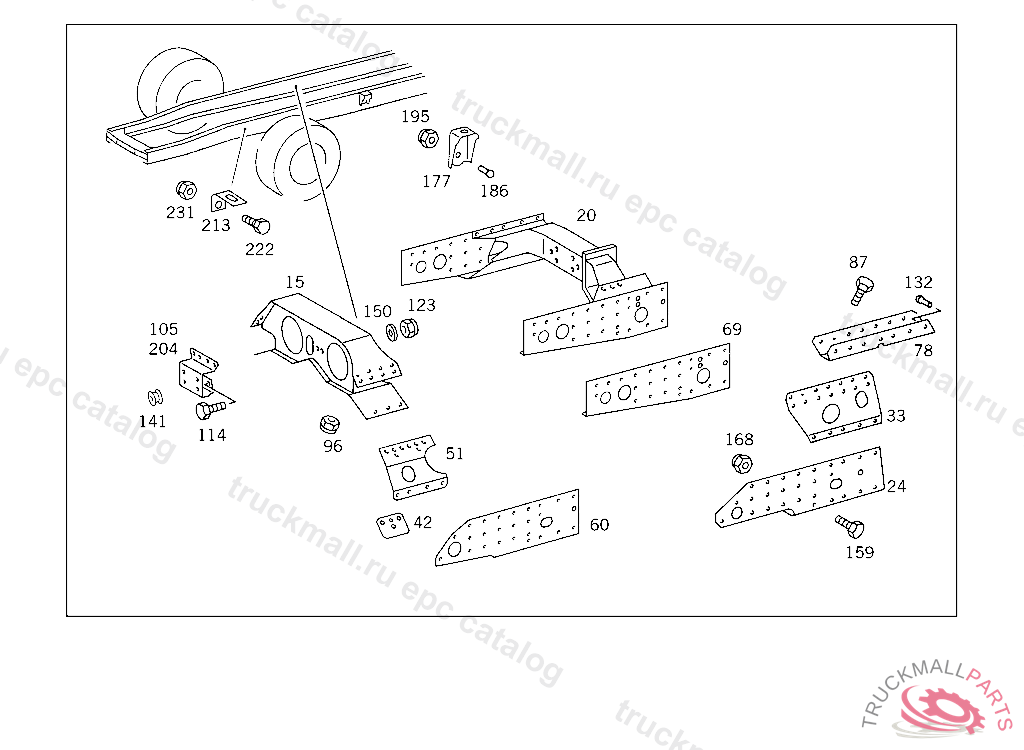

Поз.
Артикул
Описание
15
CROSS MEMBER TRANSMISSION NO.2
15
CROSS MEMBER TRANSMISSION NO.2
15
CROSS MEMBER TRANSMISSION NO.2
15
CROSS MEMBER , Replaced By: A6763100437
20
CROSS MEMBER TRANSMISSION
20
CROSS MEMBER TRANSMISSION NO.5
20
CROSS MEMBER TRANSMISSION
20
CROSS MEMBER TRANSMISSION
24
REINFORCEMENT LEFT BOTTOM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 567813
24
REINFORCEMENT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 567813, Replaced By: A6763111960
24
REINFORCEMENT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 567813, Replaced By: A6763111860
24
REINFORCEMENT RIGHT BOTTOM
33
REINFORCEMENT , Replaced By: A6763110860
33
REINFORCEMENT RIGHT TOP
33
REINFORCEMENT LEFT TOP
42
REINFORCEMENT LEFT AND RIGHT
51
REINFORCEMENT LEFT
51
REINFORCEMENT RIGHT
60
REINFORCEMENT LEFT
60
REINFORCEMENT RIGHT
60
REINFORCEMENT LEFT
69
REINFORCEMENT RIGHT
78
ANGLE RIGHT TOP, TO BE ADAPTED DURING ASSEMBLY
78
ANGLE LEFT TOP
78
ANGLE RIGHT
78
ANGLE LEFT
78
ANGLE LEFT TOP
78
ANGLE , Replaced By: A6763120752
87
SCREW , Replaced By: N308676012026
87
SCREW , Replaced By: N304017010047
87
SCREW , Replaced By: N910105010011
87
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
87
SCREW CONNECTOR TO REAR SHIFTING ROD
87
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
87
SCREW CONSOLE TO SIDE MEMBER
87
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
87
SCREW EXHAUST PIPE TO BRACKET
87
SCREW END PIECE TO EXHAUST PIPE M 10X25
87
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
87
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
96
NUT STRAP TO SUPPORT
96
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
96
NUT SUPPORT TO SIDE MEMBER
96
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
96
NUT , Replaced By: N913023010002
105
BRACKET P.T.O.
105
BRACKET P.T.O.,5 311228
114
SCREW BRACKET TO FRAME M 12X35
123
NUT , Replaced By: N910113012003
123
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
132
RIVET REAR CROSS MEMBER 12X42 MM
141
GROMMET I.D., / O.D., 72/88 MM
150
WASHER BRACKET TO FRAME
159
SCREW BRACKET TO SIDE MEMBER M 12X28
159
SCREW SUPPORT TO SIDE MEMBER
168
NUT , Replaced By: N910113012003
168
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
177
CONSOLE BODY MOUNTING
186
RIVET REINFORCEMENT TO SIDE MEMBER
186
RIVET REAR CROSS MEMBER 12X42 MM
186
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
195
NUT REINFORCEMENT TO BRACKET
195
NUT , Replaced By: N910113010003
204
BRACKET P.T.O.
213
BRACKET , Replaced By: A6735460443
213
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
222
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
222
SCREW BRACKET TO FRAME M 12X35
222
SCREW , Replaced By: N308676012026
231
NUT SUPPORT TO SIDE MEMBER
231
NUT , Replaced By: N910113012003
231
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
CROSS MEMBER , Replaced By: A6753120011, +001A6753112460, +001A6753112560, +002A6763111360, +001A6763111460, +001A6763111560, +001A6763121052, +001A6763121152
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBER TRANSMISSION
999
CROSS MEMBER TRANSMISSION NO.2, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
999
CROSS MEMBER
999
CROSS MEMBER
