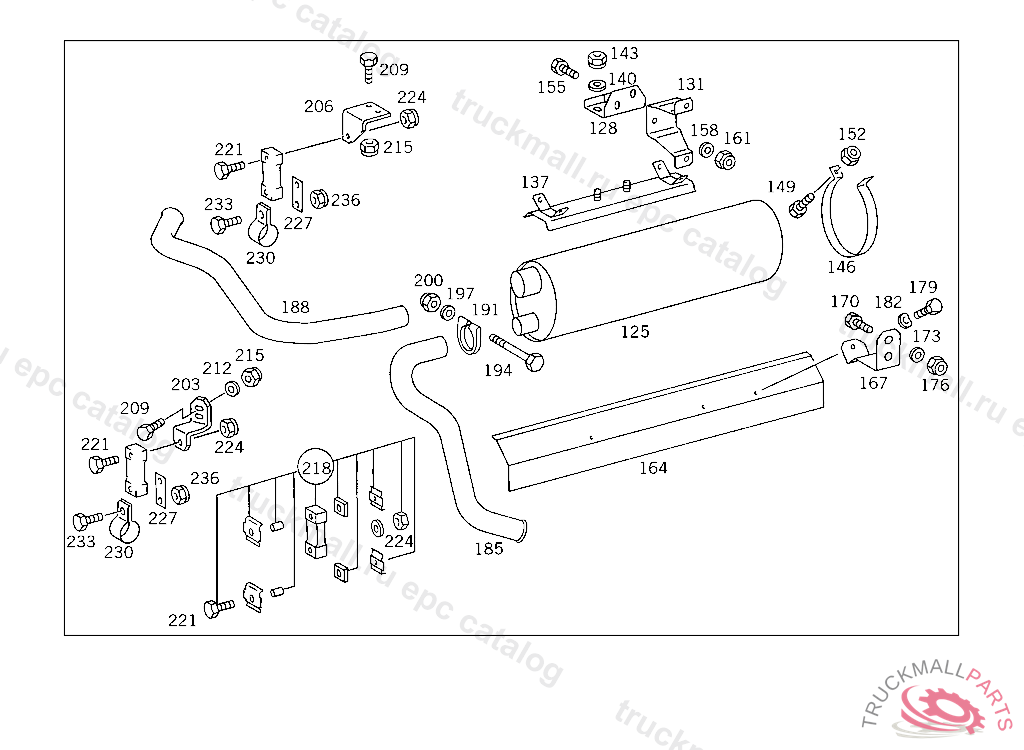

Поз.
Артикул
Описание
125
EXHAUST MUFFLER
128
BRACKET ,5 999999K 000001 - K 006420N 817441 - N ??????, Replaced By: A6744904640, +001A6734901734
128
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
128
BRACKET EXHAUST MUFFLER TO BRACKET
131
BRACKET EXHAUST MUFFLER
131
BRACKET ,5 4783245 999999K 000001 - K 006420N 817441 - N ??????, Replaced By: A6744916241
131
BRACKET , Replaced By: A6744904440
137
SUPPORT ,5 999999K 000001 - K 006420N 817441 - N 817938, Replaced By: A6734901734, +001A6744904640
137
SUPPORT EXHAUST MUFFLER TO BRACKET
140
WASHER , Replaced By: N007349010007
140
WASHER STRUT TO CROSS MEMBER
143
NUT , Replaced By: N910113010000
143
NUT STRAP TO BRACKET
146
STRAP EXHAUST MUFFLER TO SIDE MEMBER
146
BRACKET , Replaced By: A6744914541
149
SCREW BRACKET TO SIDE MEMBER
152
NUT STRAP TO BRACKET
152
NUT , Replaced By: N910113010000
155
SCREW , Replaced By: N304017010002
155
SCREW BRACKET TO SIDE MEMBER
158
WASHER , Replaced By: N007349010007
158
WASHER STRUT TO CROSS MEMBER
161
NUT , Replaced By: N910113010000
161
NUT STRAP TO BRACKET
164
PROTECTIVE PLATE , DISCONTINUED,PART IS NO LONGER REQUIRED
167
BRACKET HEAT SHIELD TO FRAME, DISCONTINUED,PART IS NO LONGER REQUIRED
170
SCREW CONSOLE TO SIDE MEMBER
173
WASHER BRACKET TO FRAME
176
NUT SUPPORT TO SIDE MEMBER
179
SCREW REDUCTION VALVE TO BRACKET
179
SCREW , Replaced By: A0079900801
182
SPRING WASHER , Replaced By: N000137008212
182
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
185
REAR EXHAUST PIPE (TAIL PIPE)
185
REAR EXHAUST PIPE ,5 743553-5 8000005 803730
185
REAR EXHAUST PIPE ,5 7435535 803730, Replaced By: A6764928004
188
REAR EXHAUST PIPE ,5 743552, Replaced By: A6794920104
188
REAR EXHAUST PIPE (TAIL PIPE),K 079963
191
CLAMP BRACKET TO EXHAUST PIPE
194
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
194
SCREW , Replaced By: N304014008021
197
WASHER , Replaced By: N000125008443
197
WASHER EXHAUST MUFFLER TO STRAP
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
NUT , Replaced By: N913004008001
203
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
206
BRACKET TAIL PIPE,FRONT,5 7435525 800001-5 803729
209
SCREW PIPE CLAMP
209
SCREW BRACKET TO CROSS CONNECTION STRUT
209
SCREW , Replaced By: N304017008021
209
SCREW , Replaced By: N304017008034
212
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
215
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
215
NUT , Replaced By: N913004008001
218
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
221
SCREWM 8X40
224
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
224
NUT , Replaced By: N913004008001
227
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
230
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
230
CLAMP , Replaced By: N071555090502
233
SCREW , Replaced By: N304017010002
233
SCREW BRACKET TO SIDE MEMBER
236
NUT , Replaced By: N910113010000
236
NUT STRAP TO BRACKET
999
SCREW COVERING TO SUPPORT
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET FUEL LINES TO TRANSMISSION
999
PROTECTIVE PLATE , NOT USED
999
WASHER , Replaced By: N006902011100
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET , Replaced By: A3524920141
999
BRACKET EXHAUST LINE FLEXIBLE METAL TUBE
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
BRACKET BRACKET TO FILTER BRACKET
999
WASHER , Replaced By: N006902011102
999
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
999
WASHER HEAT SHIELD TO BRACKET
999
NUT , Replaced By: N910113010000
