Поз.
Артикул
Описание
5
5
5
8

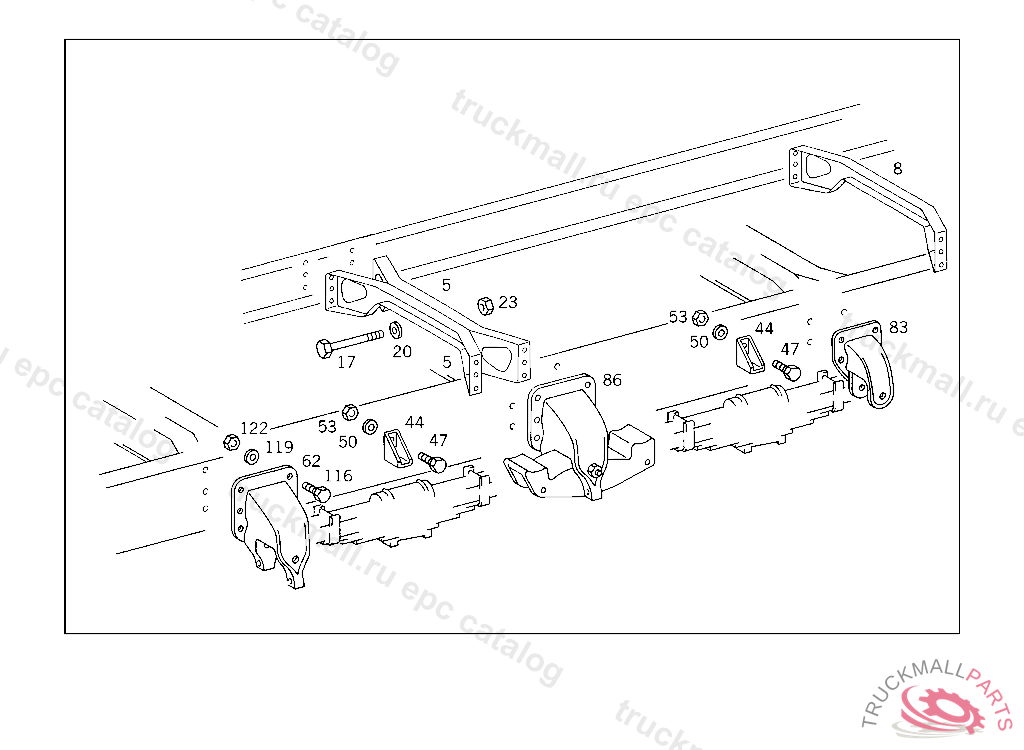

CROSS MEMBER (REAR CROSS MEMBER)
17
PART NAME MISSING SCREW, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
17
PART NAME MISSING SCREW
17
PART NAME MISSING SCREW
20
PART NAME MISSING WASHER
23
NUT BRAKE ANCHOR PLATE TO STEERING KNUCKLE 1/2-20 FG8
23
PART NAME MISSING NUT 1/2-13
44
47
PART NAME MISSING SCREW 5/8-11
50
PART NAME MISSING WASHER 5/8-1.312-.149 Z
53
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
62
62
83
86
116
PART NAME MISSING SCREW
119
PART NAME MISSING WASHER 5/8-1.312-.149 Z
122
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
