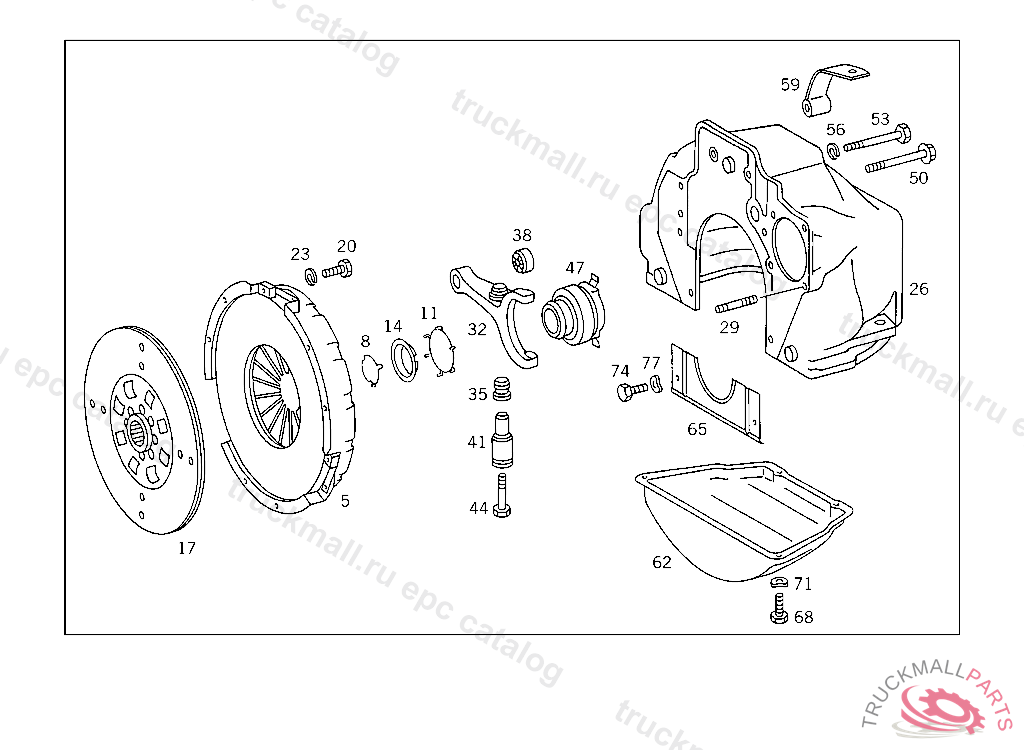

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE
17
CLUTCH DISC
17
CLUTCH DISC
17
CLUTCH DISC
20
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
23
LOCK WASHER RAIL TO BATTERY SUPPORT
26
BELL HOUSING
29
STUD , Replaced By: A0009904805
29
STUD BELL HOUSING
32
RELEASE LEVER
35
BUSHINGTO 688 250 00 13
38
BEARING RELEASE LEVER,5 418252
41
SHAFT RELEASE LEVER
44
SCREW CLUTCH TO FLYWHEEL
47
RELEASE BEARING
50
SCREW , Replaced By: A0029906804
53
SCREW BELL HOUSING TO CYLINDER CRANKCASE M 12X150
56
LOCK WASHER FITTING TO BRACKET
59
BRACKET BELL HOUSING TO CYLINDER CRANKCASE
62
BELL HOUSING LOWER PART,189328
62
BELL HOUSING LOWER PART
65
PROTECTIVE PLATE BELL HOUSING,5 332727 SEAL DURING ASSEMBLY
68
SCREW , Replaced By: N910106006006
71
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
74
SCREW , Replaced By: N910106006006
77
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
