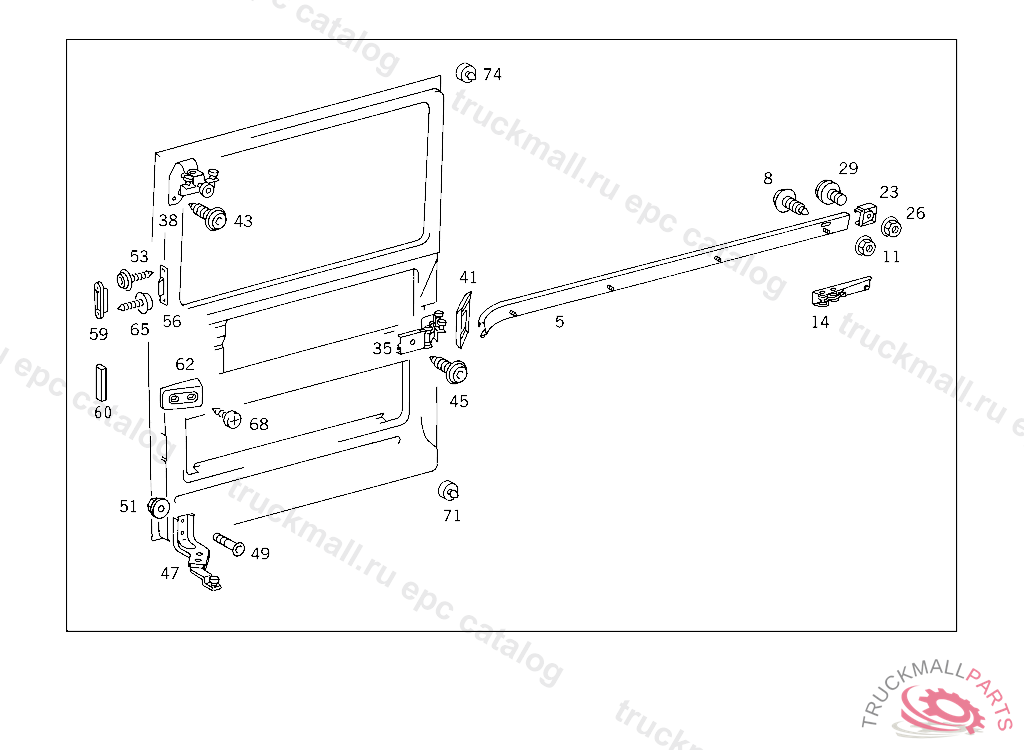

Поз.
Артикул
Описание
5
RAIL RIGHT, TO BE ADAPTED DURING ASSEMBLY
5
RAIL , Replaced By: A9017600627
8
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0009849729
8
SCREW BRACKET TO SUPPORT M 6X15
11
NUT , Replaced By: N910112006001
14
ADJUSTER. CATCH LEFT
14
CATCH , Replaced By: A9017600188
14
CATCH RIGHT
23
CAP RIGHT
26
NUT COVERING TO RAIL
29
BOLT MOUNTING SHIFTING SHAFT AT FLOOR
35
DOOR SLIDE MECHANISM RIGHT
35
DOOR SLIDE MECHANISM , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9017601247
35
DOOR SLIDE MECHANISM , Replaced By: A9017601347
38
DOOR SLIDE MECHANISM RIGHT TOP
41
SEAL DOOR SLIDE MECHANISM TO DOOR
43
SCREW , Replaced By: N000000002575
45
SCREW DOOR SLIDE MECHANISM TO DOOR
47
BRACKET RIGHT BOTTOM
49
SCREW BRACKET TO BRACKET
51
NUT
53
SCREW , Replaced By: N000000002575
56
DETENT TOP AND BOTTOM,LEFT AND RIGHT
59
SLIDE , Replaced By: A9017660161
59
SLIDE
60
BUFFER
62
STOP , Replaced By: A6907600029
65
SCREW , Replaced By: N000000002202
68
SCREW BRACKET MOUNTING
71
RUBBER BUFFER AT C-PILLAR,BOTTOM
74
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1119871540
